Transform your FPV experience with the RCINPOWER GTS V3 1003 10000/18000/22000KV Brushless Motor. This motor boasts impressive power, speed, and torque and will leave you stunned.

Dare to go faster, farther, and higher than you ever have! Choose between orange with gold accents or blue with pink accents. This motor comes with a a solderless motor connector.

We offer 4 types of kv motors and you can purchase all of them here! Check out our vast motor selection and all our RCinpower products!

RCinpower GTS V3 1003 Motor Test Data

rcinpower gts v3 1003 micro fpv brushless motor 10000kv teal pink gold orange test data chart
rcinpower gts v3 1003 micro fpv brushless motor 14000kv teal pink gold orange test data chart
rcinpower gts v3 1003 micro fpv brushless motor 18000kv teal pink gold orange test data chart
rcinpower gts v3 1003 micro fpv brushless motor 22000kv teal pink gold orange test data chart

Package Includes

  • 1x RCinpower V3 1003 10000/18000/22000KV Motor
  • 1x Motor Accessories

YouTube Influencer Review Results

Additional information

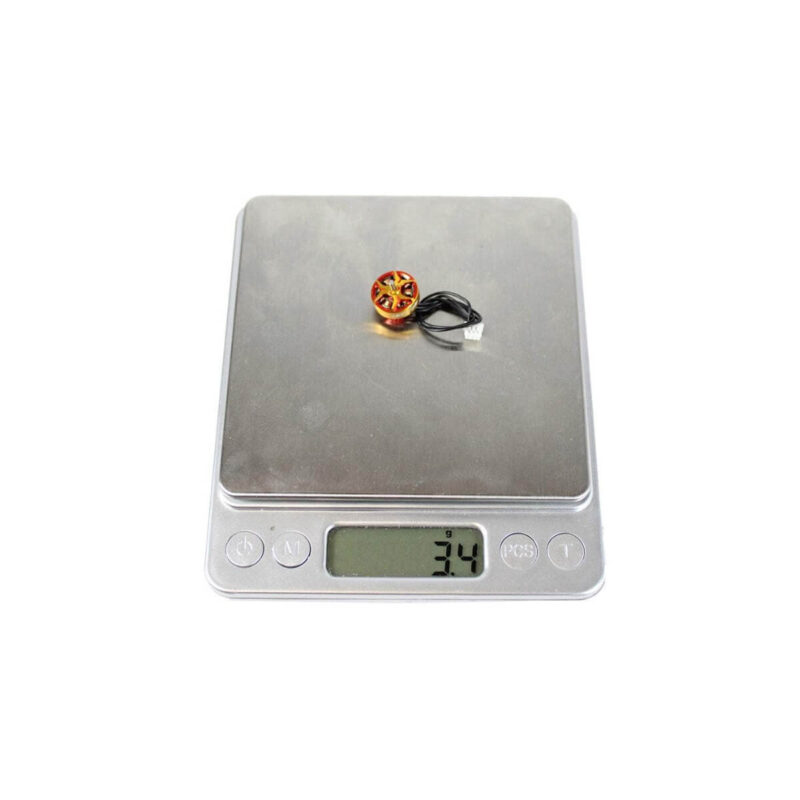

Weight 3.45 g
Brand: No selection

RCinpower
Color: No selection

Gold/Orange, Teal/Pink
Motor KV: No selection

10000, 14000, 18000, 22000

Specs

GTS V3 1003 10000KV Motor

  • KV: 10000
  • Configu-ration: 9N12P
  • Stator Diamter: 10mm
  • Stator Length: 3mm
  • Shaft Diameter: 1.5mm
  • Motor Dimension (Dia.*Len): Φ 13.5*9.2mm
  • Weight (g): 3.45 (5cm wire)
  • Idle current (5)@5V(A): 0.8
  • No.of Cells (Lipo): 1-2S
  • Max Continuous Power (W) 3S: 85
  • Internal Resistance: 162mΩ
  • Max Current (3S): 11.5A
  • Max Efficiency Current: (1-3A)>85%

GTS V3 1003 14000KV Motor

  • KV: 14000
  • Configu-ration: 9N12P
  • Stator Diamter: 10mm
  • Stator Length: 3mm
  • Shaft Diameter: 1.5mm
  • Motor Dimension (Dia.*Len): Φ 13.5*9.2mm
  • Weight (g): 3.45 (5cm wire)
  • Idle current (5)@5V(A): 0.9
  • No.of Cells (Lipo): 1-2S
  • Max Continuous Power (W) 3S: 76.2
  • Internal Resistance: 99mΩ
  • Max Current (3S): 10.3A
  • Max Efficiency Current: (1-3A)>85%

GTS V3 1003 18000KV Motor

  • KV: 18000
  • Configu-ration: 9N12P
  • Stator Diamter: 10mm
  • Stator Length: 3mm
  • Shaft Diameter: 1.5mm
  • Motor Dimension (Dia.*Len): Φ 13.5*9.2mm
  • Weight (g): 3.45 (5cm wire)
  • Idle current (5)@5V(A): 1.3
  • No.of Cells (Lipo): 1S
  • Max Continuous Power (W) 3S: 54
  • Internal Resistance: 68mΩ
  • Max Current (3S): 14.6A
  • Max Efficiency Current: (1-3A)>85%

GTS V3 1003 22000KV Motor

  • KV: 22000
  • Configu-ration: 9N12P
  • Stator Diamter: 10mm
  • Stator Length: 3mm
  • Shaft Diameter: 1.5mm
  • Motor Dimension (Dia.*Len): Φ 13.5*9.2mm
  • Weight (g): 3.45 (5cm wire)
  • Idle current (5)@5V(A): 1.5
  • No.of Cells (Lipo): 1S
  • Max Continuous Power (W) 3S: 67
  • Internal Resistance: 46mΩ
  • Max Current (3S): 18.1A
  • Max Efficiency Current: (1-3A)>84%
