CaddxFPV Walksnail WS-M181 GPS w/ 5883 Compass
$16.89

Free worldwide shipping on all orders over $90

  • Licensed by top brands to ensure product quality
  • Hassle-free 60 days warranty
  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch
Guaranteed Safe Checkout

Featuring the u-blox M10 platform UBX-M10050 GNSS chipset and BUILT-IN QMC5883 MAG, the module offers stronger performance and more accurate positioning.

It offers six positioning modes, providing more flexible combinations (default GPS + GLONASS + BDS multi-mode positioning).The measured maximum number of search sats can cover 32pcs.

Note: Because the GPS chip is a new 10th generation chip, the flight controller needs to flash firmware Betaflight  4.3.0 and above, and the firmware below 4.29 uses the NMEA protocol.

Package Includes

  • 1x CaddxFPV Walksnail WS-M181 GPS w/ Compass (10th Gen)

Additional information

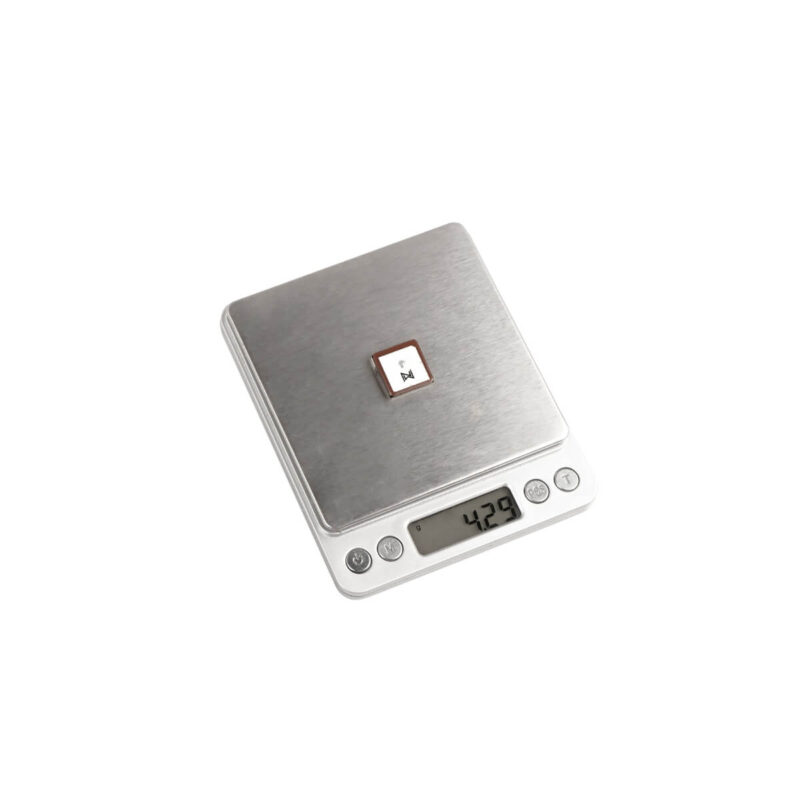

Weight 4.3 g

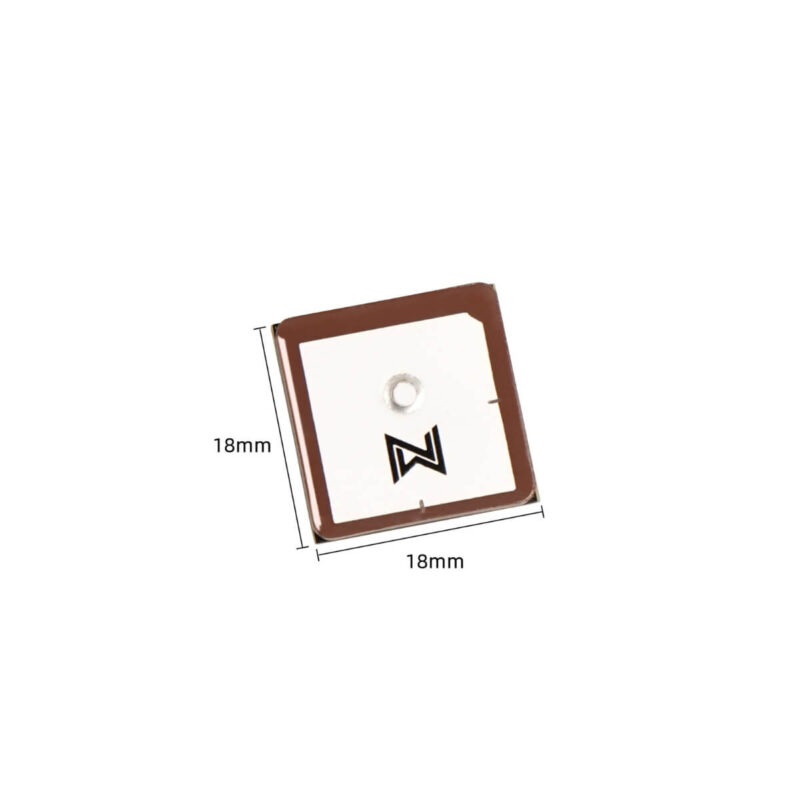

Dimensions 18 × 18 × 4.6 mm
Brand

CaddxFPV

Specs

  • Chip: M10 (ten generation chip)
  • Frequency: GPS L1,GLONASS L1,BDSB1,GALILEO E1,SBAS L1.QZSS L1
  • Power: 5V
  • Size: 18mm*18mm*4.6mm
  • Antenna: ceramic antenna (oil spraying process, prevent scratching and oxidation)
  • Receiving Channels: 72 search channels
  • Compass: QMC5883
  • Baud Rate: 115200dps
  • Output Protocol: NMEA UBLOX (dual protocol)
  • Output Frequency: 1Hz-10Hz, Default 10Hz
  • Speed Accuracy: 0.05m/s
  • Horizontal Positioning Accuracy: 2D ACC1.5m (open air)
  • Receiving Sensitivity: Trace-162dBm, Capture -160dBm
  • Weight: About 4.3g
  • Altitude: 50000m
  • Speed: 500m/s
  • Acceleration: 4G
  • Operating Temperature: -40℃-+85℃
  • Storage Temperature: -40℃-+105℃
