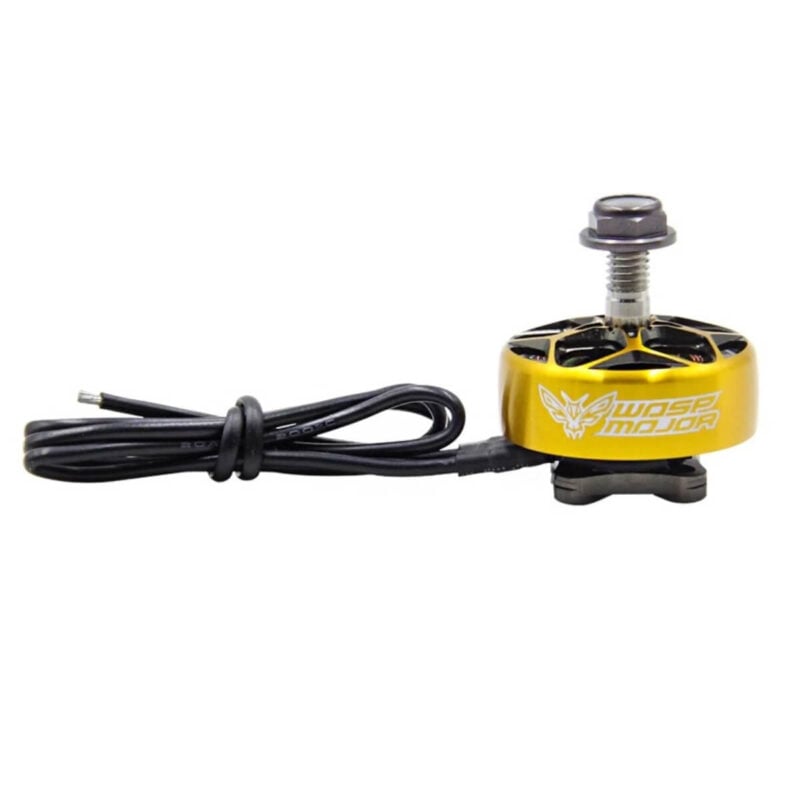

RCinpower Wasp Major 22.6-6.5 1860/2020/2420KV Brushless Motor for FPV Drone – Choose Color

$25.99

Add to Cart
RCinpower Wasp Major 22.6-6.5 1860/2020/2420KV Brushless Motor for FPV Drone - Choose Color
$25.99

Free worldwide shipping on all orders over $99

  • Licensed by top brands to ensure product quality
  • Hassle-free 60 days warranty
  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch
Guaranteed Safe Checkout

Top fpv motor from Rcinpower for racing and freestyle. Wasp Major motor is characterized by high performance, durability and pleasing appearance. The motor has a stator of unique size – 22.6 mm in diameter and 6.5 mm in height.

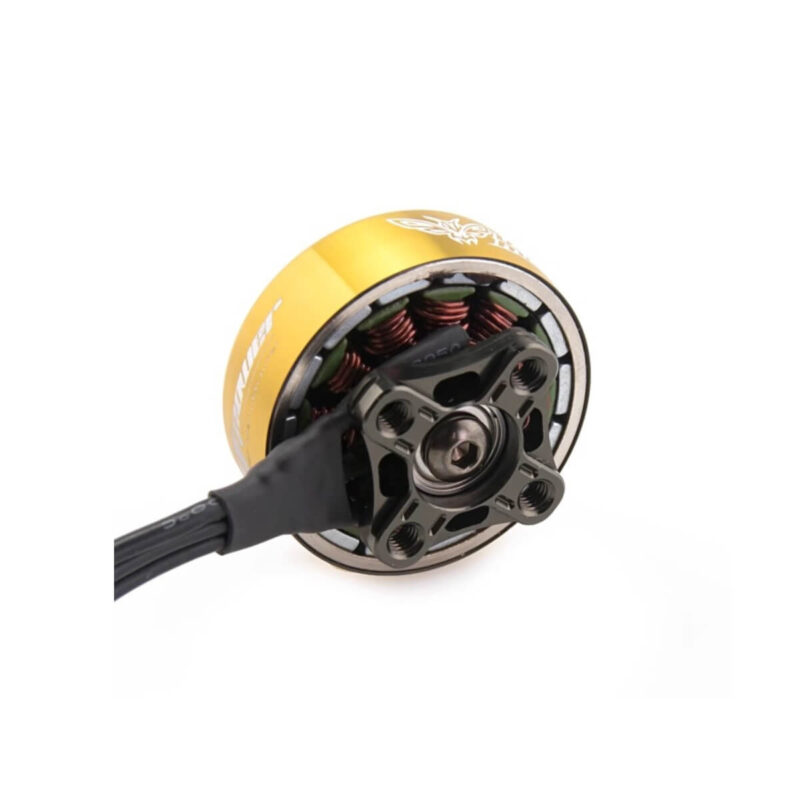

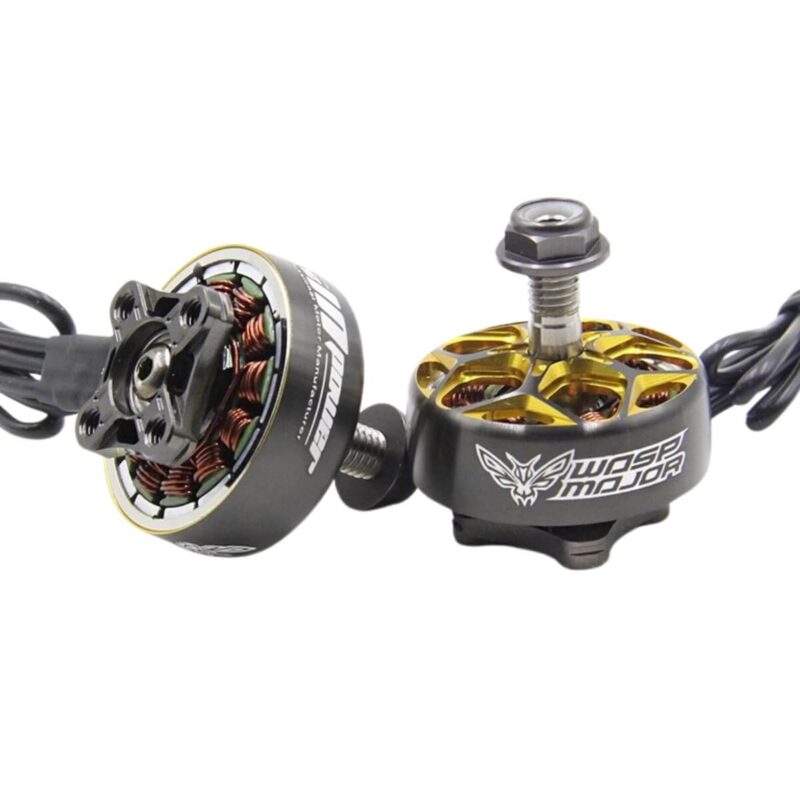

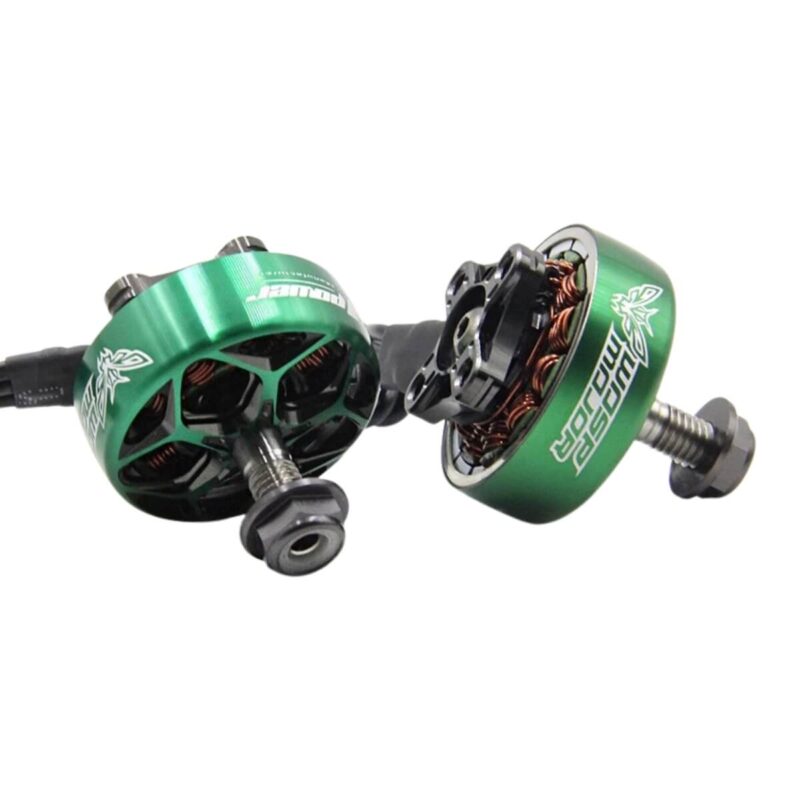

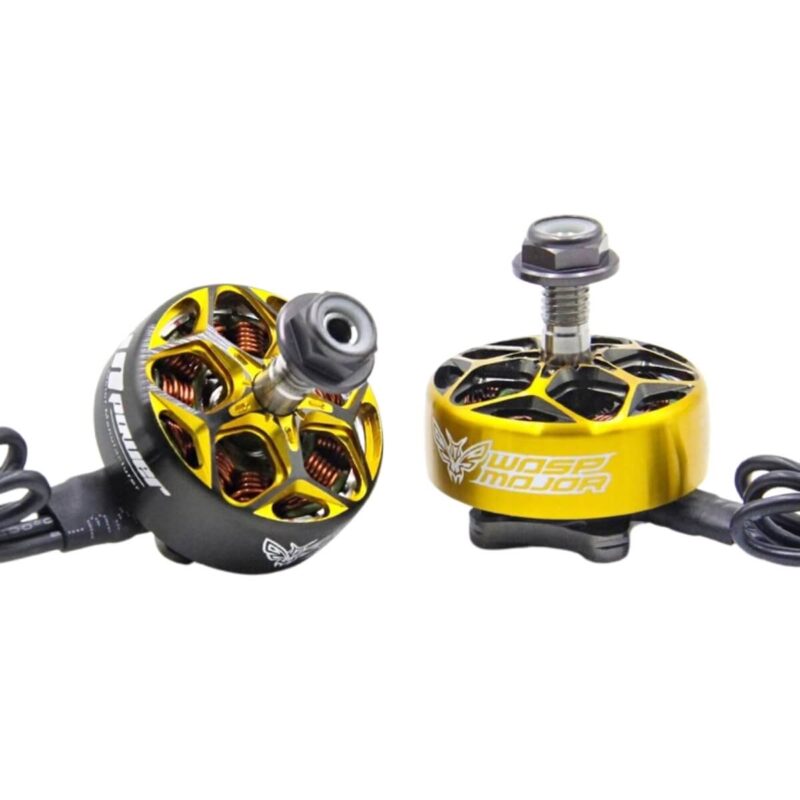

The motor has large round magnets for maximum performance. The base of the motor is reinforced, which increases the mechanical resistance of the motor. The motor have 3 colors green, gold, gun metal. 1860/2020/2420KV motor is perfect for 4S pilots that want a safe & ideal KV.

YouTube Influencer Review Results

RCinpower Wasp Major 22.6-6.5 Motor Test Data

rcinpower wasp major 22 6 6 5 fpv brushless motor 1860kv test data chart
rcinpower wasp major 22 6 6 5 fpv brushless motor 2020kv test data chart
rcinpower wasp major 22 6 6 5 fpv brushless motor 2420kv test data chart

Package Includes

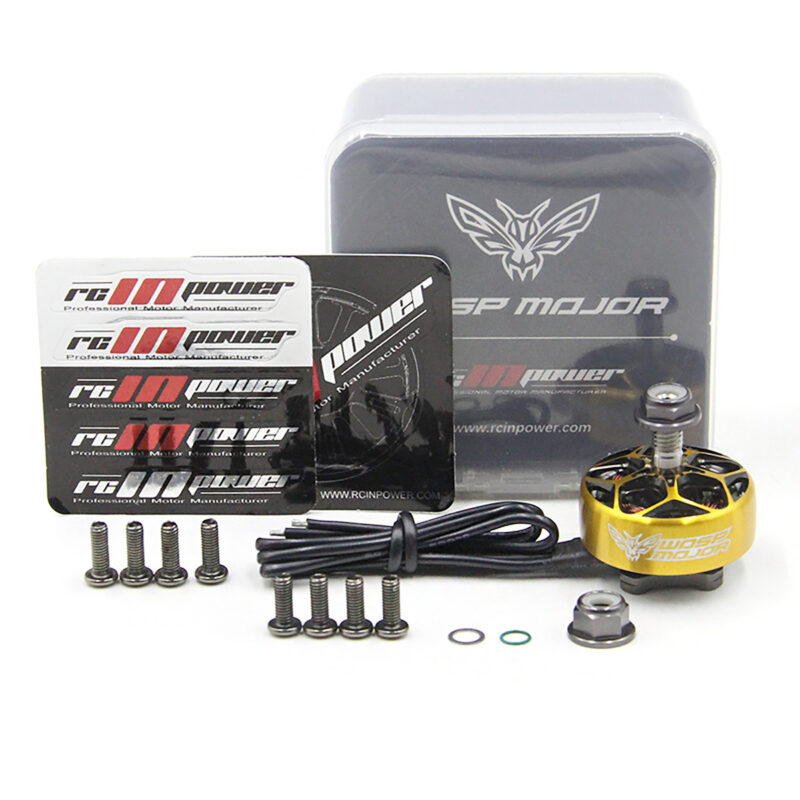

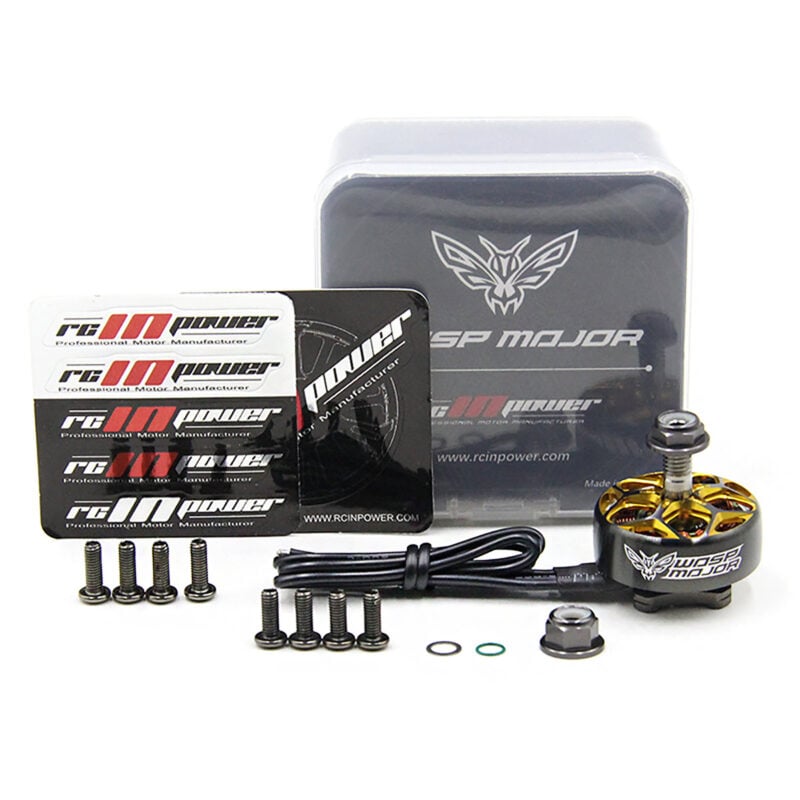

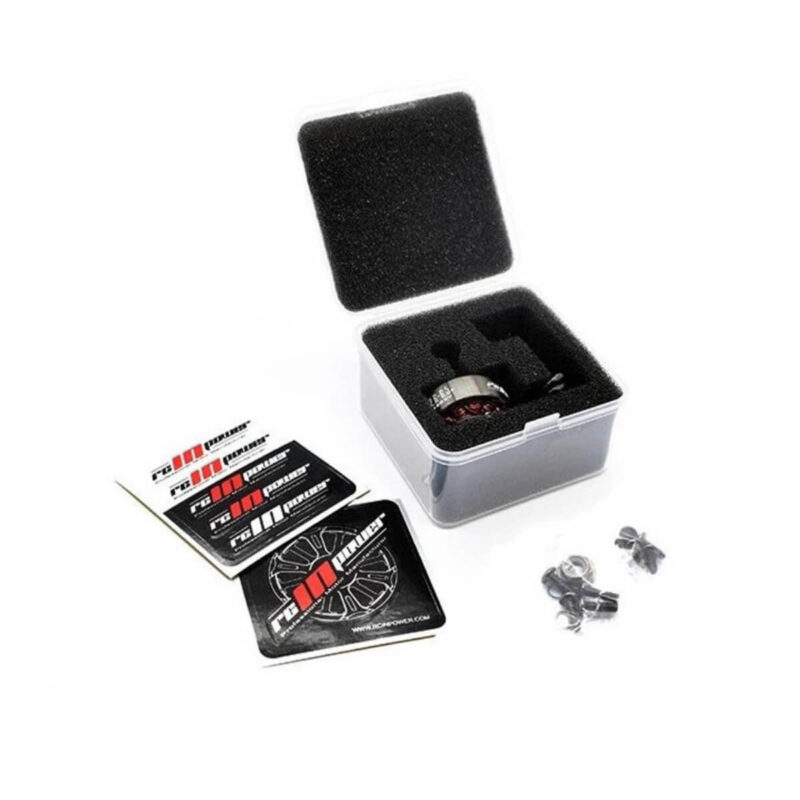

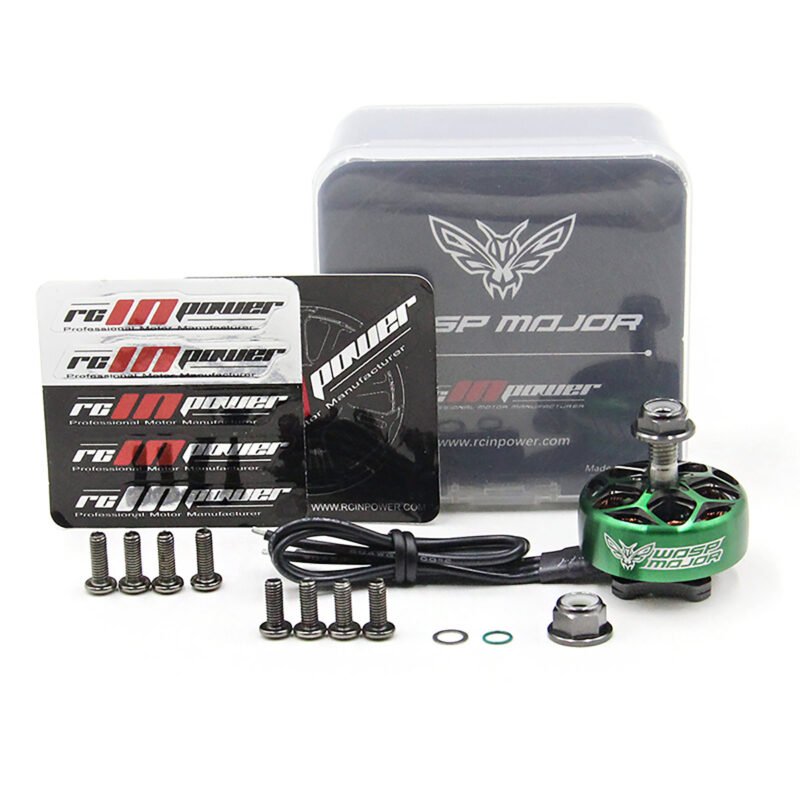

  • 1x RCinpower Wasp Major 22.6-6.5 1860/2020/2420KV Motor – Choose Color
  • 1x Motor Accessories

Additional information

Weight 30.5 g
Brand: No selection

RCinpower
Color: No selection

Gold, Green, Gun Metal
Motor KV: No selection

1860, 2020, 2420

Specs

Wasp Major 22.6-6.5 1860KV Motor

  • KV: 1860
  • Configu-ration: 12N14P
  • Stator Diamter: 22.6mm
  • Stator Length: 6.5mm
  • Shaft Diameter: 4mm (Hollow)
  • Motor Dimension (Dia.*Len): Φ 28.49*30.6mm
  • Weight (g): 30.5 (3cm Wire)
  • Idle current (10)@10V(A): 1.1
  • No.of Cells (Lipo): 5~6S
  • Max Continuous Power (W) 5S: 900
  • Internal Resistance: 64mΩ
  • Max Current (5S): 35A
  • Max Efficiency Current: (4-8A)>87%

Wasp Major 22.6-6.5 2020KV Motor

  • KV: 2020
  • Configu-ration: 12N14P
  • Stator Diamter: 22.6mm
  • Stator Length: 6.5mm
  • Shaft Diameter: 4mm (Hollow)
  • Motor Dimension (Dia.*Len): Φ 28.49*30.6mm
  • Weight (g): 30.5 (3cm Wire)
  • Idle current (10)@10V(A): 1.2
  • No.of Cells (Lipo): 5~6S
  • Max Continuous Power (W) 5S: 920
  • Internal Resistance: 49mΩ
  • Max Current (5S): 38A
  • Max Efficiency Current: (3.5-7A)>87%

Wasp Major 22.6-6.5 2420KV Motor

  • KV: 2420
  • Configu-ration: 12N14P
  • Stator Diamter: 22.6mm
  • Stator Length: 6.5mm
  • Shaft Diameter: 4mm (Hollow)
  • Motor Dimension (Dia.*Len): Φ 28.49*30.6mm
  • Weight (g): 30.5 (3cm Wire)
  • Idle current (10)@10V(A): 1.7
  • No.of Cells (Lipo): 4~5S
  • Max Continuous Power (W) 5S: 970
  • Internal Resistance: 34mΩ
  • Max Current (5S): 46A
  • Max Efficiency Current: (4-8A)>87%
