RCinpower GTS V3 2104 1800/3000KV Brushless Motor for FPV Drone – Light T-Mount

$24.99

Premium 7075 alloy construction
N52H ARC magnets for maximum performance
Compact 23.35×13.8mm form factor

RCinpower GTS V3 2104 1800/3000KV Brushless Motor for FPV Drone - Light T-Mount

$24.99

Color: No selection

More options

Motor KV: No selection

More options

Clear

Gallery
Description
Additional information
Specs
Reviews 0

The GTS V3 is RCINPOWER’s latest motor line, featuring multiple sizes and KV options to suit any build. This high-end motor is crafted from durable 7075 alloy with powerful N52H ARC magnets, making it perfect for 5″ ultralights and cinewhoops running T-mount props.

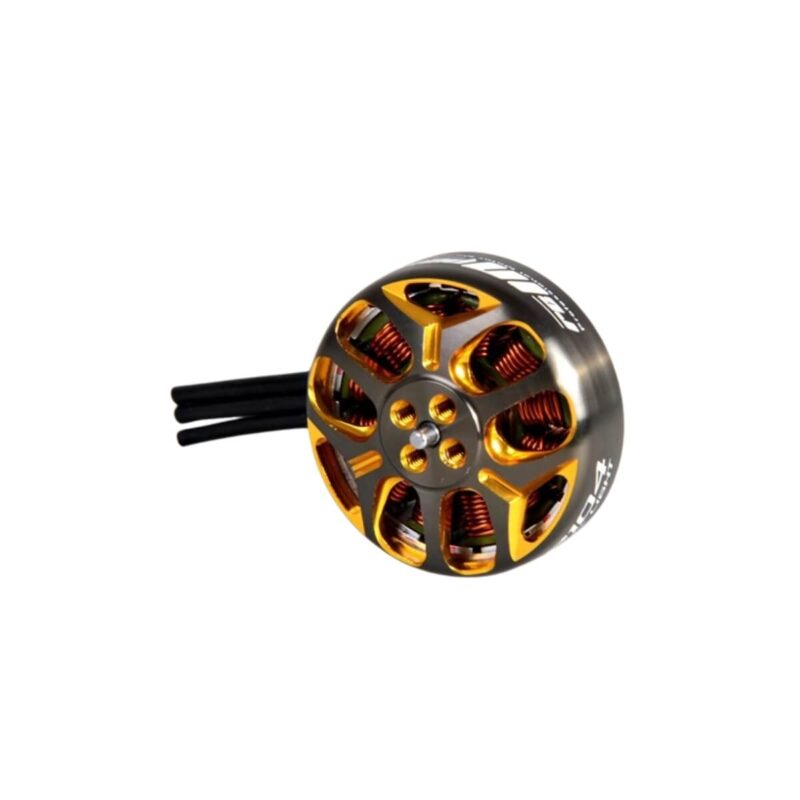

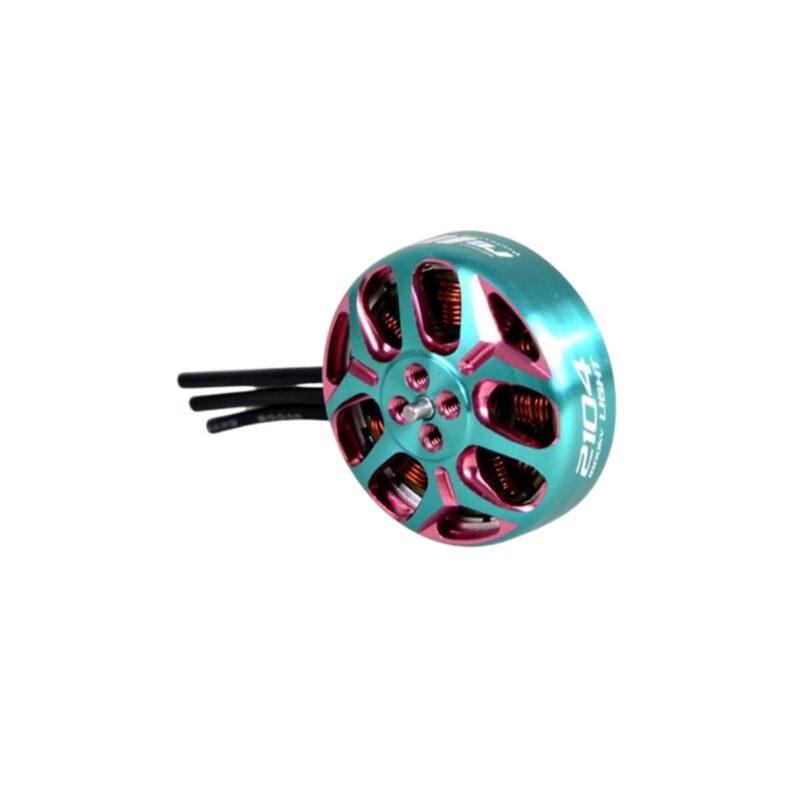

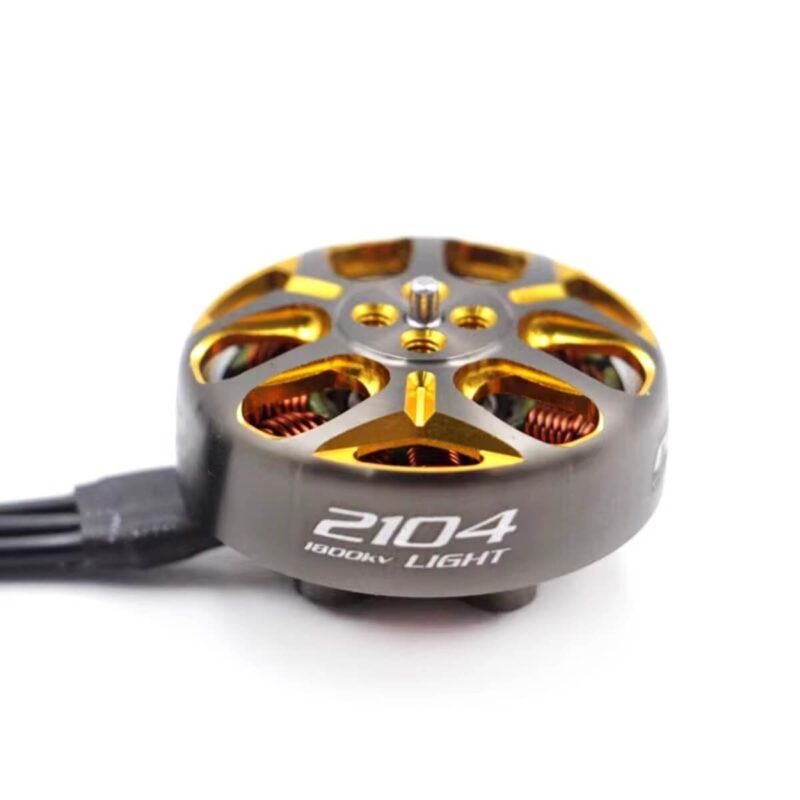

Weighing in at just 16g with compact dimensions of 23.35×13.8mm, this powerhouse delivers impressive speed and agility. Available in 1800KV (Gun Metal and Gold) or 3000KV (Teal and Pink) variants.

RCinpower GTS V3 2104 Motor – Light T-Mount Test Data

rcinpower gts v3 2104 light t mount fpv brushless motor 1800kv test data chart

rcinpower gts v3 2104 light t mount fpv brushless motor 3000kv test data chart

Package Includes

1x RCinpower GTS V3 2104 Light T-Mount 1800/3000KV Motor
1x Motor Accessories

Additional information

Weight	20 g
Brand: No selection	RCinpower
Color: No selection	Gunmetal/Gold, Teal/Pink
Motor KV: No selection	1800, 3000

Specs

GTS V3 2104 Motor – Light T-Mount 1800KV

KV: 1800
Configu-ration: 12N14P
Stator Diamter: 21mm
Stator Length: 4mm
Shaft Diameter: 3mm(in) 1.5mm(out)
Motor Dimension (Dia.*Len): Φ 25.35*13.8mm
Weight (g): 15.9 (3cm Wire)
Idle current (10)@10V(A): 0.5
No.of Cells (Lipo): 4~6S
Max Continuous Power (W) 3S: 530
Internal Resistance: 210mΩ
Max Current (3S): 22.1A
Max Efficiency Current: (0.6-2A)>86%

GTS V3 2104 Motor – Light T-Mount 3000KV

KV: 3000
Configu-ration: 12N14P
Stator Diamter: 21mm
Stator Length: 4mm
Shaft Diameter: 3mm(in) 1.5mm(out)
Motor Dimension (Dia.*Len): Φ 25.35*13.8mm
Weight (g): 15.9 (3cm Wire)
Idle current (10)@10V(A): 0.9
No.of Cells (Lipo): 3~4S
Max Continuous Power (W) 3S: 580
Internal Resistance: 110mΩ
Max Current (3S): 36.2.2A
Max Efficiency Current: (2-5A)>85%
