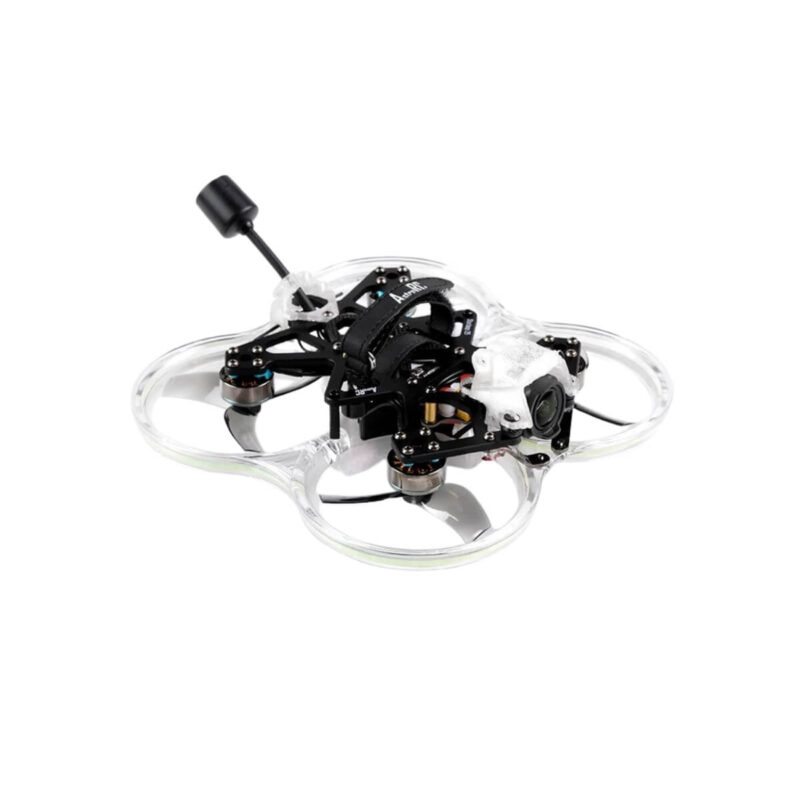

The AstroRC StarLoop 25 V3 FPV drone has gone through multiple iterations, perfecting its design. Like its predecessor, it innovates the build process by integrating most hardware onto a single core board, eliminating messy wiring and making it super beginner-friendly. This core board system includes LED pads, an external buzzer mount, receiver mount, capacitor mount, and XT30 connector mount.
It features two 4-in-1 connectors for hooking up the receiver, buzzer, LEDs, and FC.
The StarLoop 25 V3 uses a standard 90° true X configuration with a 109mm wheelbase, offering no difference between pitch and roll axes for better handling and flight performance. This design enhances video quality. The detachable prop guards are separate from the core electronics, making repairs a breeze.
Its multi-point soft-mount gimbal with vibration dampeners reduces the “jello effect” caused by prop wear, significantly lowering the difficulty of tuning the quad. This FPV drone comes with built-in controllable ice-blue COB LEDs.
We offer a carbon fiber core board + protective ring in 3 colors.

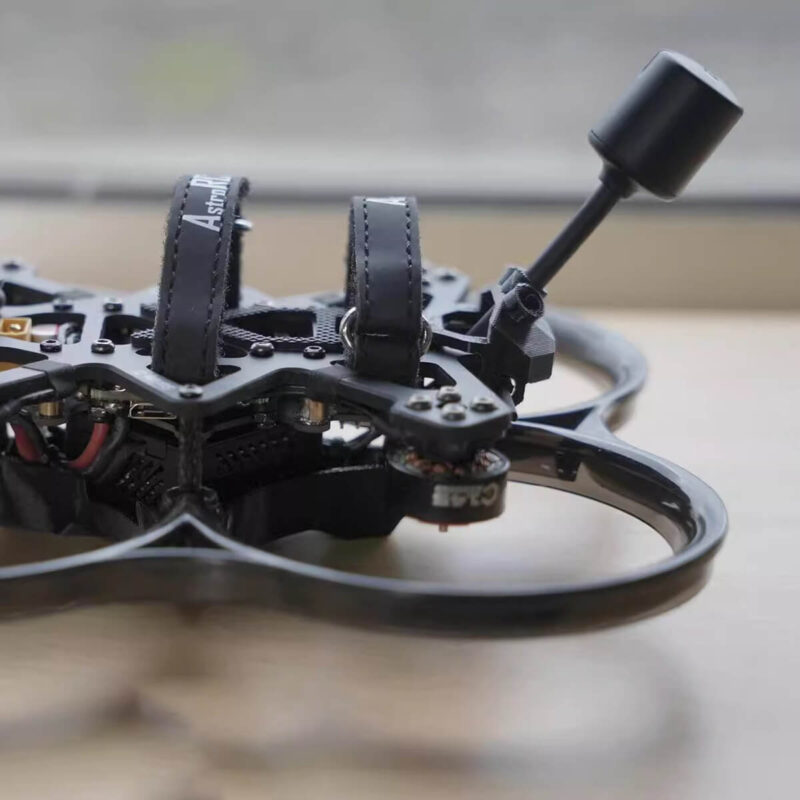

Tail Antenna Fixing
This StarLoop 25 V3 frame is suitable for many brands of vtx antennas, the receiver hole can be fixed with different thickness of the T-shaped antenna. Such as the TBS 915 long T antenna, and the ELRS short T antenna.
Perfectly support DJI O3 original antenna, also compatible with dual lollipop antenna.
Multi-functional Lens Protectors
Protects the lens, compatible with the BZGNSS BZ-121 GPS module, and can fix the sports camera with M3 interface. Shock absorption and stabilization.
High strength carbon fiber nylon prints
BEC module placement bin
Wiring Diagram
Package Includes
- 1 x AstroRC StarLoop 25 V3 2.5″ FPV Drone – DJI O3
