RCinpower AOS Supernova 2207 1570/1980KV Burshless Motor for FPV Drone
$32.99

Free worldwide shipping on all orders over $99

  • Licensed by top brands to ensure product quality
  • Hassle-free 60 days warranty
  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch
Guaranteed Safe Checkout

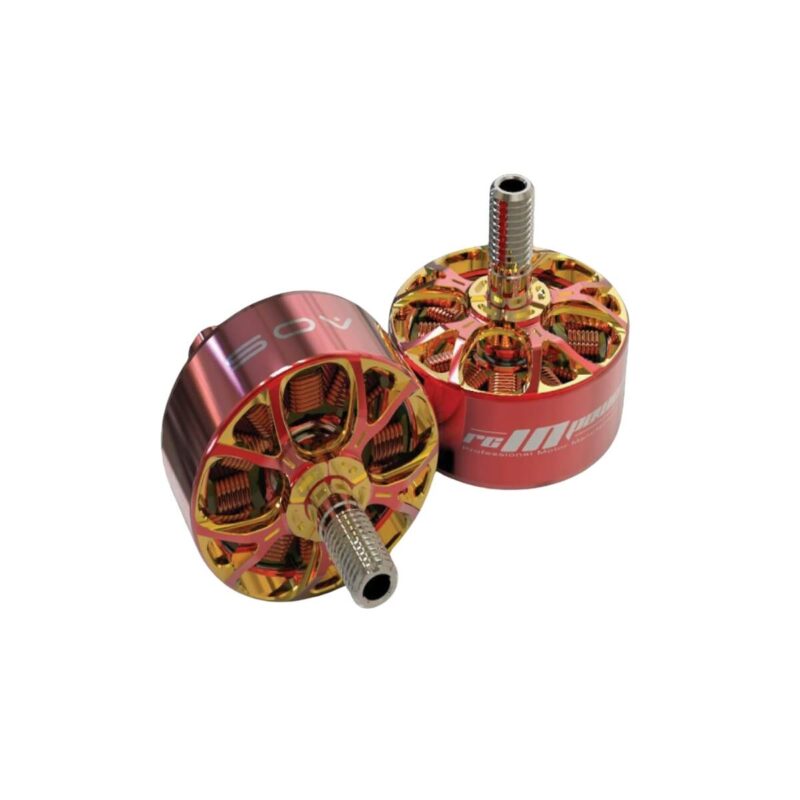

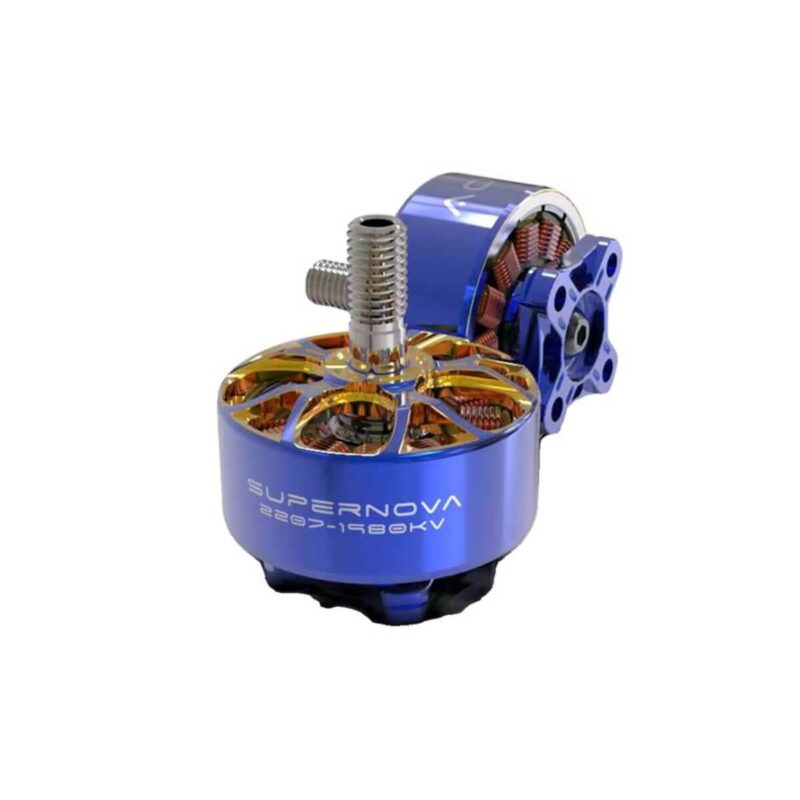

RCinpower’s latest masterpiece for 2023, the A0S collaboration Supernova-2207, is purpose-built for professional 5-inch freestyle quads. With an actual stator size of 2207.5, it delivers serious punch for aggressive maneuvers.

The motors feature upgraded aviation-grade wires for enhanced heat resistance, while the rotor rocks a new lightweight design that maintains durability while boosting throttle response and feel. Ready to experience pro-level performance? These motors are waiting for you to rip!

RCinPower AOS Supernova 2207 Motor Test Data

rcinpower aos supernova 2207 fpv brushless motor 1980kv test data chart
rcinpower aos supernova 2207 fpv brushless motor 1570kv test data chart

Package Includes

  • 1x AOS Supernova 2207 1570/1980KV FPV Motor
  • 1x Motor Accessories

Additional information

Weight 33 g
Brand: No selection

RCinpower
Color: No selection

Blue, Red
Motor KV: No selection

1570, 1980

Specs

AOS Supernova 2207 1570KV

  • KV: 1570
  • Configu-ration: 12N14P
  • Shaft Diameter: 4mm (Hollow)
  • Motor Dimension (Dia.*Len): Φ 27.6*19.5mm
  • Weight (g): 31 (2cm Wire)
  • Idle current (10)@10V(A): 1.1
  • No.of Cells (Lipo): 8S
  • Max Continuous Power (W) 5S: 1414
  • Internal Resistance: 65mΩ
  • Max Current (5S): 44.2A
  • Max Efficiency Current: (4-9A)>86%

AOS Supernova 2207 1980KV

  • KV: 1980
  • Configu-ration: 12N14P
  • Shaft Diameter: 4mm (Hollow)
  • Motor Dimension (Dia.*Len): Φ 27.6*19.5mm
  • Weight (g): 33 (2cm Wire)
  • Idle current (10)@10V(A): 1.1
  • No.of Cells (Lipo): 5~6S
  • Max Continuous Power (W) 5S: 1456
  • Internal Resistance: 45mΩ
  • Max Current (5S): 61A
  • Max Efficiency Current: (5-11A)>86%
