Flywoo GOKU GM10 Nano V3 GPS Module & Compass Version

Specs

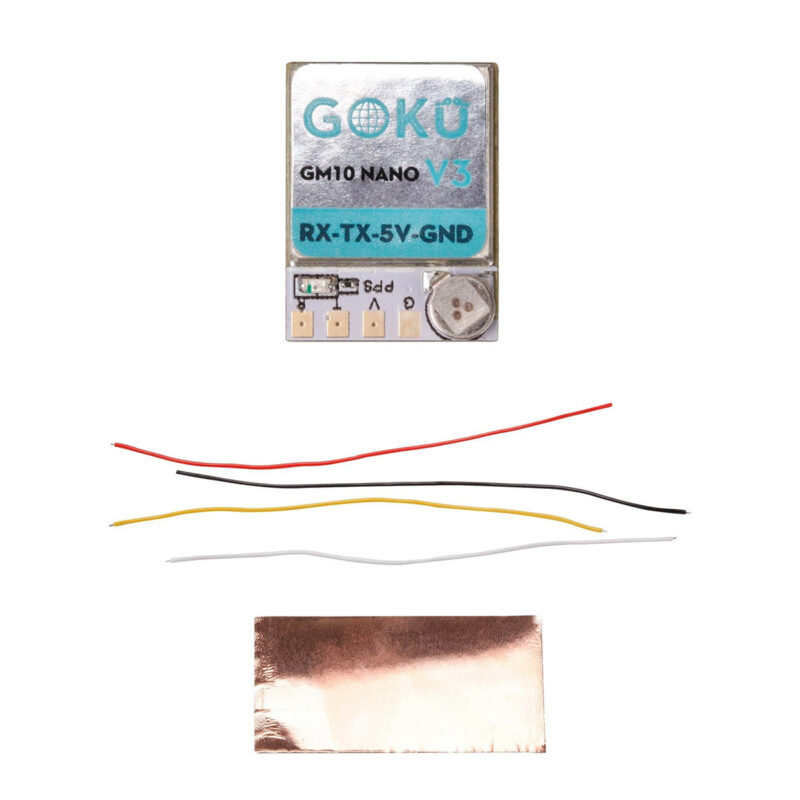

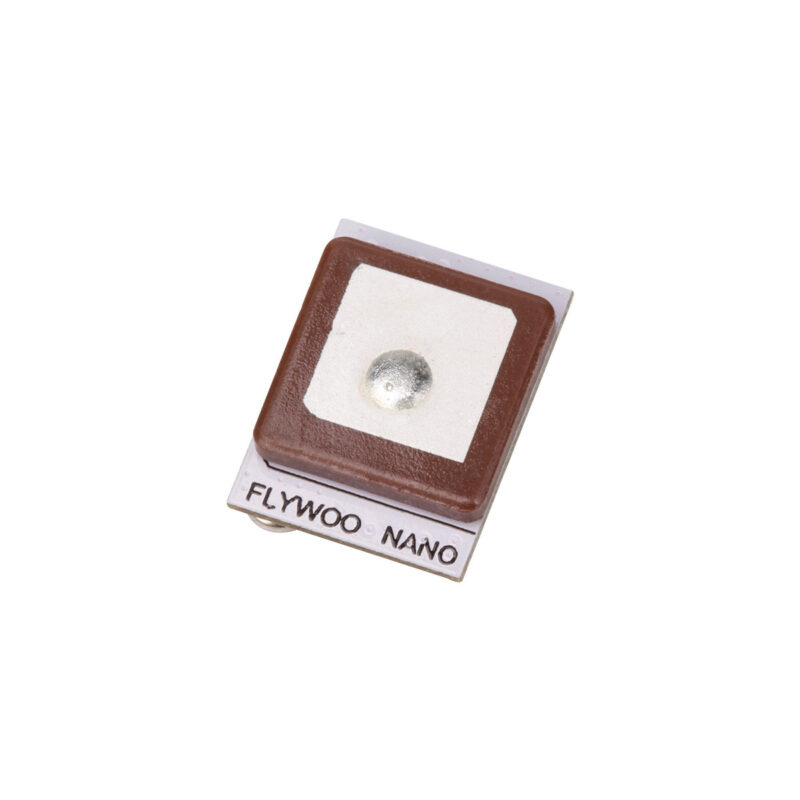

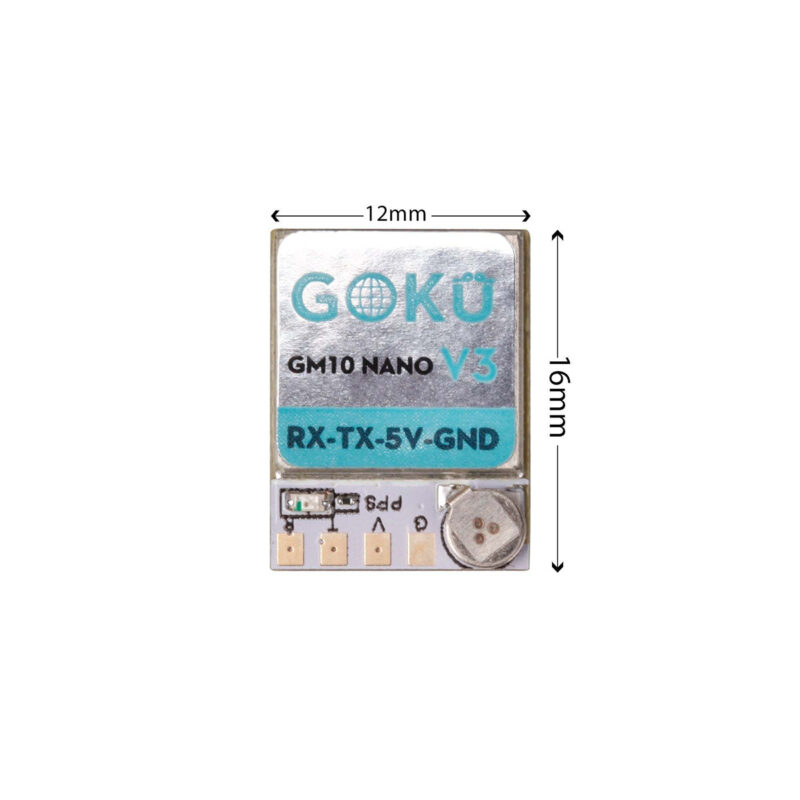

GOKU GM10 Nano V3 GPS

• Chipset : M10050(Tenth Generation Chip)
• Receiving Format : GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS
• Default Protocol : GPS, Galileo, BeiDou
• Frequency : GPS L1, GLONASS L1, BeiDou B1, SBAS L1, Galileo E1
• Channels : 72 Searching Channel

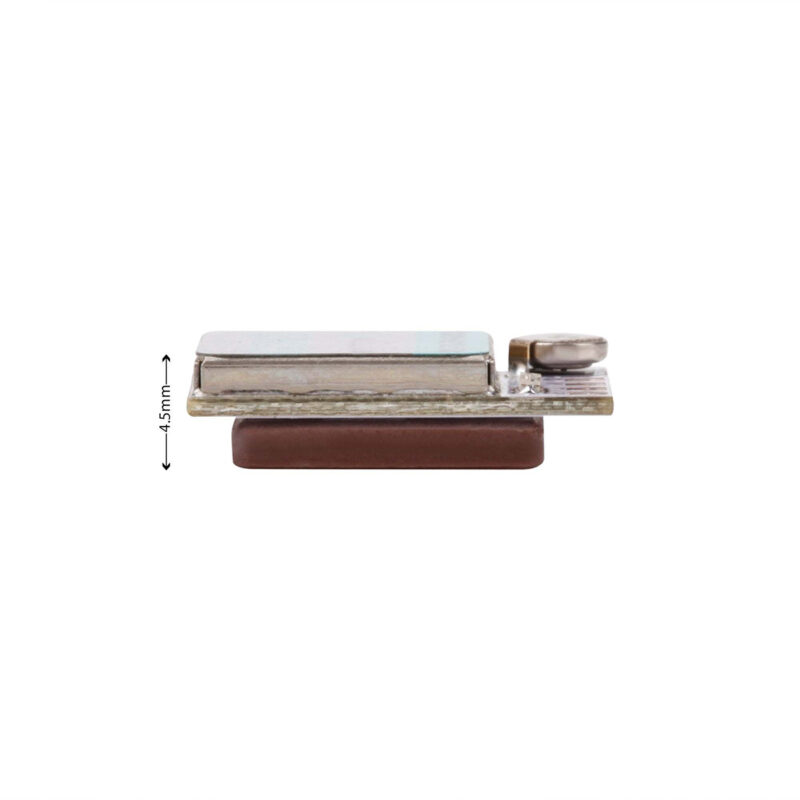

• Dimension :12mm*16mm*4.5mm

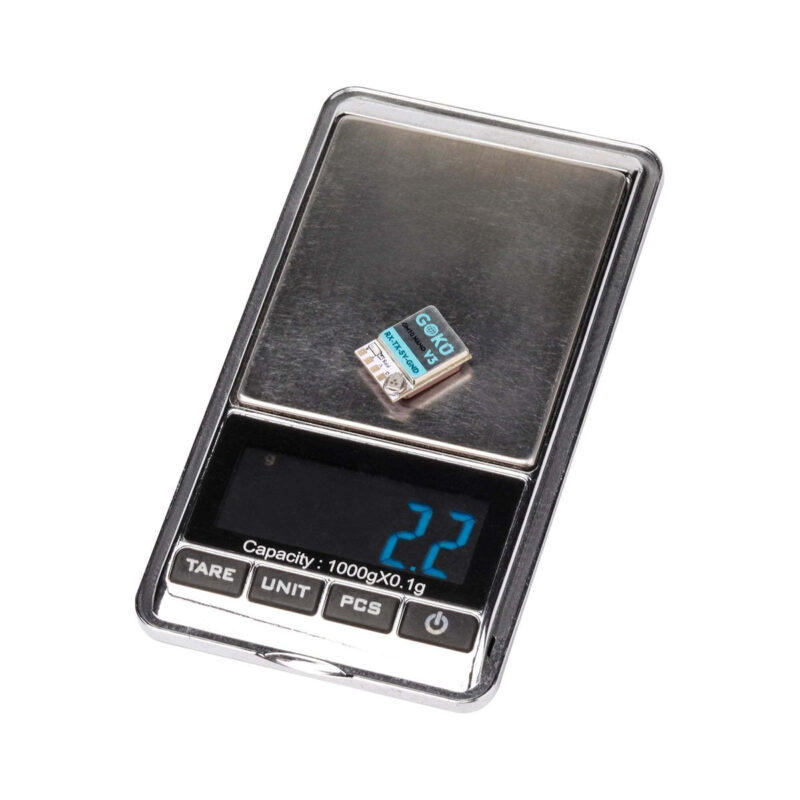

• Weight : 2.2g
• Connector : 4pins Pad
• Tracking : -162dBm
• Reacquisition : -160dBm
• Support Rate : 4800bps to 921600bps, Default 115200bps
• Data Level : TTL or RS-232, Default TTL level
• Data Protocol : BF4.3.X(UBLOX)/BF4.2.X(NMEA)
• Output frequency : 1Hz-10Hz, Default 10Hz
• Altitude : 50,000m Max
• Velocity : 500m/s Max
• Acceleration : Less than 4g
• VCC : DC Voltage: 3.3-5V
• Operating temp: -40 °C ~ +85°C
• Storage Temp: -40°C ~ +105°C
• PPS LED: Yellow. PPS LED not bright when GPS not fixed, flashing when fixed

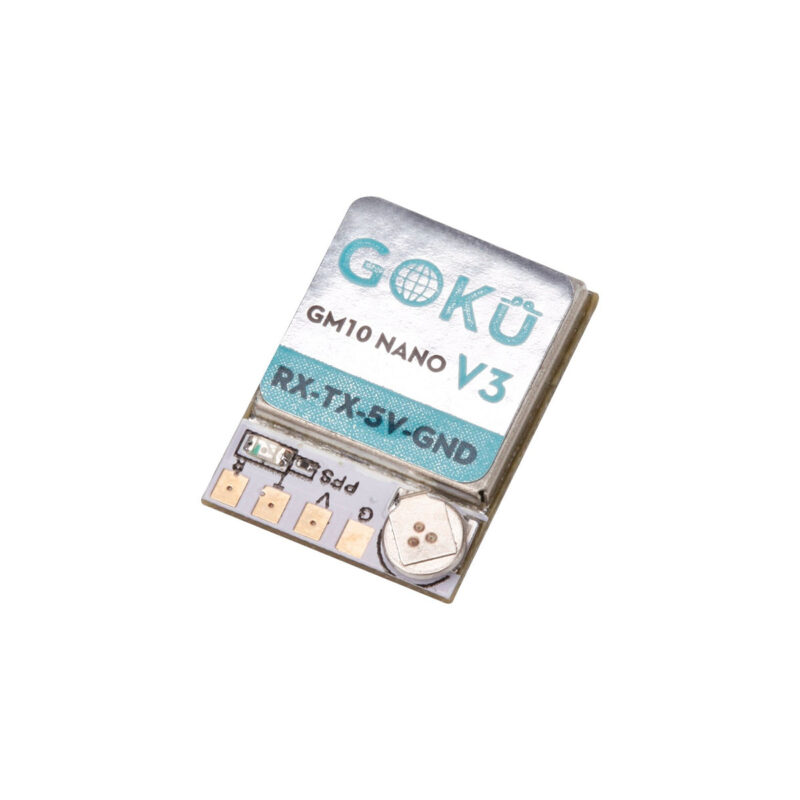

• The Module’s Pins: RX TX 3.3-5V GND

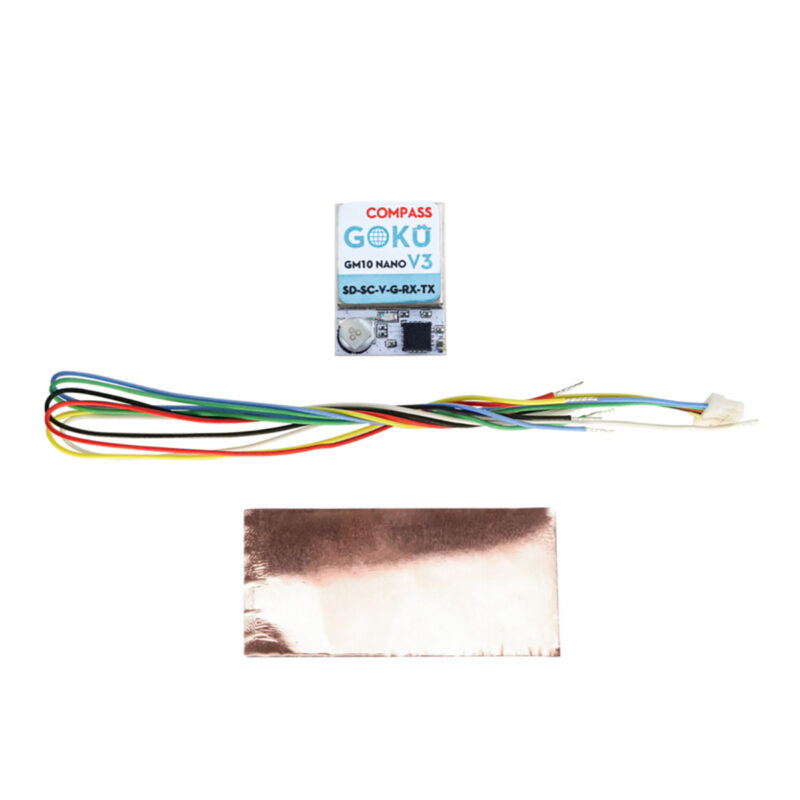

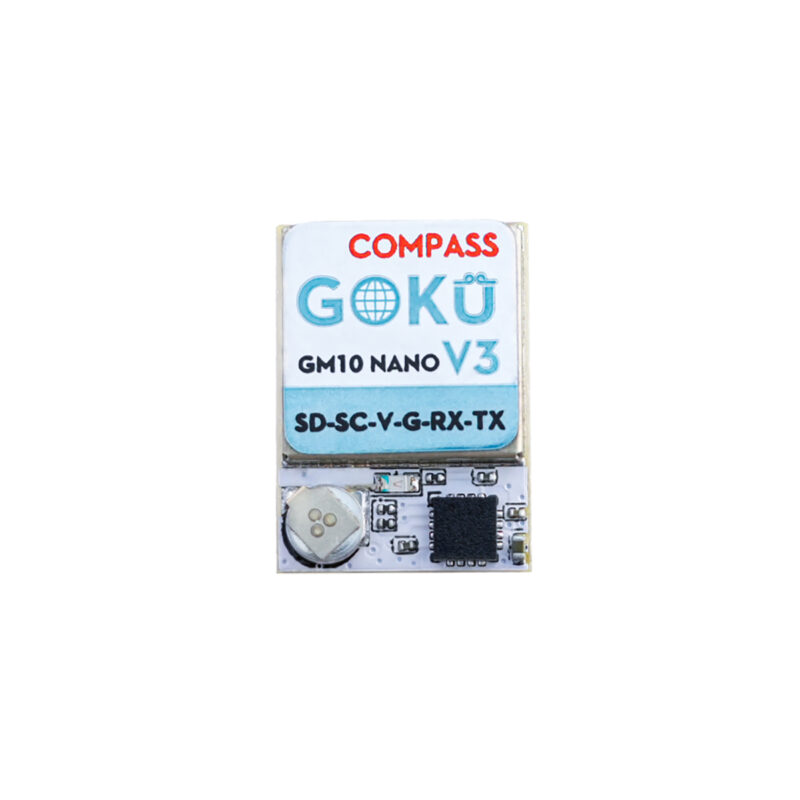

GM10 NANO V3 GPS w/compass

• Chipset : M10050(Tenth Generation Chip)
• Receiving Format : GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS
• Default Protocol : GPS, Galileo, BeiDou
• Frequency : GPS L1, GLONASS L1, BeiDou B1, SBAS L1, Galileo E1
• Channels : 72 Searching Channel

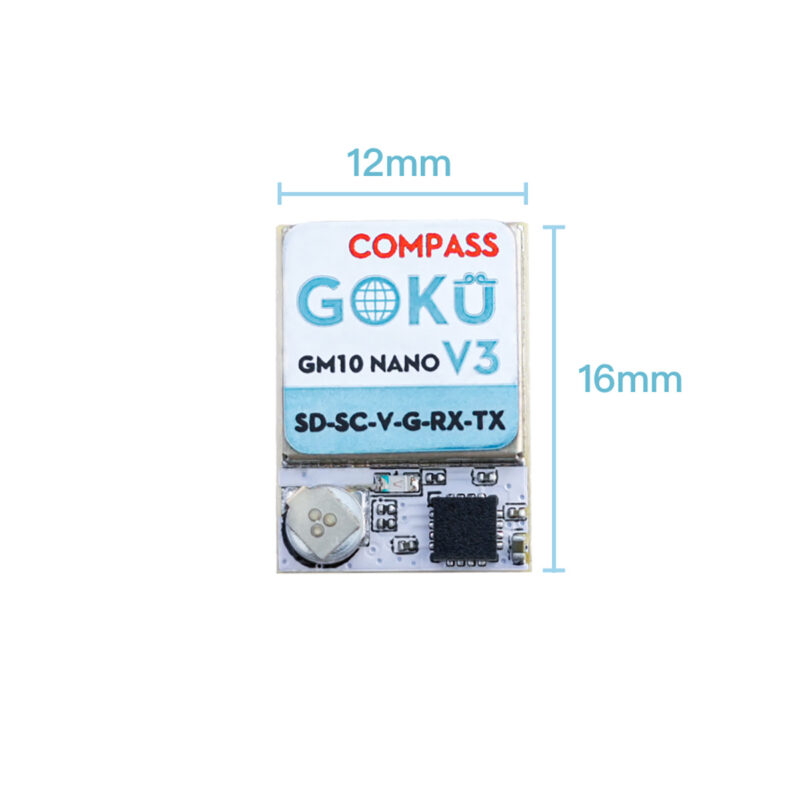

• Dimension :12mm*17mm*5mm

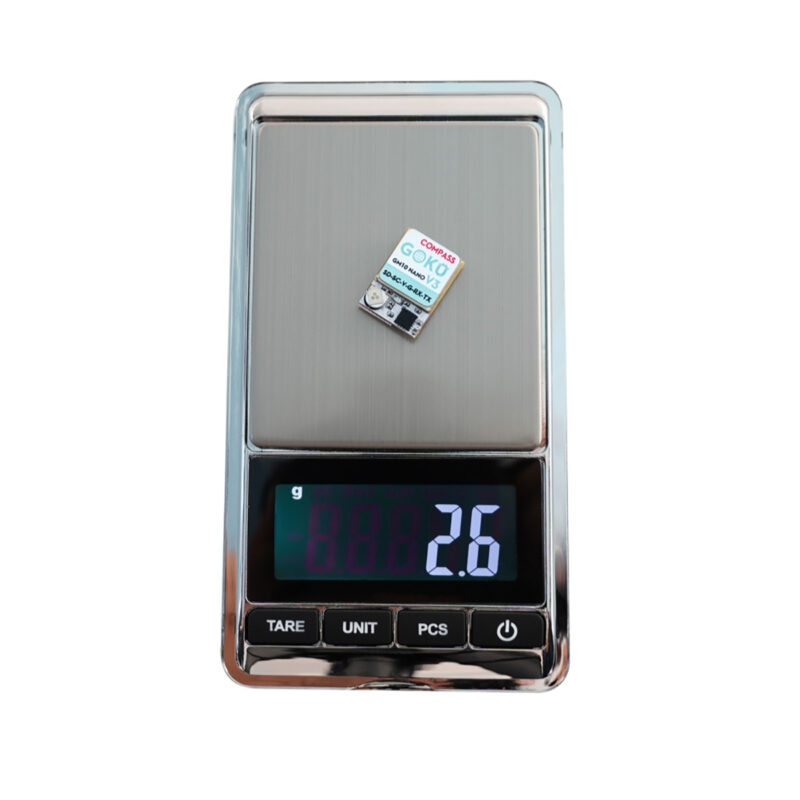

• Weight : 2.6g
• Connector : 4pins Pad
• Tracking : -162dBm
• Reacquisition : -160dBm
• Support Rate : 4800bps to 921600bps, Default 115200bps
• Data Level : TTL or RS-232, Default TTL level
• Data Protocol : BF4.3.X(UBLOX)/BF4.2.X(NMEA)
• Output frequency : 1Hz-10Hz, Default 10Hz
• Altitude : 50,000m Max
• Velocity : 500m/s Max
• Acceleration : Less than 4g
• VCC : DC Voltage ：3.3-5V
• Operating temp : -40 °C ~ +85°C
• Storage Temp : -40°C ~ +105°C
• PPS LED: Yellow. PPS LED not bright when GPS not fixed, flashing when fixed.
• The Module’s Pins: RX TX 3.3-5V GND
