Flywoo GOKU GM10 Pro V3 GPS Module w/ Compass

$19.99

Add to Cart
Flywoo GOKU GM10 Pro V3 GPS Module w/ Compass
$19.99

Free worldwide shipping on all orders over $90

  • Licensed by top brands to ensure product quality
  • Hassle-free 60 days warranty
  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch
Guaranteed Safe Checkout

GOKU GM10 V3 GPS series is here! Using the latest M10050 GNSS chip. Compared with the previous generation GM8 V2, the positioning is more accurate, and the speed of star search is faster.

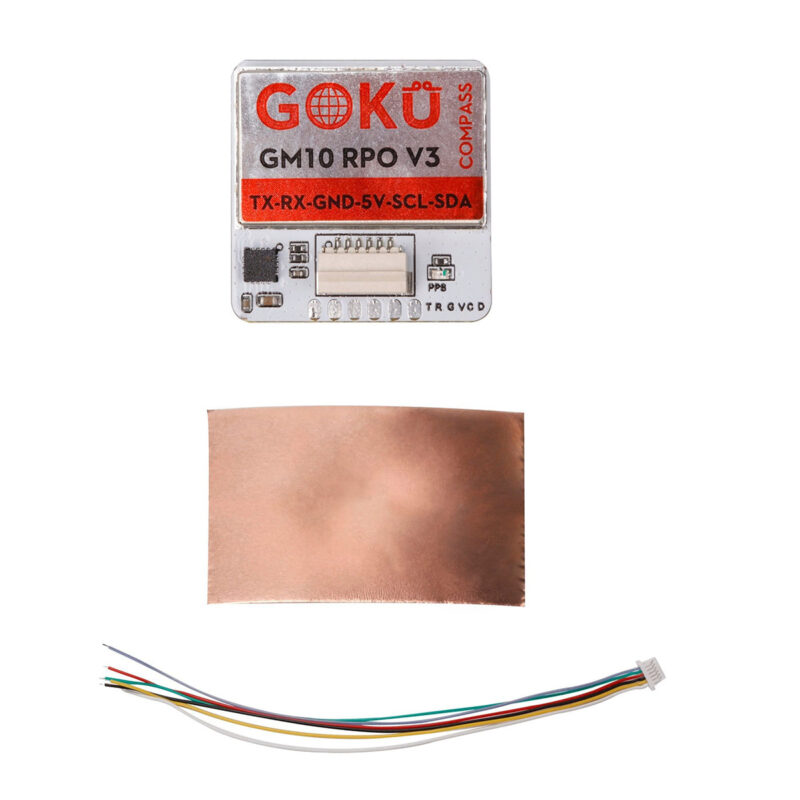

Package Includes

  • 1x Flywoo GOKU GM10 Pro V3 GPS w/ Compass
  • 1x 150mm Cable
  • 1x Copper Foil

Additional information

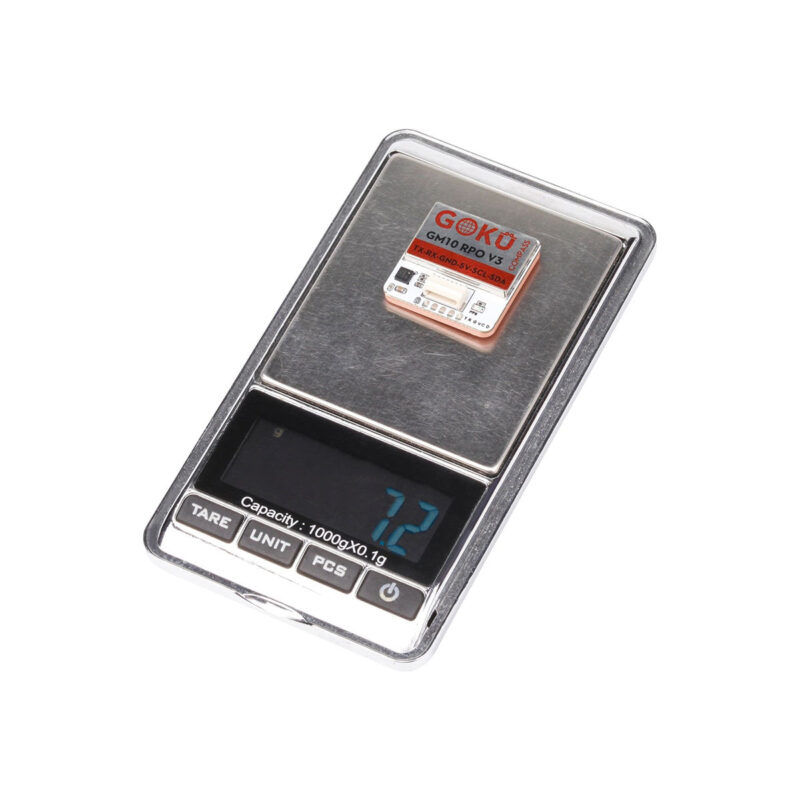

Weight 7.3 g
Brand

Flywoo

Specs

  • Chipset: M10050 (Tenth Generation Chip)
  • Receiving Format: GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS
  • Default Protocol: GPS, Galileo, BeiDou
  • Frequency: GPS L1, GLONASS L1, BeiDou B1, SBAS L1, Galileo E1
  • Channels: 72 Searching Channel

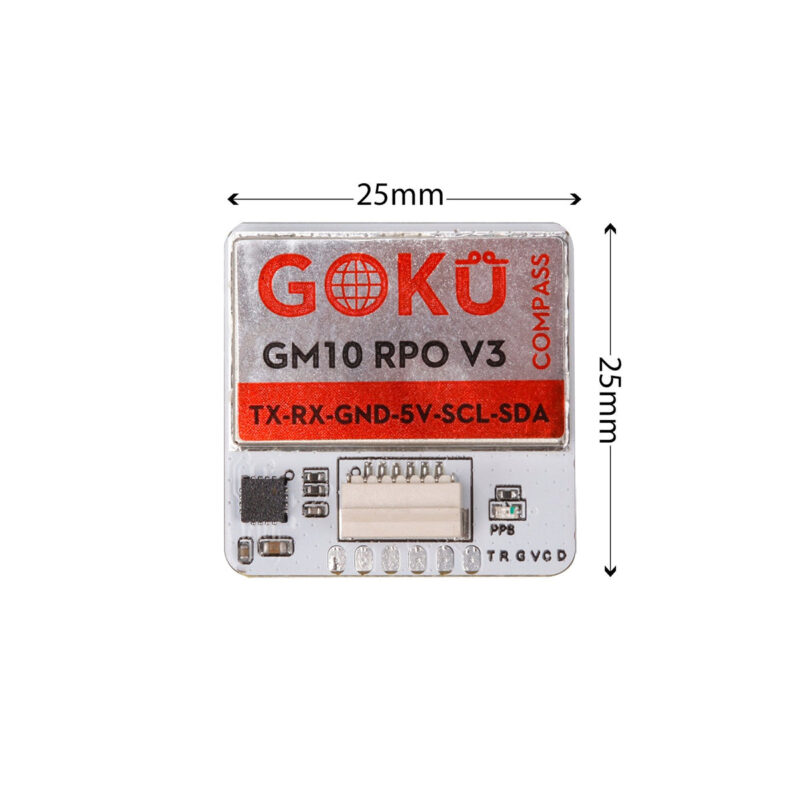

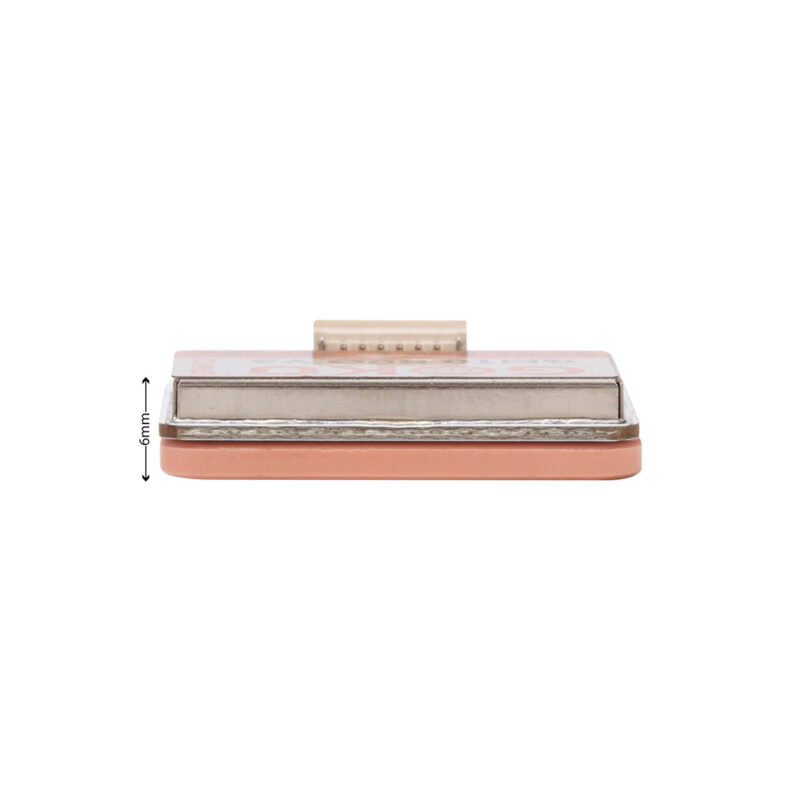

  • Dimension: 25mm*25mm*6mm
  • Weight: 7.3g
  • Connector: 1.00mm spacing between the 6pins patch seat
  • Tracking: -162dBm
  • Reacquisition: -160dBm
  • Support Rate: 4800bps to 921600bps, Default 115200bps
  • Data Level: TTL or RS-232, Default TTL level
  • Data Protocol: BF4.3.X (UBLOX)/BF4.2.X(NMEA)
  • Output frequency: 1Hz-10Hz,Default 10Hz
  • Altitude: 50,000m Max
  • Velocity: 500m/s Max
  • Acceleration: Less than 4g
  • VCC: DC Voltage: 5V
  • Operating Temp: -40 °C ~ +85°C
  • Storage Temp: -40°C ~ +105°C
  • PPS LED: Yellow. PPS LED not bright when GPS not fixed, flashing when fixed
  • The Module’s Pins: TX RX GND 5V SCL SDA
