RCinpower GTS V3 1002 14000/19000/22000KV Micro Brushless Motor for FPV Drone

$12.99

Add to Cart
RCinpower GTS V3 1002 14000/19000/22000KV Micro Brushless Motor for FPV Drone
RCinpower GTS V3 1002 14000/19000/22000KV Micro Brushless Motor for FPV Drone
$12.99

Free worldwide shipping on all orders over $199

  • Licensed by top brands to ensure product quality
  • Hassle-free 60 days warranty
  • 30 days easy returns
  • U.S. customers: tax is Trump’s Tariffs (10%)
Guaranteed Safe Checkout

Introducing the Revolutionary RCinpower GTS V3 1002 Micro Brushless Motors! These compact powerhouses redefine the micro FPV game, delivering superior performance over traditional 0802/1102 motors at just 2.5g! The premium dual-bearing design ensures rock-solid reliability and durability.

Say goodbye to burned-out stators from short wires – our innovative solder pad design solves this common issue once and for all. Each motor comes with a 1.25mm connector for hassle-free installation.

Perfect for 65-75mm micro builds, this is the premium upgrade your tiny whoop deserves. Level up your micro game – grab yours today!

RCinpower GTS V3 1002 Motor Test Data

rcinpower gts v3 1002 micro fpv brushless motor 14000kv teal pink gold orange
rcinpower gts v3 1002 micro fpv brushless motor 19000kv teal pink gold orange
rcinpower gts v3 1002 micro fpv brushless motor 22000kv teal pink gold orange

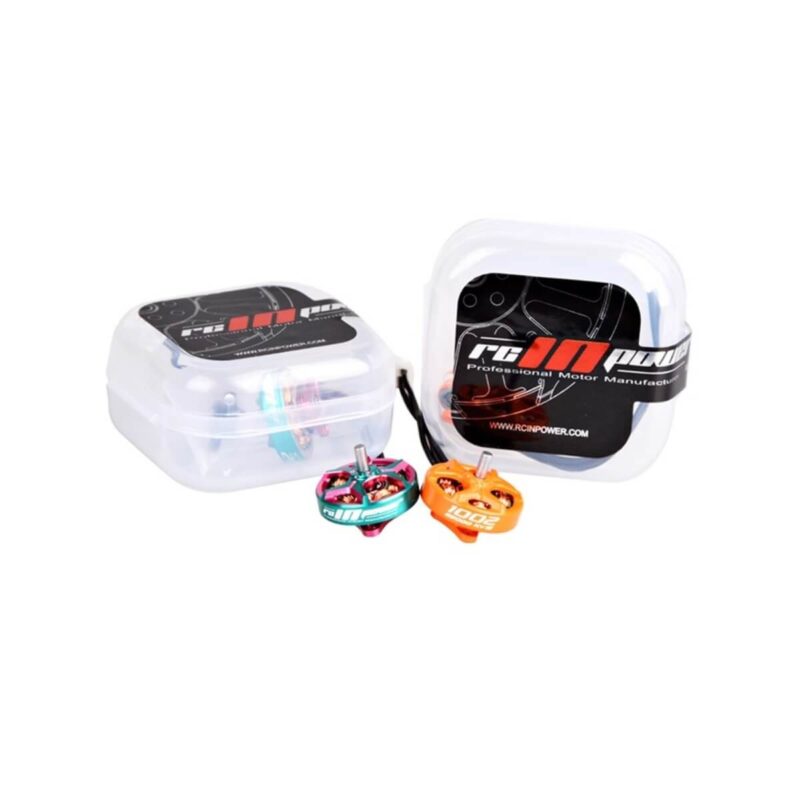

Package Includes

  • 1x RCinpower GTS V3 1002 14000/19000/22000KV Motor
  • 1x Motor Accessories

Additional information

Weight 2.5 g
Brand: No selection

RCinpower
Color: No selection

Orange, Teal/Pink
Motor KV: No selection

14000, 19000, 22000

Specs

GTS V3 1002 14000KV Motor

  • KV: 14000
  • Configu-ration: 9N12P
  • Stator Diamter: 10mm
  • Stator Length: 2mm
  • Shaft Diameter: 1.5mm
  • Motor Dimension (Dia.*Len): Φ 13.5*7.75mm
  • Weight (g): 2.5 (5cm wire)
  • Idle current (5)@5V(A): 0.8
  • No.of Cells (Lipo): 1-2S
  • Max Continuous Power (W) 3S: 67
  • Internal Resistance: 175mΩ
  • Max Current (3S): 9A
  • Max Efficiency Current: (1-3A)>84%

GTS V3 1002 19000KV Motor

  • KV: 19000
  • Configu-ration: 9N12P
  • Stator Diamter: 10mm
  • Stator Length: 2mm
  • Shaft Diameter: 1.5mm
  • Motor Dimension (Dia.*Len): Φ 13.5*7.75mm
  • Weight (g): 2.5 (5cm wire)
  • Idle current (5)@5V(A): 1.3
  • No.of Cells (Lipo): 1S
  • Max Continuous Power (W) 3S: 44
  • Internal Resistance: 89mΩ
  • Max Current (3S): 11.8A
  • Max Efficiency Current: (2-4A)>84%

GTS V3 1002 22000KV Motor

  • KV: 22000
  • Configu-ration: 9N12P
  • Stator Diamter: 10mm
  • Stator Length: 2mm
  • Shaft Diameter: 1.5mm
  • Motor Dimension (Dia.*Len): Φ 13.5*7.75mm
  • Weight (g): 2.5 (5cm wire)
  • Idle current (5)@5V(A): 1.5
  • No.of Cells (Lipo): 1S
  • Max Continuous Power (W) 3S: 52
  • Internal Resistance: 75mΩ
  • Max Current (3S): 14A
  • Max Efficiency Current: (2-4A)>84%
