T-Motor P1804 2400/3400KV FPV Drone Brushless Motor for Freestyle - 3/3.5/4" $20.99
RCinpower GTS V3 1002 14000/19000/22000KV Micro FPV Brushless Motor $12.99

RCinpower GTS V3 0802 10000/22000/25000/27000KV Micro FPV Brushless Motor

$12.99

Add to Cart
RCinpower GTS V3 0802 10000/22000/25000/27000KV Micro FPV Brushless Motor
$12.99

Free worldwide shipping on all orders over $90

  • Licensed by top brands to ensure product quality
  • Hassle-free 60 days warranty
  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch
Guaranteed Safe Checkout

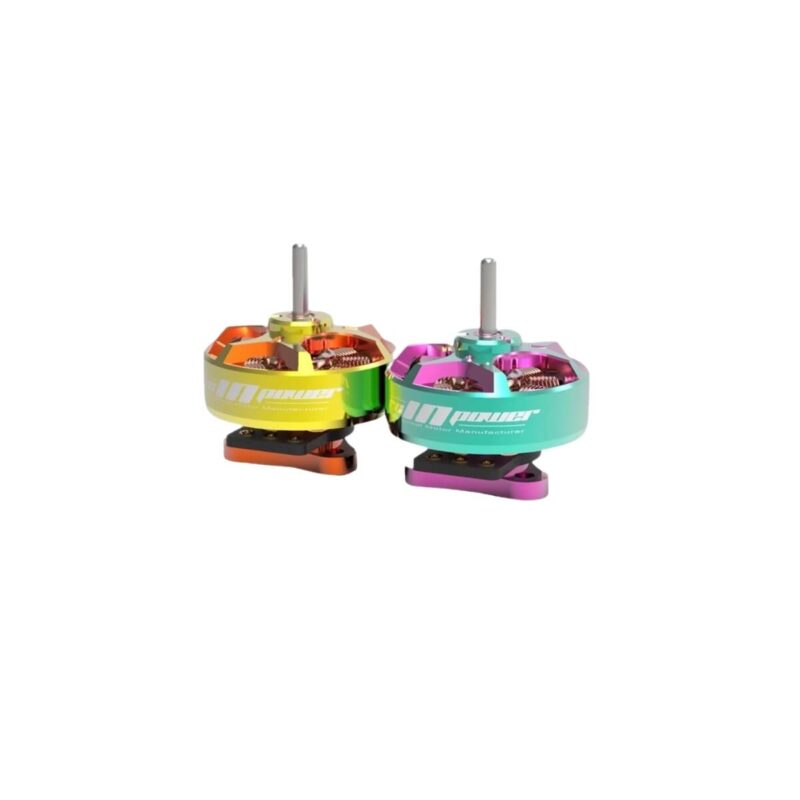

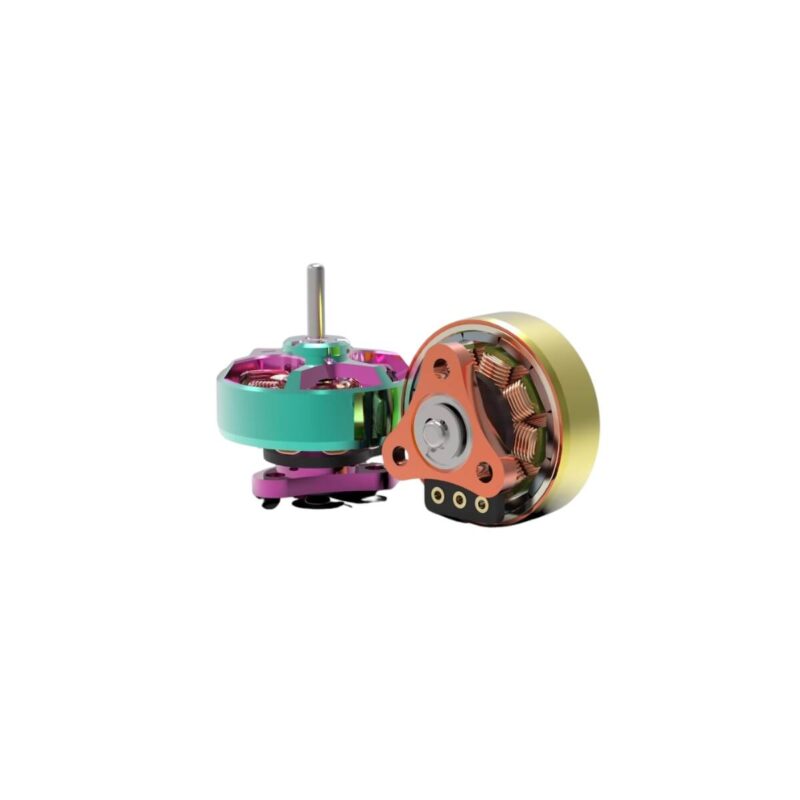

Unleash the Power of the RCinpower GTS V3 0802 Micro Brushless Motors! These game-changing motors ditch the old-school bronze bushings for a premium dual-bearing design.

The result? Longer lifespan, insane performance gains, and lightning-fast throttle response. Experience incredible low-end torque and powerful top-end performance with significantly reduced heat output – you’ll feel the difference instantly!

Featuring plug-and-play 1.25mm connectors compatible with virtually all AIO flight controllers on the market. Thanks to our weight-optimized design, these powerhouses weigh just 1.97g with wires! Pair them with 1.2-1.6″ props and 1S battery for the ultimate indoor racing experience. Get ready to dominate your micro FPV flights!

RCinpower GTS V3 0802 Motor Test Data

rcinpower gts v3 0802 micro fpv brushless motor 10000kv gold orange teal pink test data chart
rcinpower gts v3 0802 micro fpv brushless motor 22000kv gold orange teal pink test data chart
rcinpower gts v3 0802 micro fpv brushless motor 25000kv gold orange teal pink test data chart
rcinpower gts v3 0802 micro fpv brushless motor 27000kv gold orange teal pink test data chart

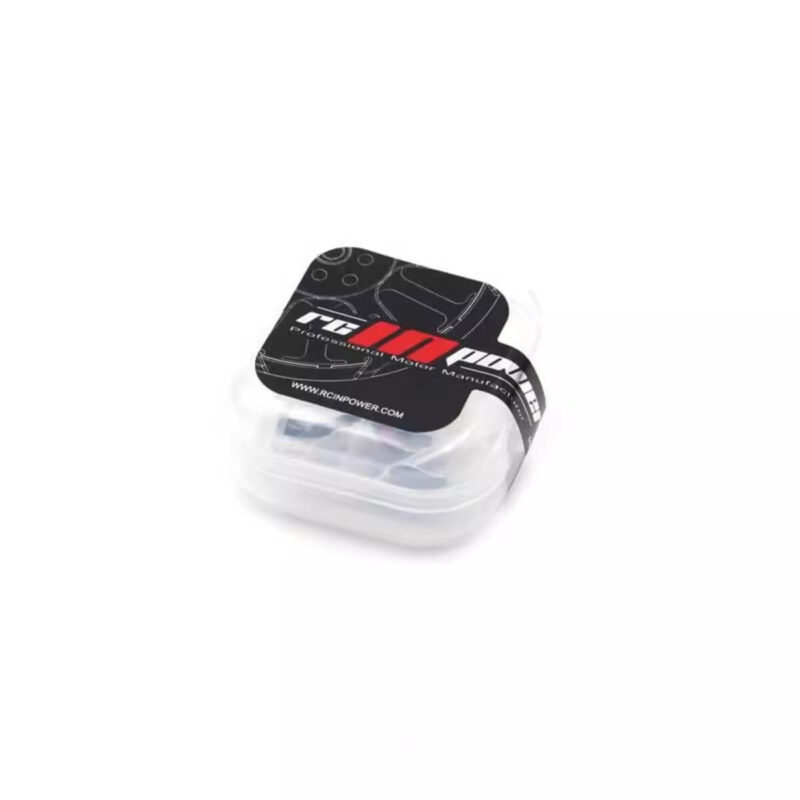

Package Includes

  • 1x RCinpower GTS V3 0802 10000/22000/25000/27000KV Motor
  • 1x Motor Accessories

Additional information

Weight 1.97 g
Brand: No selection

RCinpower
Color: No selection

Gold/Orange, Teal/Pink
Motor KV: No selection

10000, 22000, 25000, 27000

Specs

GTS V3 0802 10000KV Motor

  • KV: 10000
  • Configu-ration: 9N12P
  • Stator Diamter: 8mm
  • Stator Length: 2mm
  • Shaft Diameter: 1mm (1.5 inside)
  • Motor Dimension (Dia.*Len): Φ 11.2*8.2mm
  • Weight (g): 1.97 (with plug)
  • Idle current (5)@5V(A): 0.15
  • No.of Cells (Lipo): 2S
  • Max Continuous Power (W) 3S: 18.5
  • Internal Resistance: 500mΩ
  • Max Current (3S): 2.5A
  • Max Efficiency Current: (1-2A)>82%

GTS V3 0802 22000KV Motor

  • KV: 22000
  • Configu-ration: 9N12P
  • Stator Diamter: 8mm
  • Stator Length: 2mm
  • Shaft Diameter: 1mm (1.5 inside)
  • Motor Dimension (Dia.*Len): Φ 11.2*8.2mm
  • Weight (g): 1.97 (with plug)
  • Idle current (5)@5V(A): 0.2
  • No.of Cells (Lipo): 1S
  • Max Continuous Power (W) 3S: 21.5
  • Internal Resistance: 117mΩ
  • Max Current (3S): 5.8A
  • Max Efficiency Current: (1-2A)>82%

GTS V3 0802 25000KV Motor

  • KV: 25000
  • Configu-ration: 9N12P
  • Stator Diamter: 8mm
  • Stator Length: 2mm
  • Shaft Diameter: 1mm (1.5 inside)
  • Motor Dimension (Dia.*Len): Φ 11.2*8.2mm
  • Weight (g): 1.97 (with plug)
  • Idle current (5)@5V(A): 0.25
  • No.of Cells (Lipo): 1S
  • Max Continuous Power (W) 3S: 24.1
  • Internal Resistance: 105mΩ
  • Max Current (3S): 6.5A
  • Max Efficiency Current: (1-2A)>82%

GTS V3 0802 27000KV Motor

  • KV: 27000
  • Configu-ration: 9N12P
  • Stator Diamter: 8mm
  • Stator Length: 2mm
  • Shaft Diameter: 1mm (1.5 inside)
  • Motor Dimension (Dia.*Len): Φ 11.2*8.2mm
  • Weight (g): 1.97 (with plug)
  • Idle current (5)@5V(A): 0.3
  • No.of Cells (Lipo): 1S
  • Max Continuous Power (W) 3S: 26.6
  • Internal Resistance: 95mΩ
  • Max Current (3S): 7.2A
  • Max Efficiency Current: (1-2A)>82%
