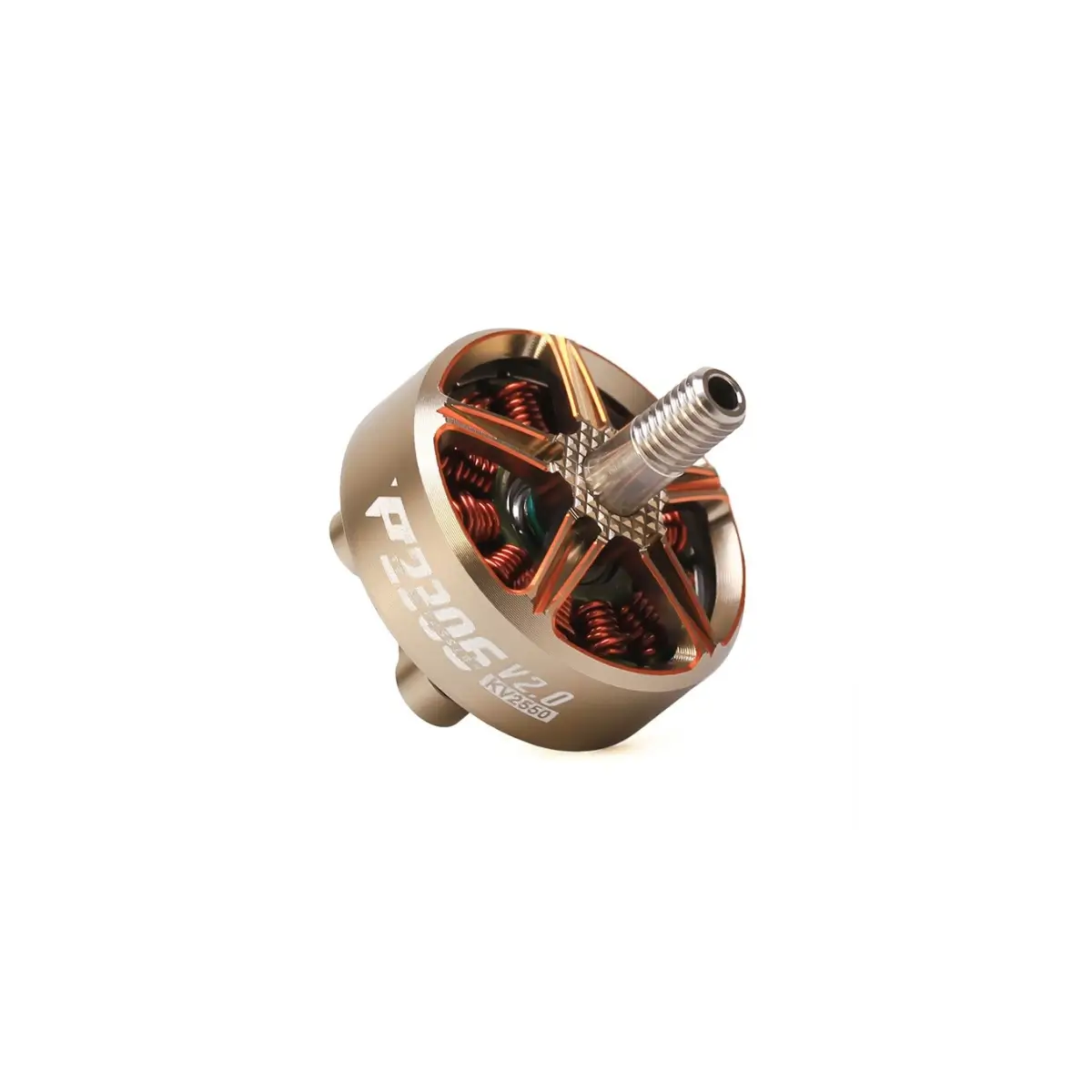

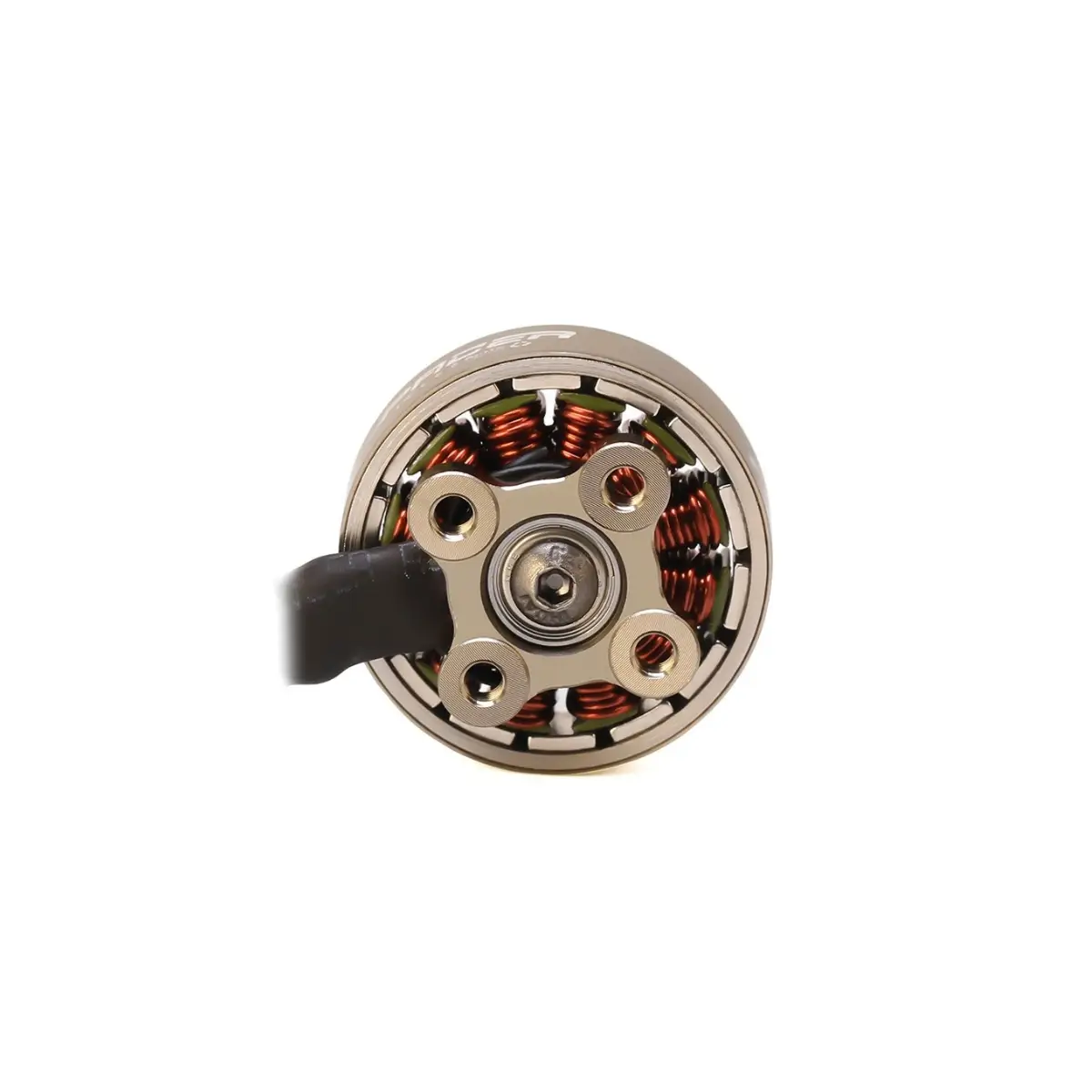

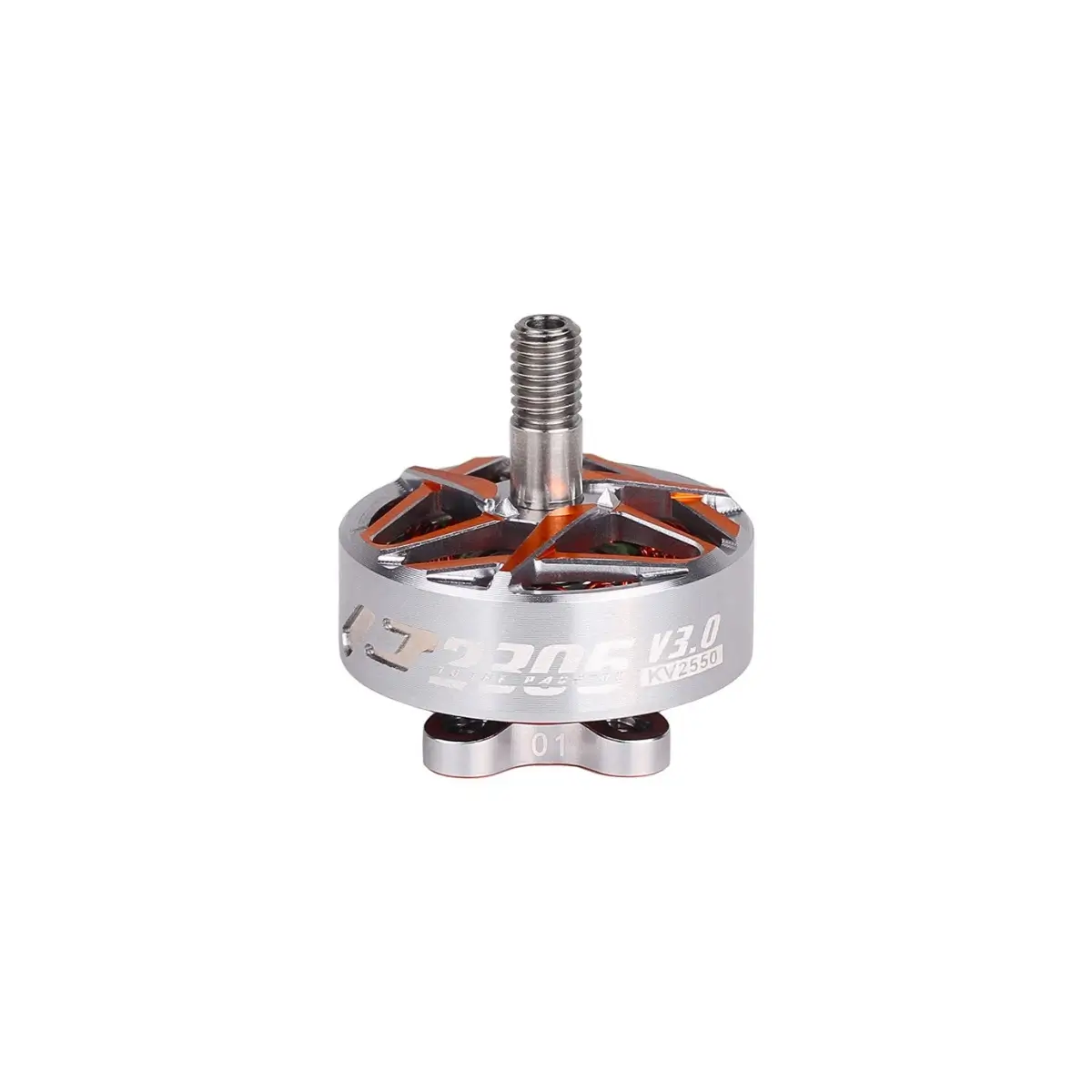

T-Motor P2306 V3 1750/1950/2550KV FPV Drone Brushless Motor for Freestyle – 5″

$23.89

The T-Motor Pacer 2306 V3 is an elite, high-efficiency brushless motor precision-tuned for 5-inch FPV freestyle drones.

Offering a legendary, buttery-smooth linear throttle curve and exceptional low-end torque, it gives pilots maximum control during highly technical lines and tight gap shooting.

Add to Cart
T-Motor P2306 V3 1750/1950/2550KV FPV Drone Brushless Motor for Freestyle - 5″
T-Motor P2306 V3 1750/1950/2550KV FPV Drone Brushless Motor for Freestyle - 5″
$23.89

Free worldwide shipping on all orders over $199

  • Licensed by top brands to ensure product quality
  • Hassle-free 60 days warranty
  • 30 days easy returns
  • U.S. customers: tax is Trump’s Tariffs (10%)
Guaranteed Safe Checkout

The T-Motor Pacer 2306 V3 brings refined performance to the frontline of 5-inch FPV freestyle, offering the ultimate balance of reliable throttle resolution and heavy-duty durability. Perfectly optimized for technical freestyle pilots who value smooth cinematic control over raw, uncontrollable top-end scream, the V3 iteration enhances internal efficiency to maximize flight times and eliminate unwanted prop wash oscillations.

With its signature wide 2306 stator and 12N14P configuration, this motor delivers incredible torque right at the bottom of your throttle stick, allowing for instantaneous punch-outs and precise altitude catches close to the ground. The upgraded bell design improves impact resistance against bando walls, while the high-temperature copper windings ensure thermal stability during back-to-back aggressive batteries.

Whether configured with the 1750KV/1950KV versions for a locked-in, ultra-efficient 6S build or the 2550KV variant for traditional 4S high-RPM response, the Pacer V3 provides predictable handling throughout your entire throttle arc. Complete with flexible mounting options and heavy-duty silicone leads for effortless building, the T-Motor Pacer 2306 V3 is the quintessential freestyle workhorse designed to unlock higher precision in every pack you fly.

Package Includes

  • 1 x T-Motor P2306 V3 1750/1950/2550KV Motor
  • 1 x Parts Bag

Additional information

Weight 32 g
Dimensions 28.6 × 28.6 × 30 mm
Brand: No selection

T-Motor

Motor KV: No selection

1750, 1950, 2550

Specs

1750KV Version

  • KV: 1750KV
  • Configuration: 12N14P
  • Shaft Diameter: 4mm
  • Lead: 20# 150mm
  • Weight (Incl. Cable): 32g
  • Rated Voltage (Lipo): 6S
  • Idle Current (10V): 0.85A
  • Max. Power (60s): 864W
  • Peak Current (60s): 34.8A

1950KV Version

  • KV: 1950KV
  • Configuration: 12N14P
  • Shaft Diameter: 4mm
  • Lead: 20# 150mm
  • Weight (Incl. Cable): 32g
  • Rated Voltage (Lipo): 6S
  • Idle Current (10V): 1.2A
  • Max. Power (60s): 1000W
  • Peak Current (60s): 40.4A

2550KV Version

  • KV: 2550KV
  • Configuration: 12N14P
  • Shaft Diameter: 4mm
  • Lead: 20# 150mm
  • Weight (Incl. Cable): 32g
  • Rated Voltage (Lipo): 4S
  • Idle Current (10V): 1.95A
  • Max. Power (60s): 634W
  • Peak Current (60s): 38.8A
