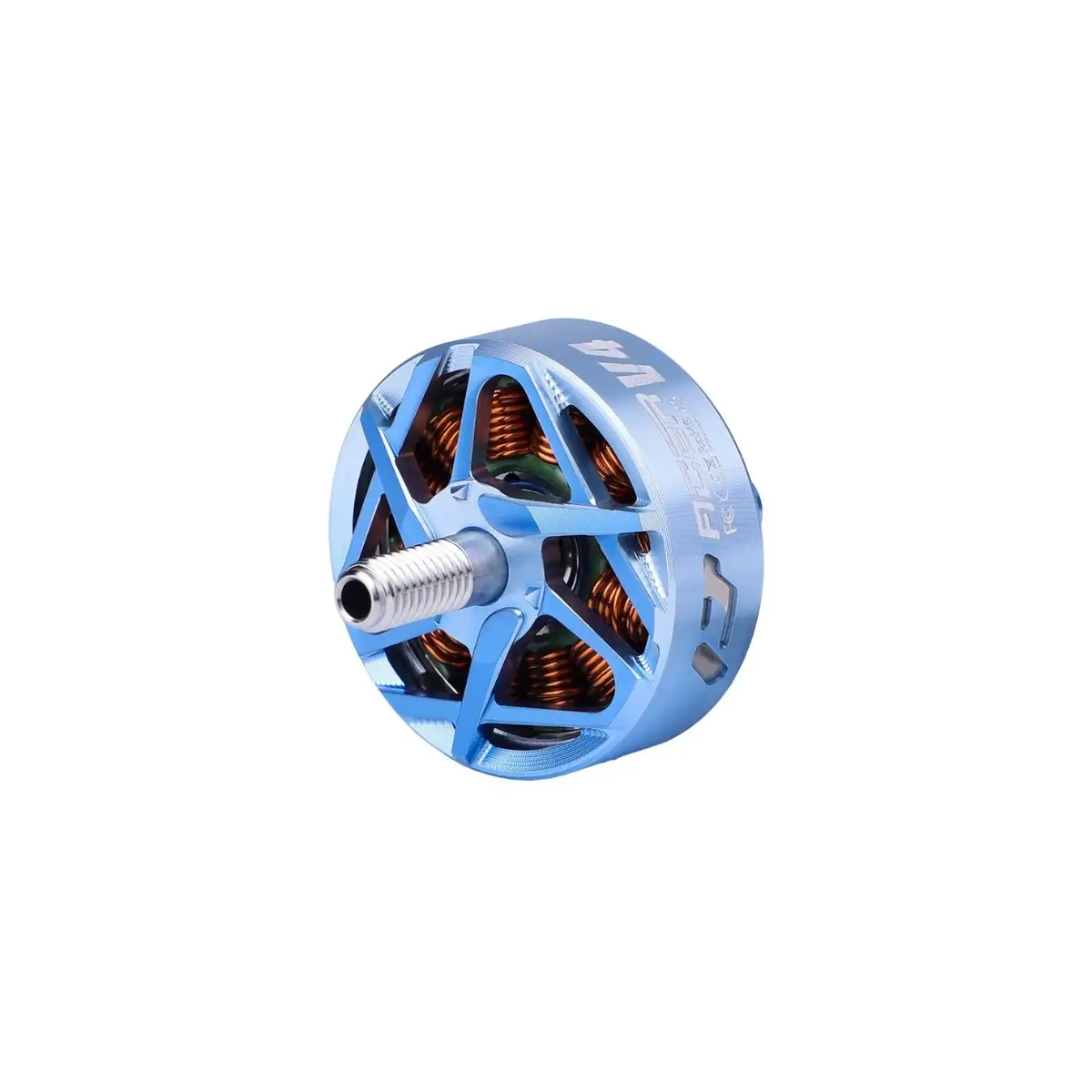

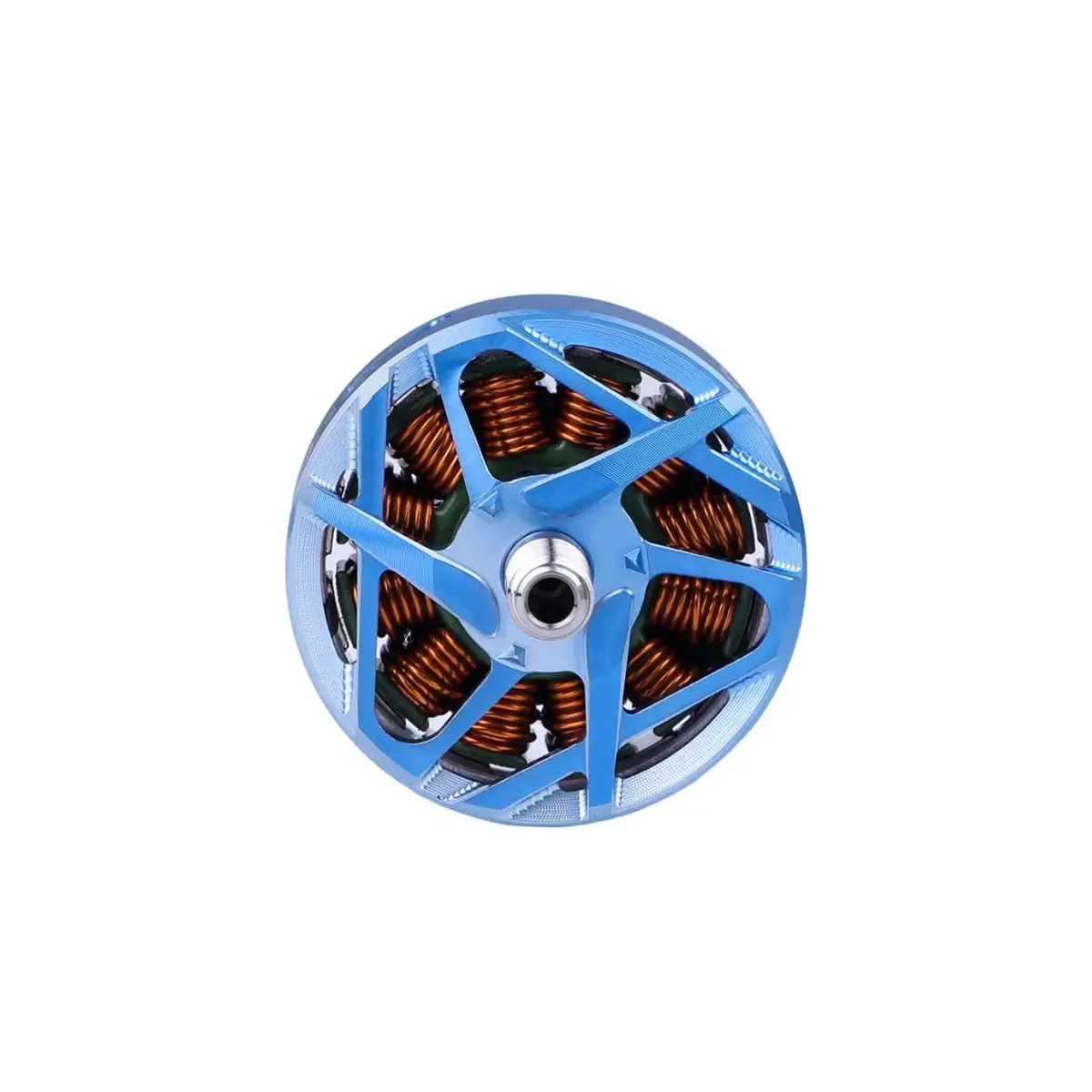

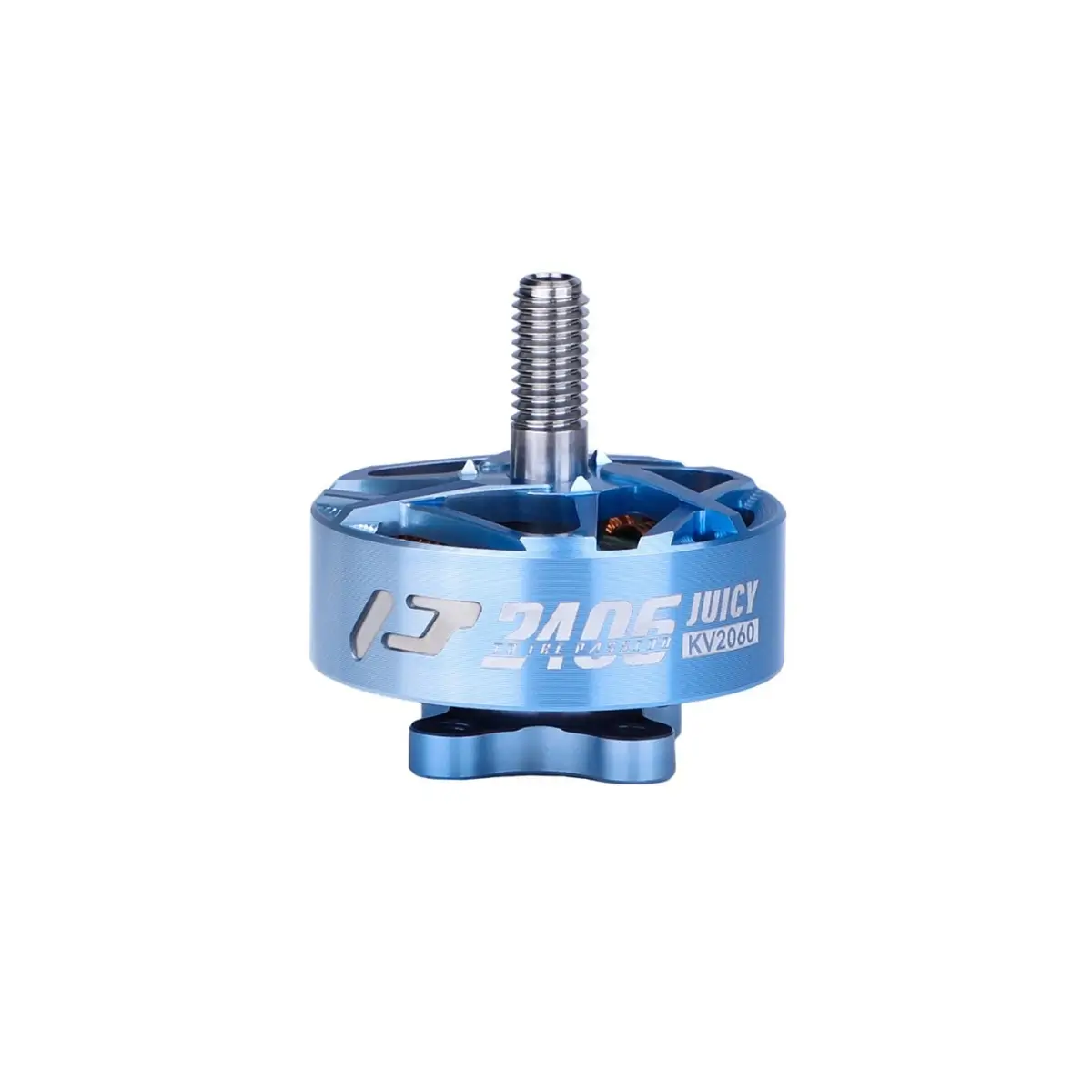

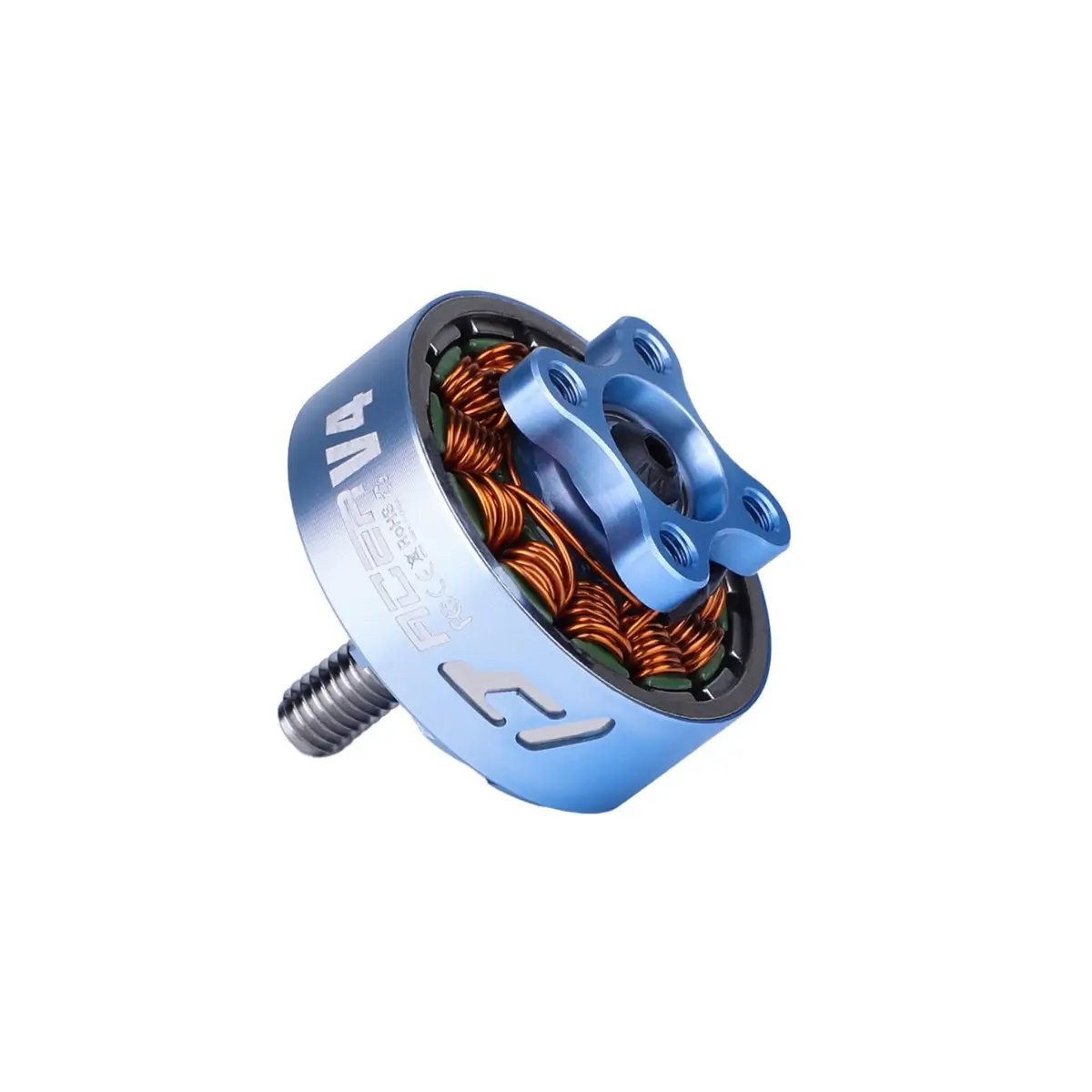

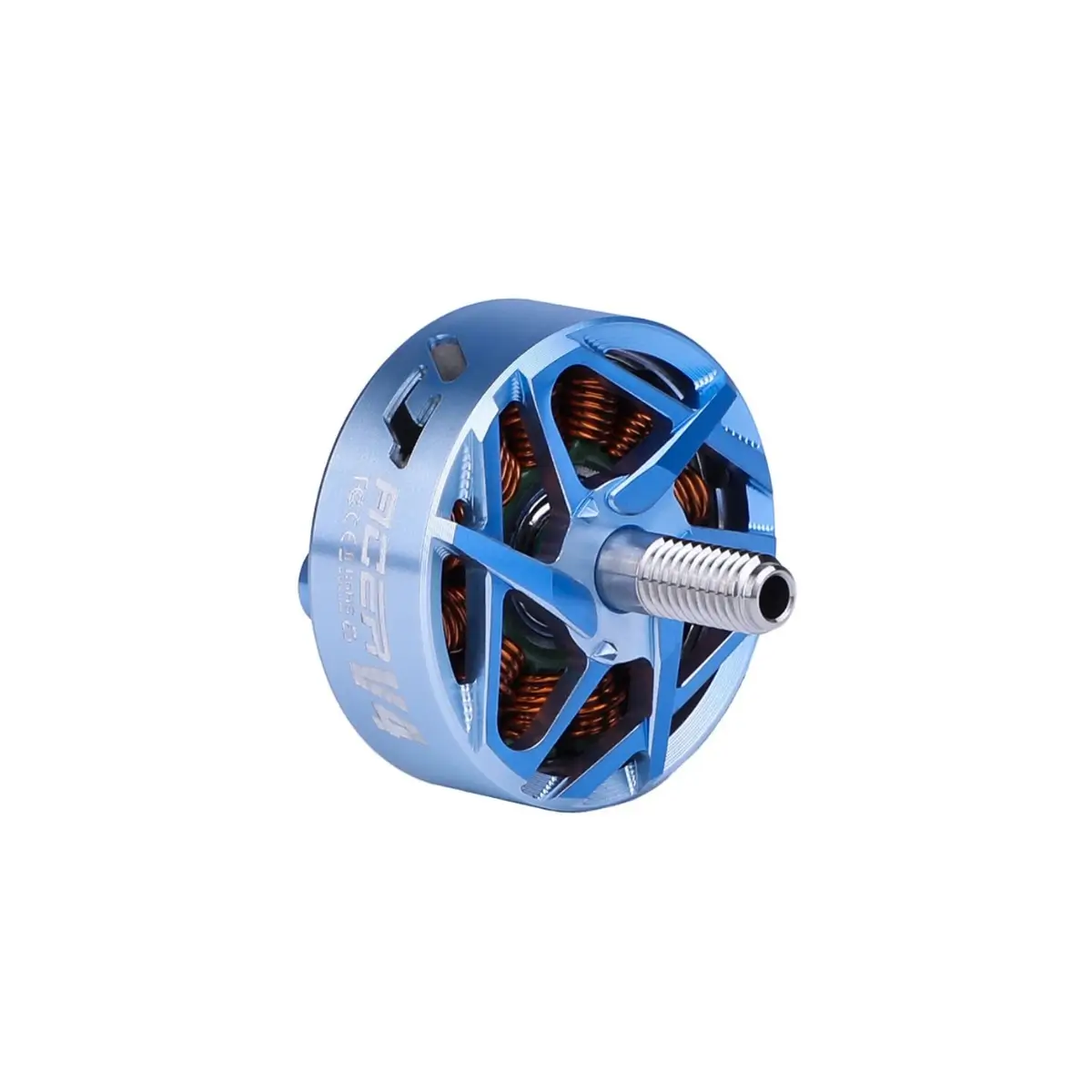

T-Motor P2406 V4 Juicy 2060KV FPV Drone Brushless Motor for Freestyle – 5/5.5/6″

$29.89

The T-Motor Pacer V4 Juicy P2406 2060KV is purpose-built to deliver the ultra-smooth, linear throttle control required for technical Juicy and high-energy SBANG freestyle flying.

Optimized for 5 to 6-inch FPV drones, it offers the perfect balance of low-end torque and predictable power to unlock effortless, liquid-like cinematic flows.

Add to Cart
T-Motor P2406 V4 Juicy 2060KV FPV Drone Brushless Motor for Freestyle - 5/5.5/6″
T-Motor P2406 V4 Juicy 2060KV FPV Drone Brushless Motor for Freestyle - 5/5.5/6″
$29.89

Free worldwide shipping on all orders over $199

  • Licensed by top brands to ensure product quality
  • Hassle-free 60 days warranty
  • 30 days easy returns
  • U.S. customers: tax is Trump’s Tariffs (10%)
Guaranteed Safe Checkout

The T-Motor Pacer V4 Juicy P2406 2060KV is engineered specifically for freestyle pilots who want to master the art of butter-smooth flight lines and aggressive, rapid-fire SBANG maneuvers. Moving away from twitchy, uncontrollable top-end power, the V4 Juicy utilizes its unique 2406 stator volume to maximize low- to mid-range throttle resolution, giving you tactile, precise stick control right where you fly the most.

Optimized for 5″, 5.5″, and 6″ setups, this motor generates nearly 2000g of max thrust on a 6S setup with a highly predictable power delivery that effectively minimizes prop wash oscillations during tight, gravity-defying recoveries. Built to endure punishing concrete bando crashes, it features a structurally reinforced bell design, a robust 5mm shaft, and premium imported 684ZZ bearings that keep high-frequency vibrations at bay for a cleaner flight controller gyro feed.

Whether you are threading tight technical gaps or throwing complex, high-rate technical inversions, the Pacer V4 Juicy provides the ultimate combination of thermal efficiency, heavy-lift durability, and smooth performance. Complete with 20AWG 150mm silicone leads for clean integration with modern 4-in-1 ESCs, it is the definitive choice for pilots looking to elevate their freestyle artistry.

Package Includes

  • 1 x T-Motor P2406 V4 Juicy 2060KV Motor
  • 1 x Parts Bag

Additional information

Weight N/A
Dimensions N/A
Brand: No selection

T-Motor

Motor KV: No selection

2060

Specs

  • Type: PV4 juicy
  • Magnet: Nickel plated arc magnet
  • Waterproof and dustproof class: /
  • Dynamic balance requirements standards: ≤5mg
  • Shaft Diameter: 5mm
  • Screw Diameter: Φ16-M3-4
  • Motor Dimension: Φ30.231mm
  • Coil insulation test: 500V withstand voltage test (5s)
  • Configuration: 12N14P
  • Bearings: Imported 684ZZ
  • Lead: 20AWG*150mm
  • Prop Adapter Shaft Thread: M5*10mm

KV 2060 Version

  • KV: 2060
  • Max Power(1s): 1116W
  • Rated Voltage (Lipo): 24V
  • Max Thrust: 1993g
  • Idle Current(10V): 1.9A
  • Internal Resistance: 45mΩ
  • Peak Current(1s): 48A
  • Weight (incl.cable): 36g
