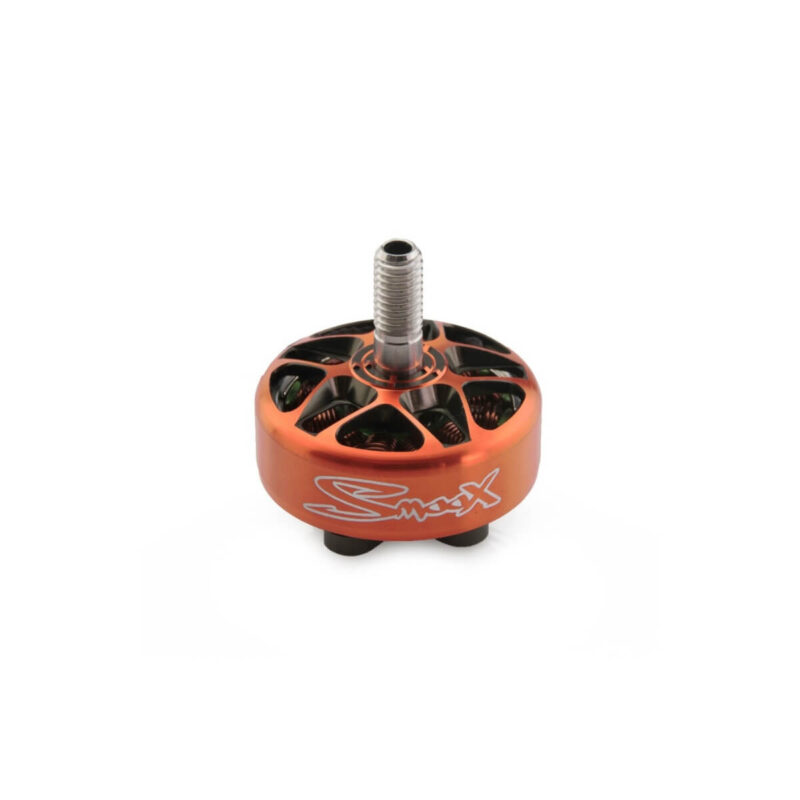

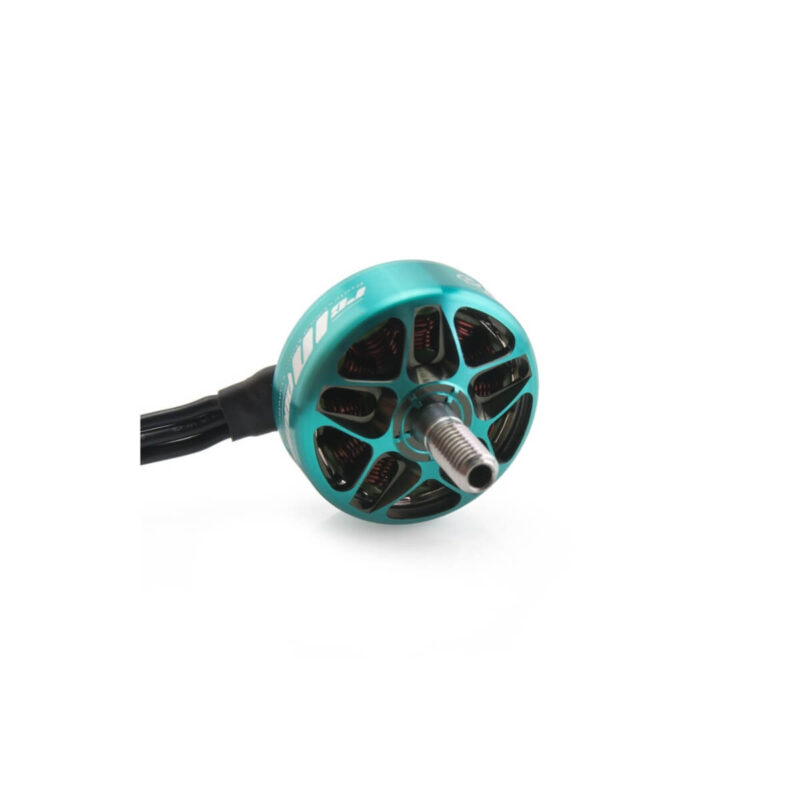

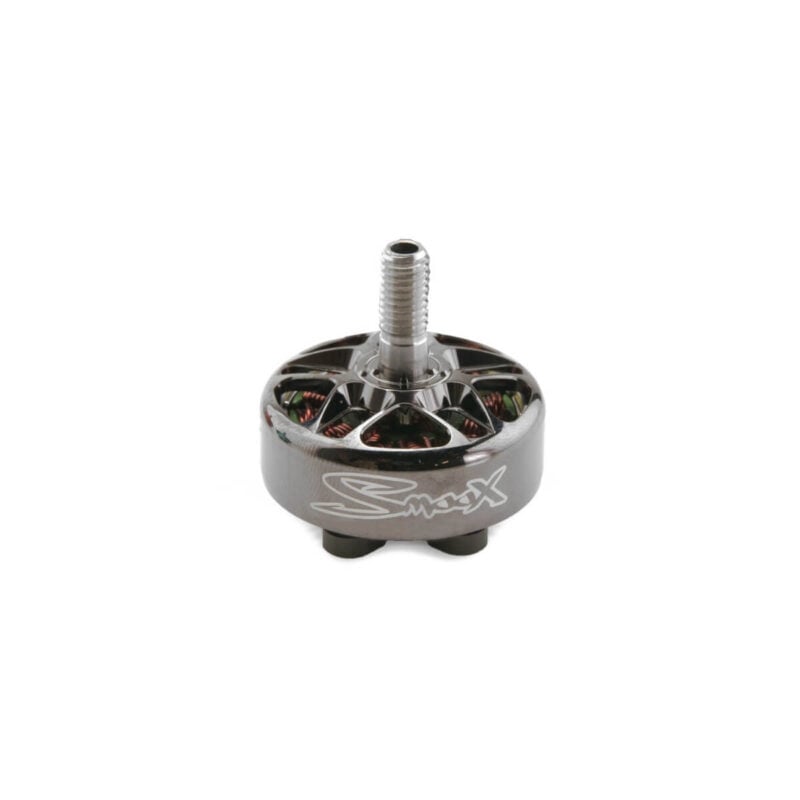

RCinpower SmooX 2306 Plus 1350/1880/2280/2580KV FPV Brushless Motor
$22.99

Free worldwide shipping on all orders over $90

  • Licensed by top brands to ensure product quality
  • Hassle-free 60 days warranty
  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch
Guaranteed Safe Checkout

The SmooX 2306 Plus Motor is a powerful new motor by RCINPOWER! Choose a KV option: 1350KV, 1880KV, 2280KV/2580KV.

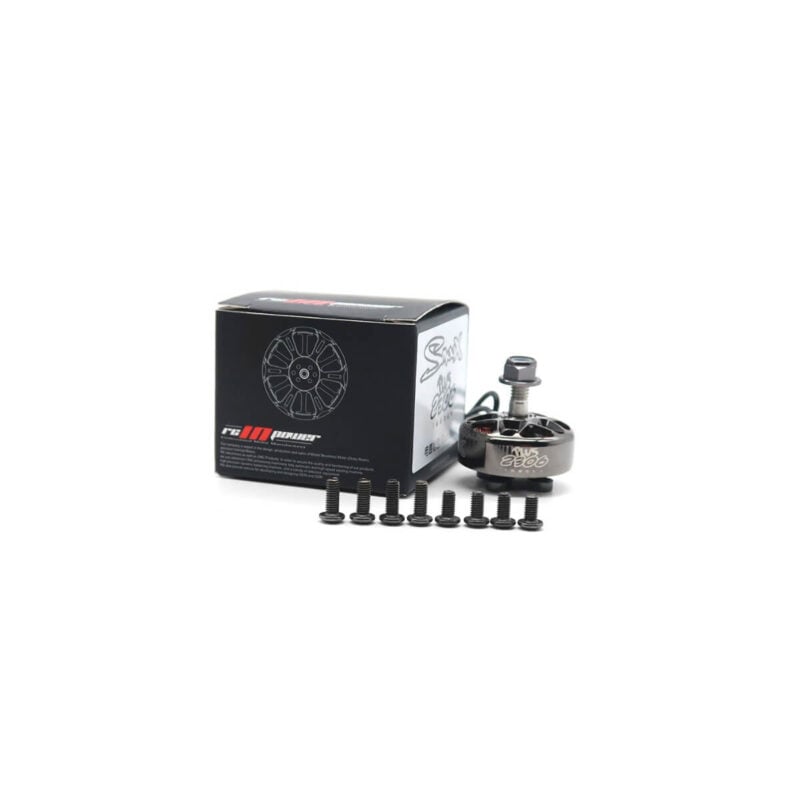

Package Includes

  • 1x RCinpower SmooX 2306 Plus 1350/1880/2280/2580KV Motor
  • 1x Motor Accessories

RCinpower SmooX 2306 Plus Motor Test Data

rcinpower smoox 2306 plus fpv brushless motor 1350kv test data chart
rcinpower smoox 2306 plus fpv brushless motor 1880kv test data chart
rcinpower smoox 2306 plus fpv brushless motor 2280kv test data chart
rcinpower smoox 2306 plus fpv brushless motor 2580kv test data chart

Additional information

Weight 33 g
Brand: No selection

RCinpower
Motor KV: No selection

1350, 1880, 2280, 2580
Color: No selection

Black, Orange, Teal/Blue

Specs

SmooX 2306 Plus 1350KV Motor

  • KV: 1350
  • Configu-ration: 12N14P
  • Stator Diamter: 23mm
  • Stator Length: 6.5mm
  • Shaft Diameter: 4mm (Hollow)
  • Motor Dimension (Dia.*Len): Φ 29*30.5mm
  • Weight (g): 33 (3cm Wire)
  • Idle current (10)@10V(A): 0.95
  • No.of Cells (Lipo): 4~6S
  • Max Continuous Power (W) 5S: 600
  • Internal Resistance: 90mΩ
  • Max Current (5S): 25A
  • Max Efficiency Current: (2-6A)>86%

SmooX 2306 Plus 1880KV Motor

  • KV: 1880
  • Configu-ration: 12N14P
  • Stator Diamter: 23mm
  • Stator Length: 6.6mm
  • Shaft Diameter: 4mm (Hollow)
  • Motor Dimension (Dia.*Len): Φ 29*30.5mm
  • Weight (g): 33 (3cm Wire)
  • Idle current (10)@10V(A): 1.35
  • No.of Cells (Lipo): 5~6S
  • Max Continuous Power (W) 5S: 900
  • Internal Resistance: 49mΩ
  • Max Current (5S): 36A
  • Max Efficiency Current: (3-7A)>86%

SmooX 2306 Plus 2280KV Motor

  • KV: 2280
  • Configu-ration: 12N14P
  • Stator Diamter: 23mm
  • Stator Length: 6.6mm
  • Shaft Diameter: 4mm (Hollow)
  • Motor Dimension (Dia.*Len): Φ 29*30.5mm
  • Weight (g): 33 (3cm Wire)
  • Idle current (10)@10V(A): 1.95
  • No.of Cells (Lipo): 4~5S
  • Max Continuous Power (W) 5S: 860
  • Internal Resistance: 40mΩ
  • Max Current (5S): 40A
  • Max Efficiency Current: (4-8A)>86%

SmooX 2306 Plus 2580KV Motor

  • KV: 2580
  • Configu-ration: 12N14P
  • Stator Diamter: 23mm
  • Stator Length: 6.6mm
  • Shaft Diameter: 4mm (Hollow)
  • Motor Dimension (Dia.*Len): Φ 29*30.5mm
  • Weight (g): 33 (3cm Wire)
  • Idle current (10)@10V(A): 2.3
  • No.of Cells (Lipo): 4~5S
  • Max Continuous Power (W) 5S: 1100
  • Internal Resistance: 30mΩ
  • Max Current (5S): 55A
  • Max Efficiency Current: (4-9A)>85%
