The MATEN 5.8G 2.5W VTX high-power image transmission newly developed by the GEPRC team is now officially released. Its performance is very powerful, with 5 adjustable power levels and a maximum power of up to 2500mW.
The transmission signal is very stable and the penetration ability is excellent.

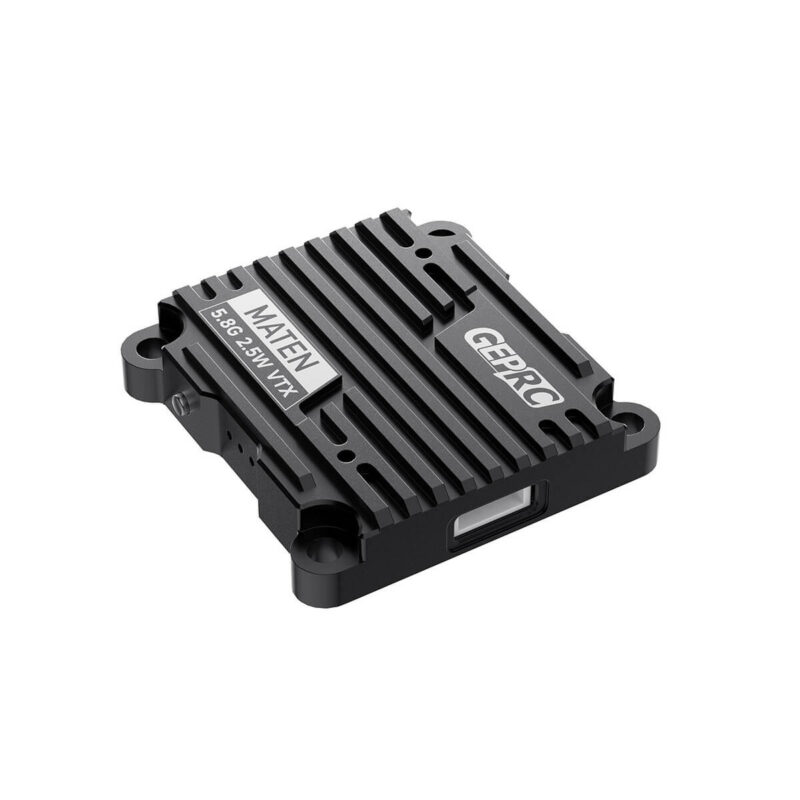

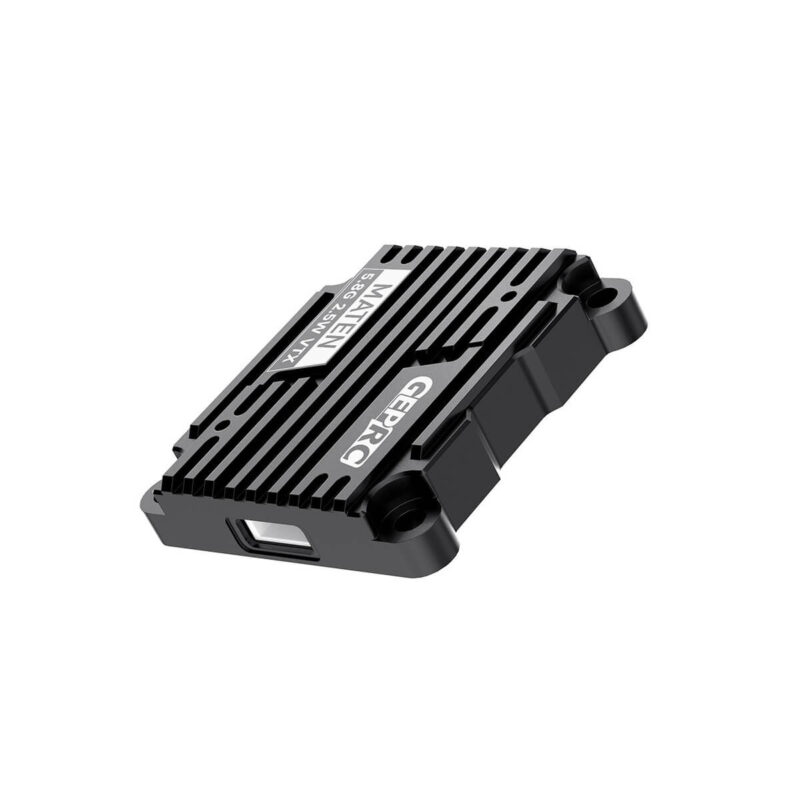

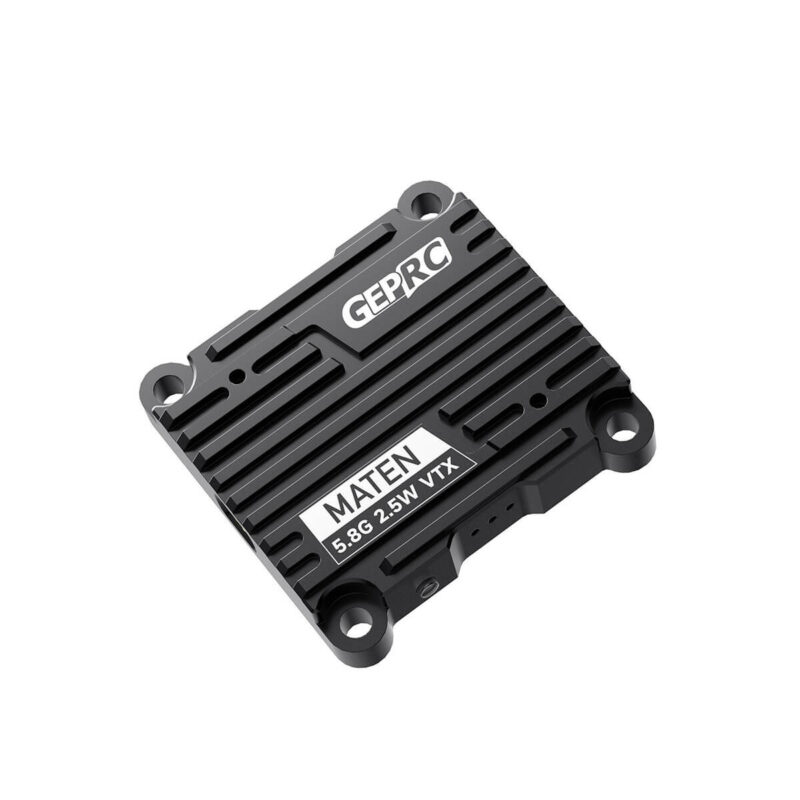

MATEN 5.8G 2.5W VTX uses high-strength aluminum alloy CNC shell to assist heat dissipation.The unique appearance design stronger impact resistance and better heat dissipation performance.

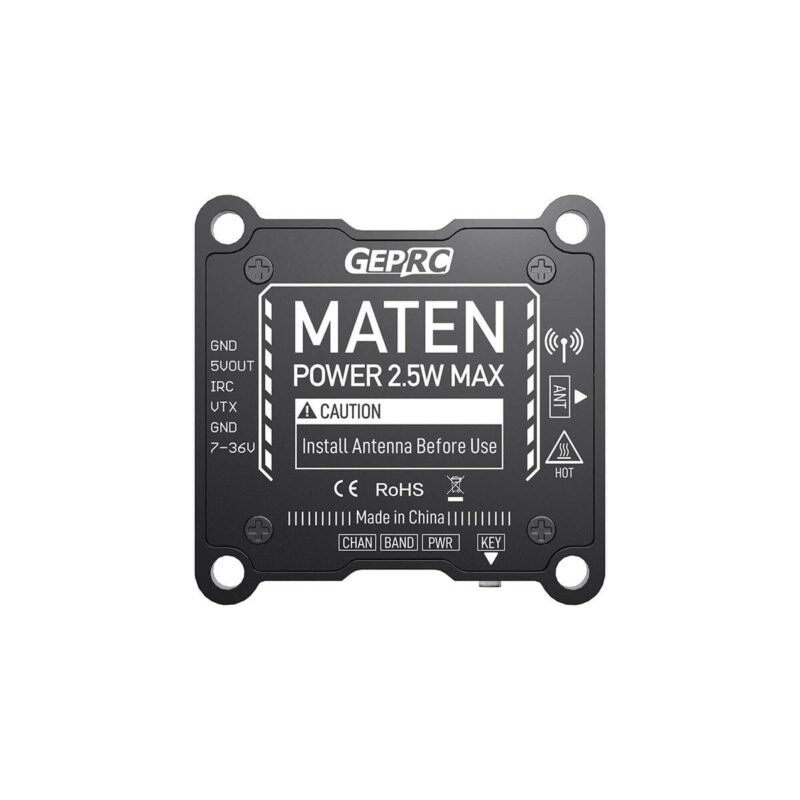

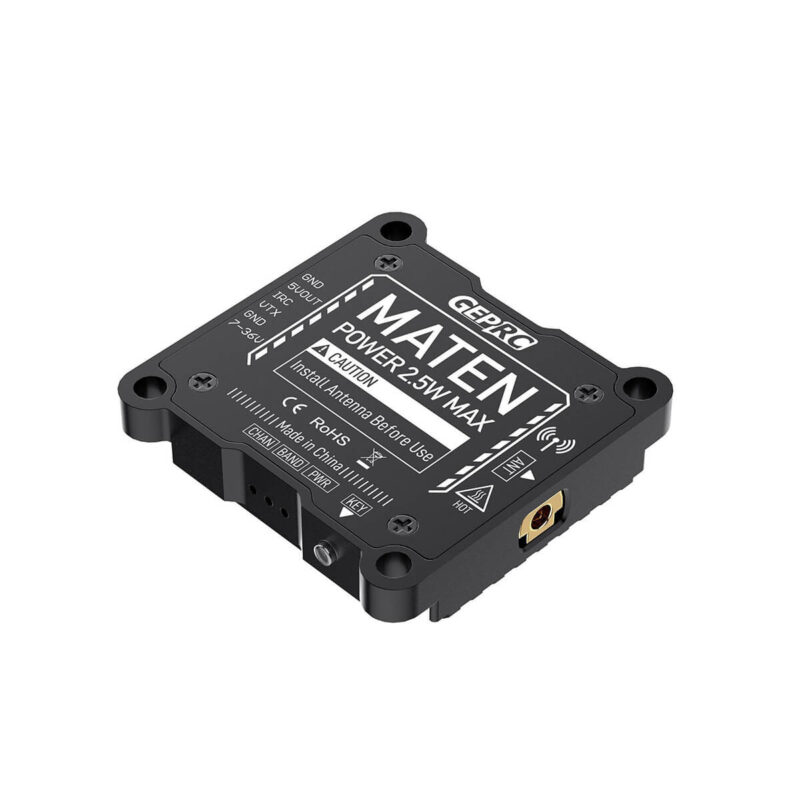

It supports the IRC Tramp protocol and can use the OSD to quickly adjust parameters. It has a wide voltage input of 7-36V and temperature control protection function to prevent overheating and burning. Support 30.5×30.5mm(M3) installation hole position.
Package Includes
- 1 x GEPRC MATEN 5.8G 2.5W VTX
- 1 x MMCX Copper tube antenna
- 1 x MMCX to SMA connector
- 1 x sh1.0 6P Connecting cable
- 5 x M3*7 screws
- 5 x M3*8 screws
- 5 x M3 x 10 hexagon
- 5 x M3*5 isolation column
- 5 x M3 nylon nut
- 1 x Product description
