GEPRC MATEN VTX PRO 2.5W 5.8GHz Video Transmitter – MMCX

The GEPRC MATEN 5.8G 2.5W FPV VTX PRO high-power image transmission newly developed by the GEPRC team is now officially released. Performance of FPV video transmitter is very powerful, with 5 adjustable power levels and a maximum power of up to 2500mW. The transmission signal is very stable and the penetration ability is excellent.

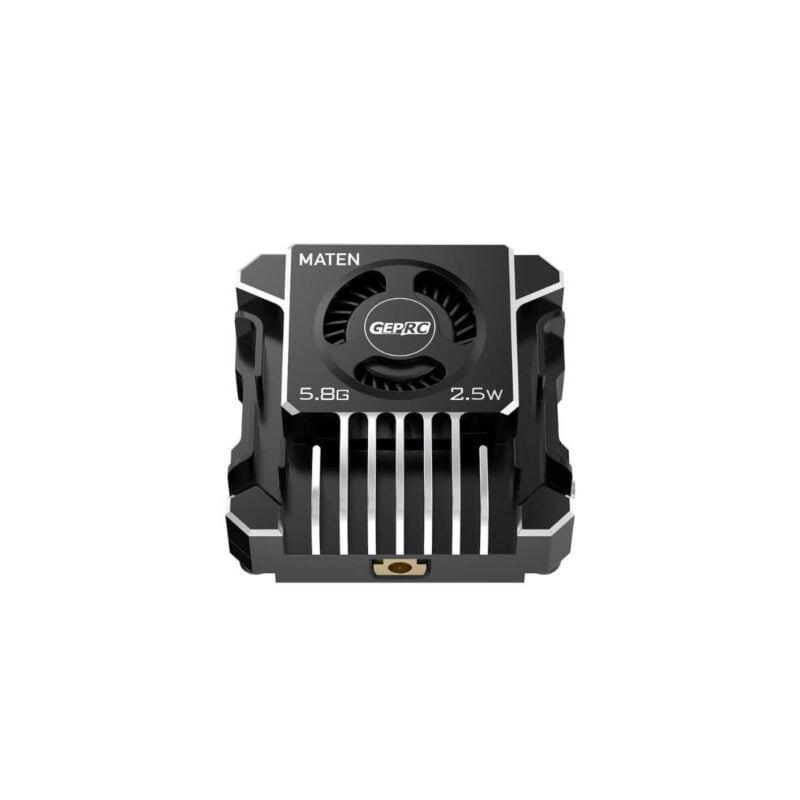

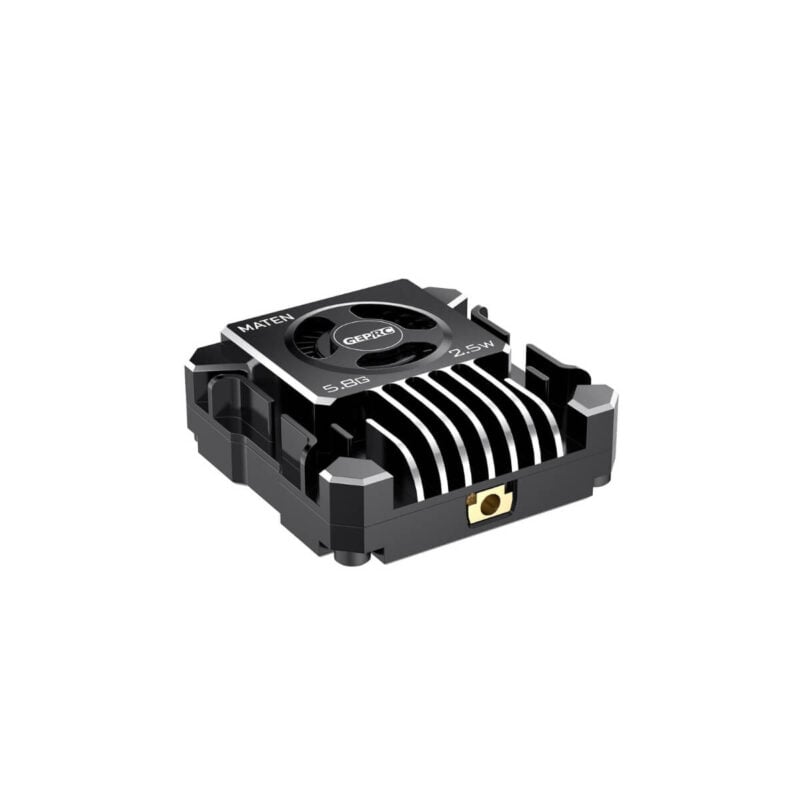

This GEPRC MATEN 5.8G 2.5W VTX PRO uses high-strength aluminum alloy CNC shell to assist heat dissipation. The unique appearance design and active fan cooling provide stronger impact resistance and better heat dissipation performance. It supports the IRC Tramp protocol and can use the OSD to quickly adjust parameters. The built-in microphone can transmit the sound of the FPV drone in real time.

It has a wide voltage input of 7-36V and temperature control protection function to prevent overheating and burning.It supports 72 transmission channels. Supports two installation hole positions: 20*20mm and 30.5*30.5mm.

Package Includes

• 1 x GEPRC MATEN 5.8G 2.5W VTX PRO
• 1 x MMCX Copper tube antenna
• 1 x MMCX to RP-SMA（Internal needle）connector
• 1 x sh1.0 6P Connecting cable
• 6 x M2*5 screw
• 4 x M2*12 screw

Changelog

• March 8, 2024: The red Version has stopped production and updated to silver version for bettedr performance in heat dissipation.
• January 12, 2024: Channel changed from 48CH to 72CH.

Notes

1. Install Antenna before use.
2. To prevent overheating,provide constant airflow and a well ventilated environment.Install a cooling fan if operating in confined conditions.
3. The 5V Output is for a Camera/Cooling Fan use only! Do not connect Power Input/Battery to 5V Out. Serious damage will occur to VTX.
