Special connection plate system: Connect FC via 7P cable to achieve connection between BB, LED, receiver, GPS and flight control, X-cam gimble , greatly reducing the number of flight cables of the aircraft.

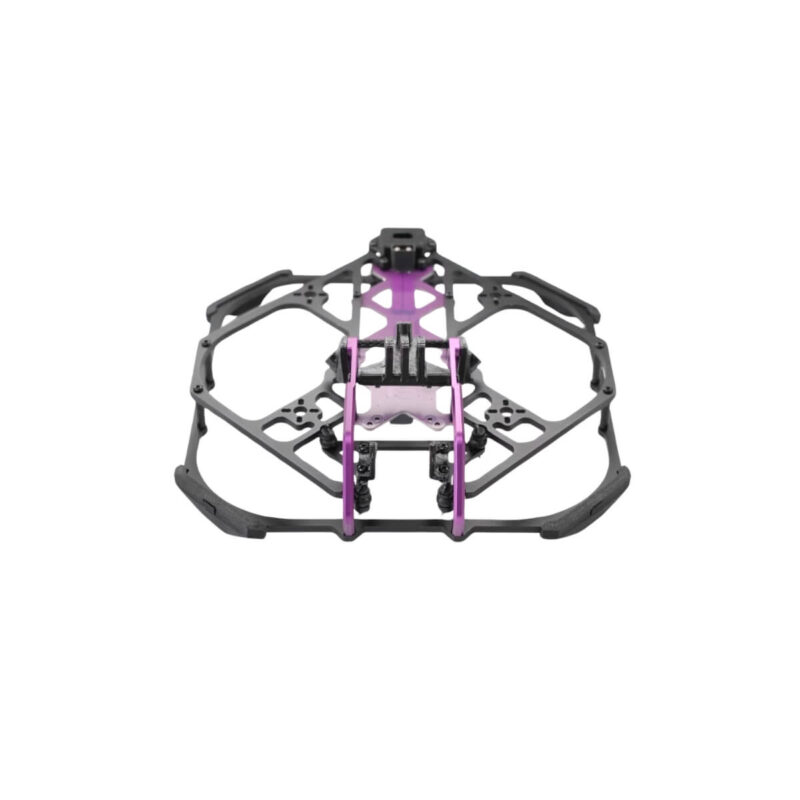

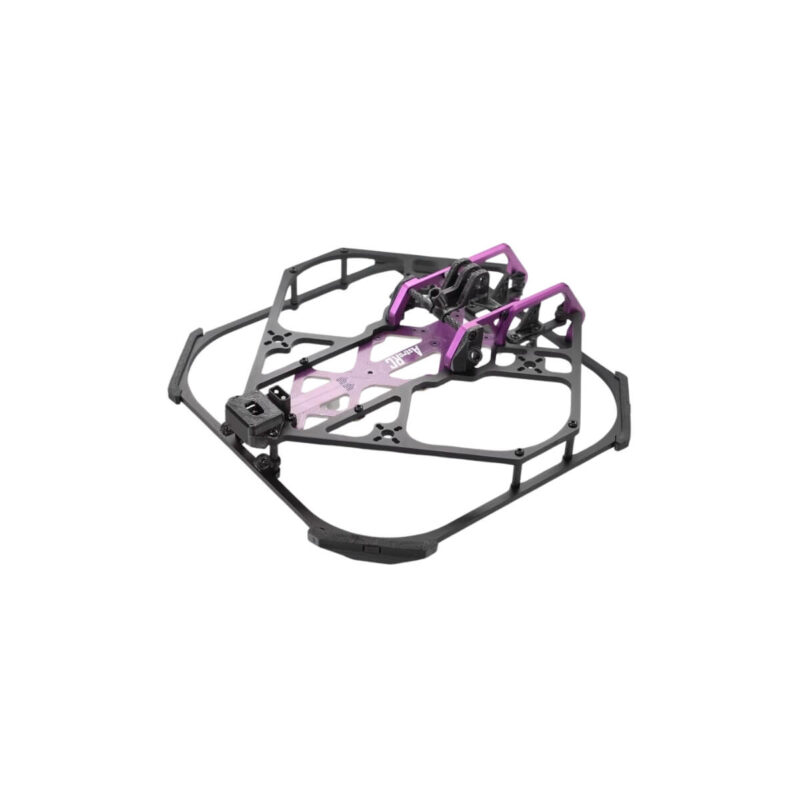

Experience unparalleled agility with the AstroRC AirTank 30 3″ FPV Frame Kit. This ultra-compact drone frame features a mere 110mm axle-to-axle distance, potentially achieving sub-250g total weight with battery. Built with full carbon fiber and 7075 aluminum alloy, it offers durability without compromising on weight.
The AirTank 30 frame kit supports 9/12mm motor holes and 4S/6S batteries, accommodating various setups. Its innovative electrical connection system simplifies installation, reducing cable clutter. The frame is compatible with HD image transmission and X-CAM single-axis gimbals, featuring a shock-absorbing design for smooth footage.
Perfect for pilots seeking a responsive, streamlined flying experience, the AirTank 30 delivers professional-grade performance in a remarkably small package.
Package Includes
- 1 x AstroRC AirTank 30 3″ FPV Frame Kit

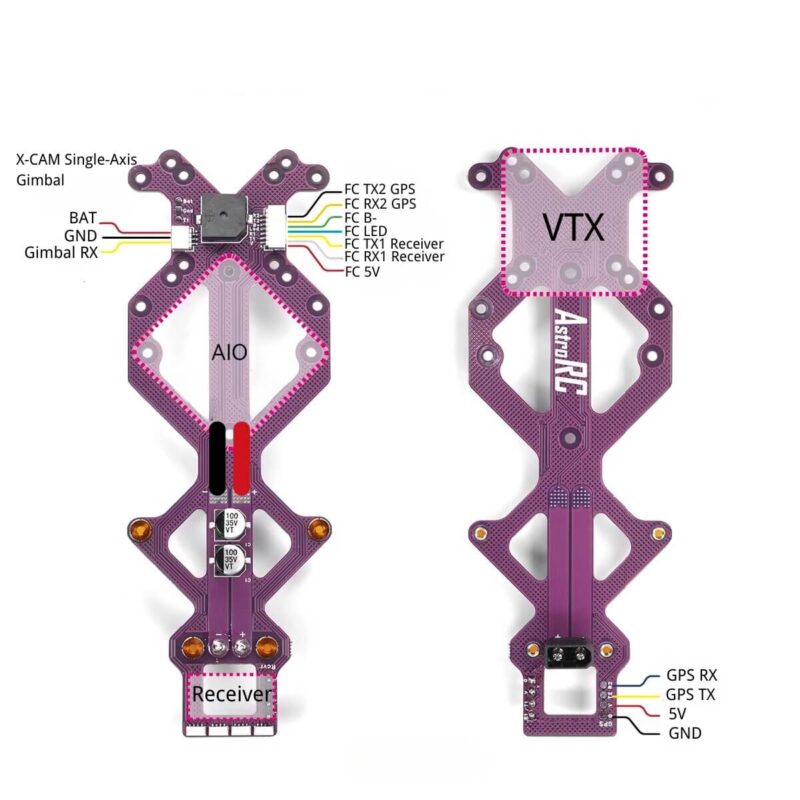

PCB Wiring Diagram
I bought it and rushed to try it out, it feels great and makes building fpv drones a pleasure.
Assembly is simple. Compared to most 2.5” frame kit, the core PCB board avoids interfering with the flight controls completely. The feeling of flying is good heat dissipation, there are a few times the drone rubbed the wall, but did not suck on the wall.
Nice, the AirTank 30 frame has a nice look and design.
