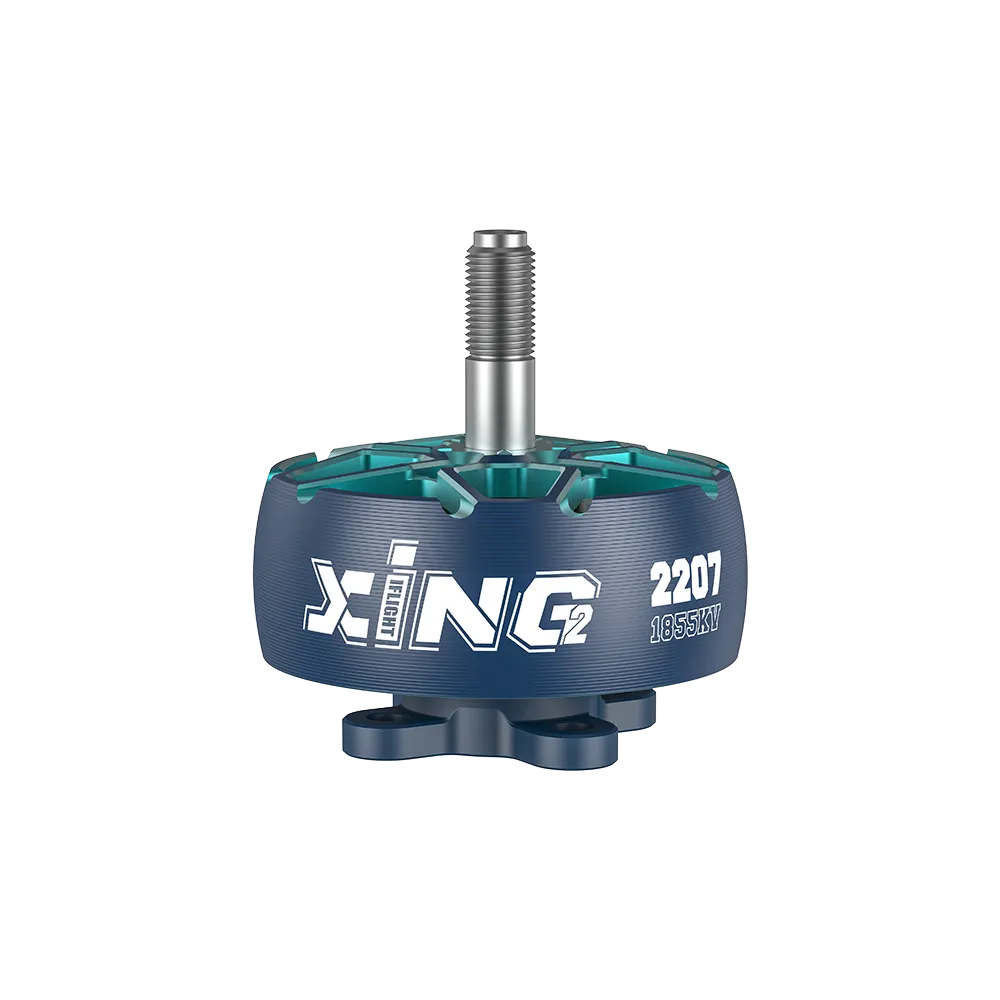

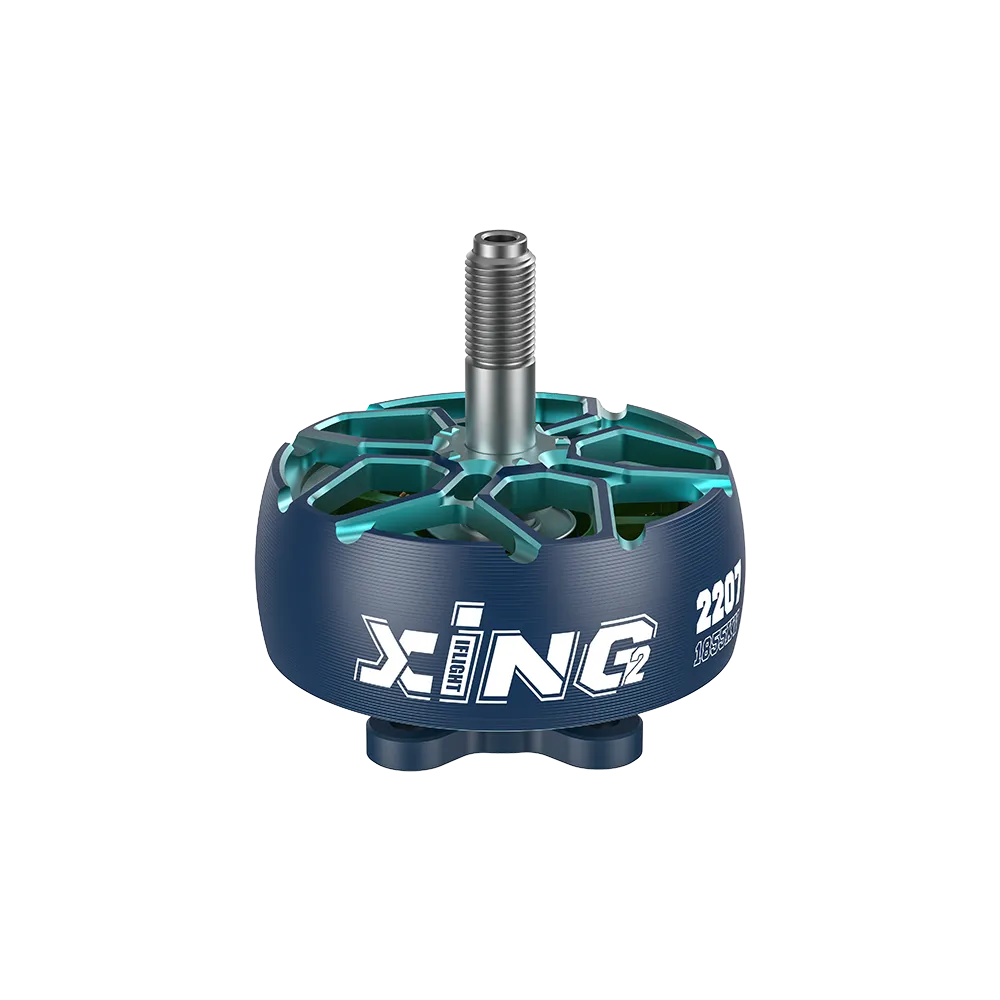

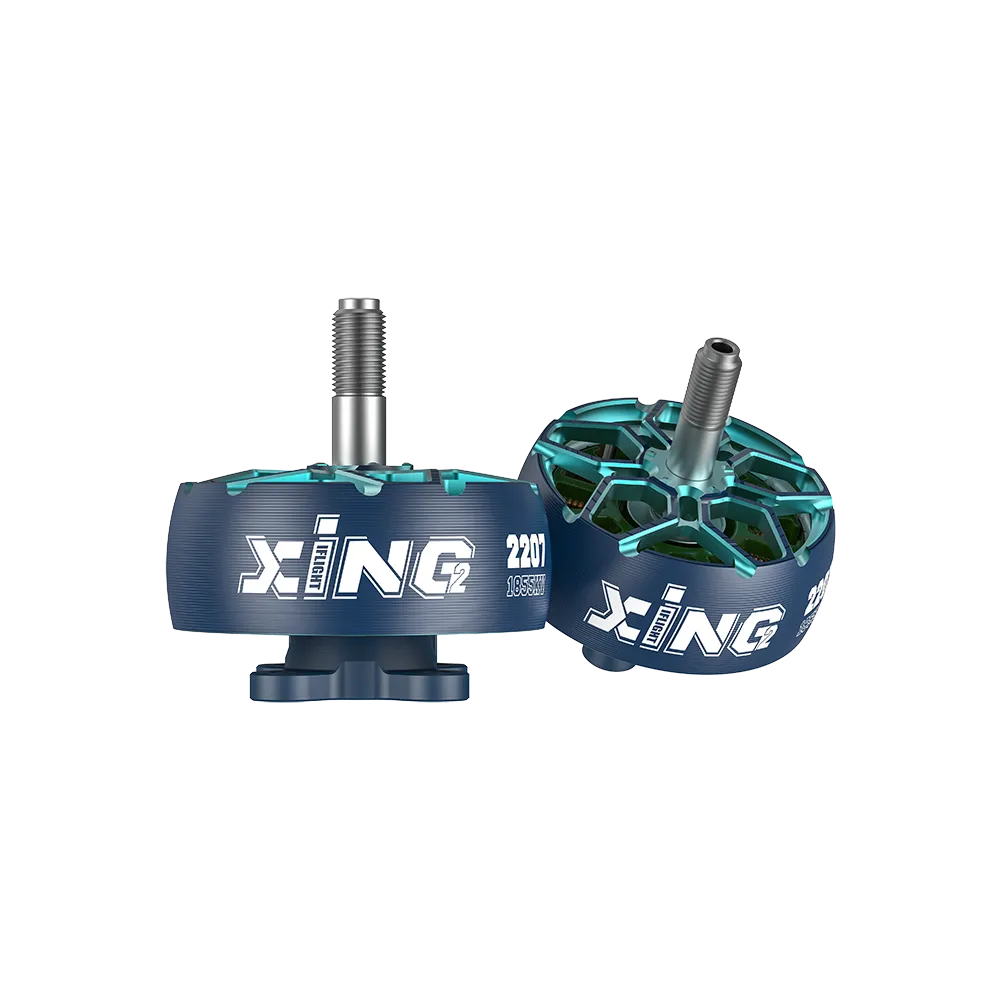

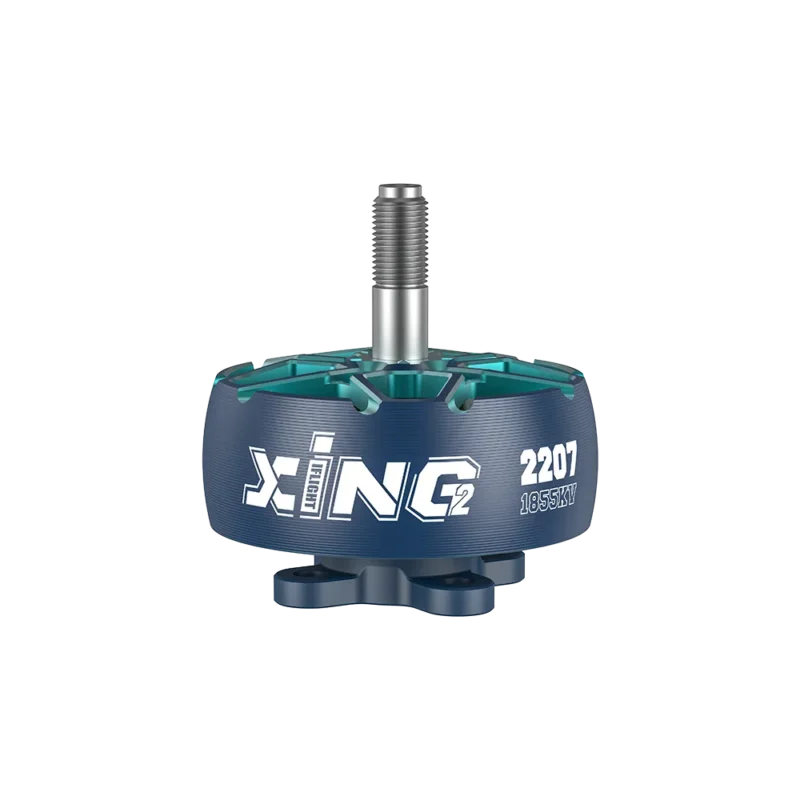

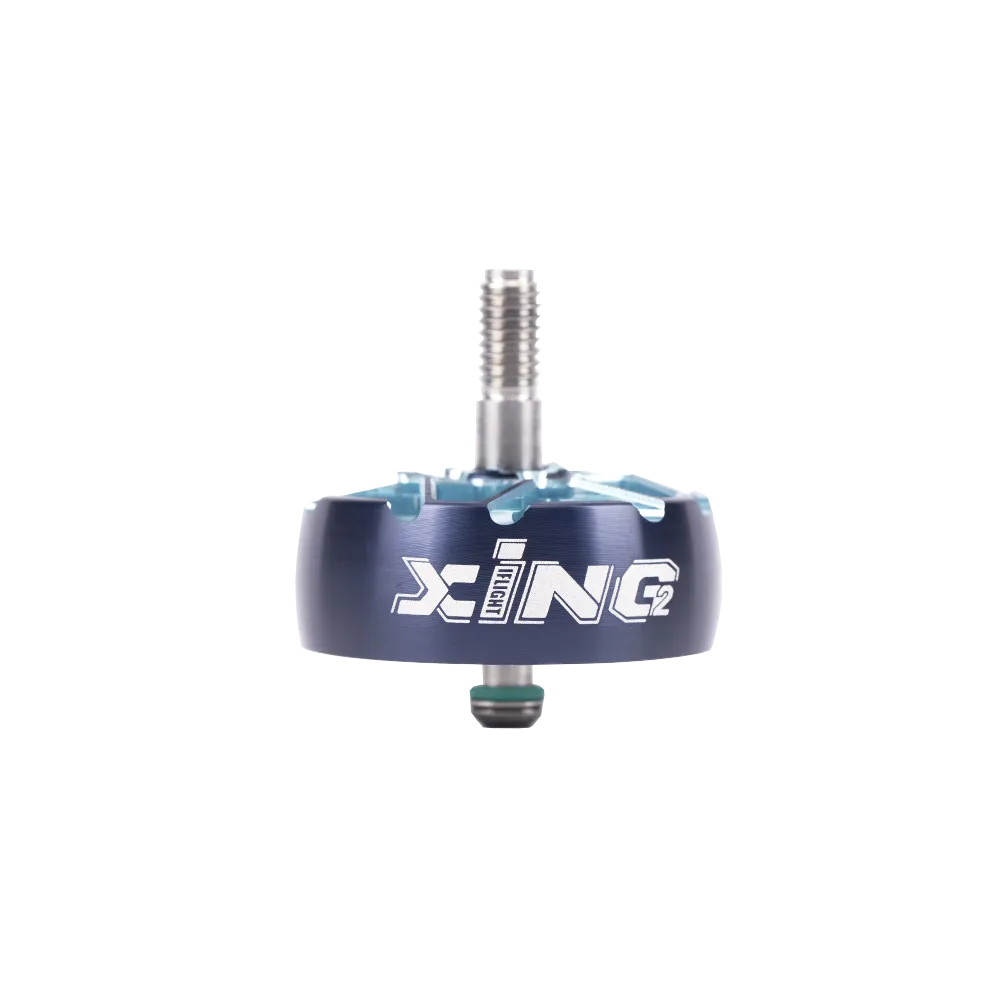

iFlight XING2 2207 1855/2755KV FPV Drone Brushless Motor 4-6S

$20.89

The iFlight XING2 2207 Brushless Motor combines a crash-resistant 7075 Unibell, high-grade N52H arc magnets, and a 5mm titanium shaft to deliver ultra-fast PID response and unmatched throttle smoothness.

Available in 4S and 6S KV options, it is the premier power choice for 5-inch freestyle and racing quads.

Add to Cart
iFlight XING2 2207 1855/2755KV FPV Drone Brushless Motor 4-6S
iFlight XING2 2207 1855/2755KV FPV Drone Brushless Motor 4-6S
$20.89

Free worldwide shipping on all orders over $199

  • Licensed by top brands to ensure product quality
  • Hassle-free 60 days warranty
  • 30 days easy returns
  • U.S. customers: tax is Trump’s Tariffs (10%)
Guaranteed Safe Checkout

Engineered to set the standard for 5-inch FPV performance, the iFlight XING2 2207 motor upgrades legendary power with quicker response times and superior impact resistance. Featuring a rugged 7075 aluminum Unibell housing and a high-strength 5mm titanium alloy shaft, it minimizes air gap tolerances to boost magnetic flux, overall motor efficiency, and raw power output.

Equipped with center-slotted N52H curved magnets and premium NSK 9x4x4 bearings, the XING2 drastically reduces rotational latency for a razor-sharp, locked-in flight feel. With integrated O-ring bearing protection, dynamic balancing, and multiple KV options tuned for both 4S and 6S LiPo builds, the XING2 2207 delivers smooth control, high heat tolerance, and rock-solid reliability under intense throttle demands.

Package Includes

  • 1x XING2 2207 Brushless Motor (KV is optional)
  • 4x M3*8 screws
  • 1x M5 Flange Nut

Additional information

Weight N/A
Brand: No selection

iFlight

Motor KV: No selection

1855, 2755

Specs

  • KV: 1855KV / 2755KV
  • Weight(included wire): 31.6g
  • Dimension: φ29.08*32.6mm
  • Interphase Resistance: 50mΩ / 41.5mΩ
  • Input Volts: 24V / 16V
  • Peak Current: 35.08A / 40.35A
  • Max Watt: 841.90W / 645.60W
  • Mounting Holes: 16*16 φ3mm
  • Rotor Specifications:  Unibell
  • Shaft Diameter: 5mm
  • Shaft Protruding Length: 13.5mm
  • Lead: 160mm/20AWG
  • Magnet: N52H Curved
  • Configuration: 12N14P
  • Bearing Type: NSK
  • Bearing Specification: φ9*φ4*4
  • Winding: Single-strand copper winding
