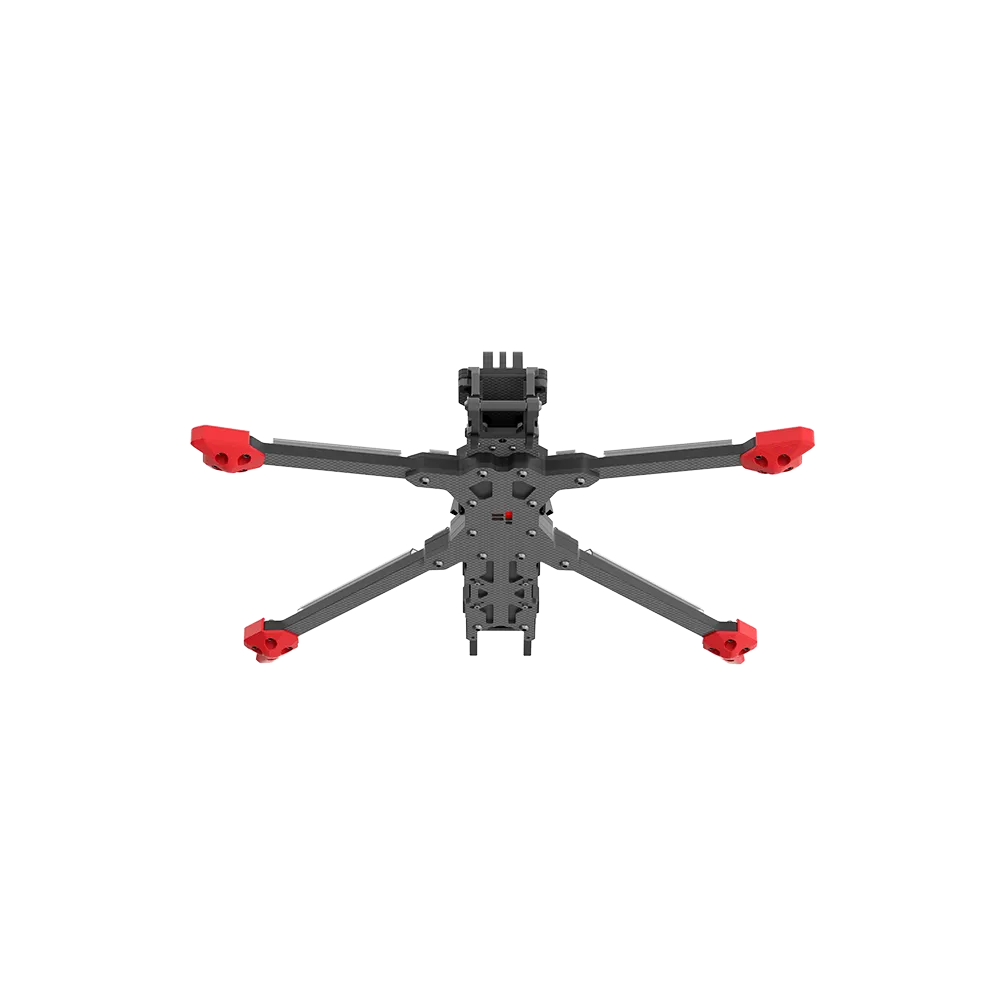

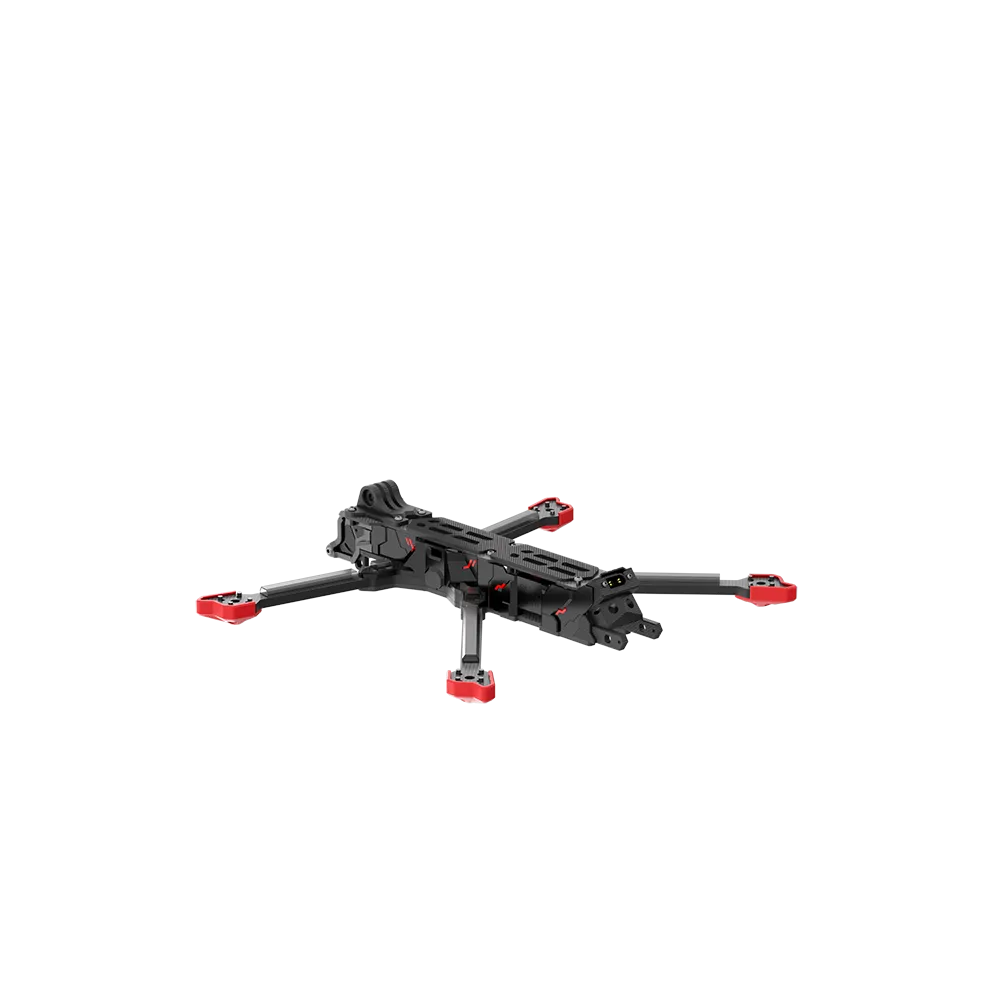

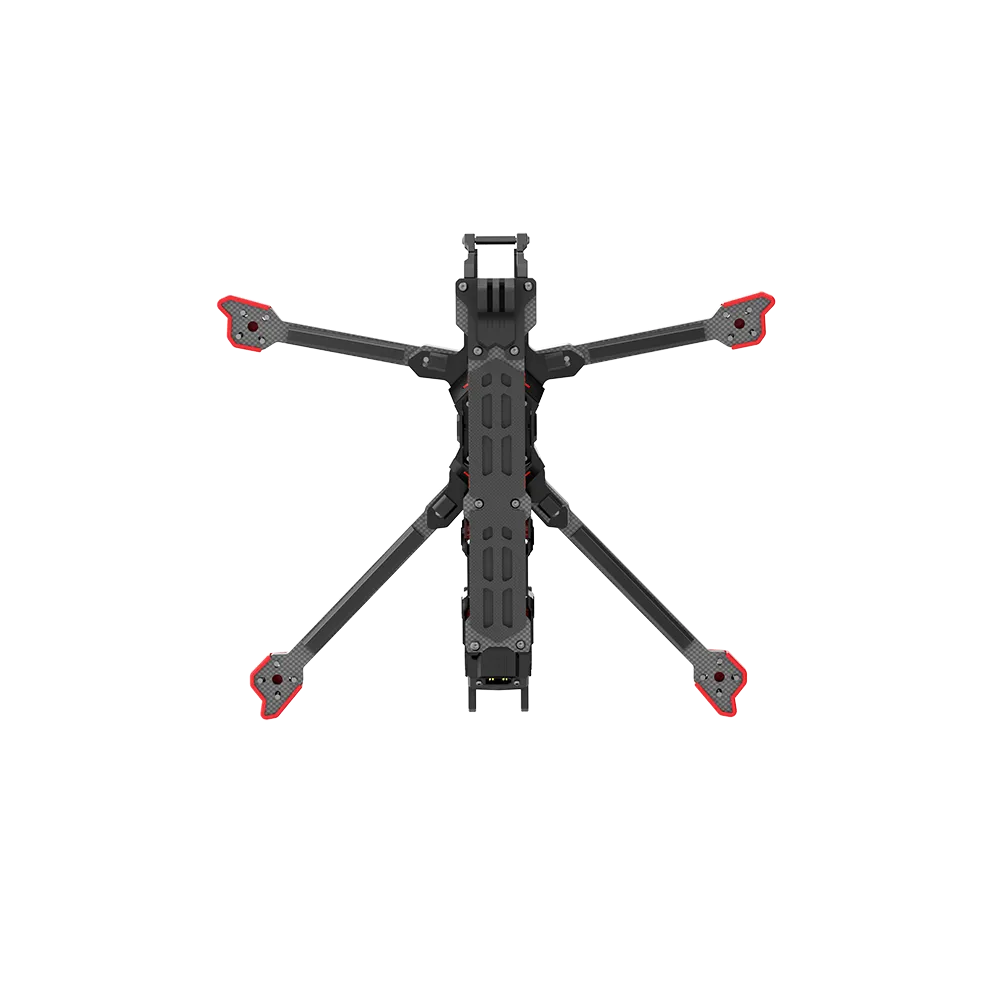

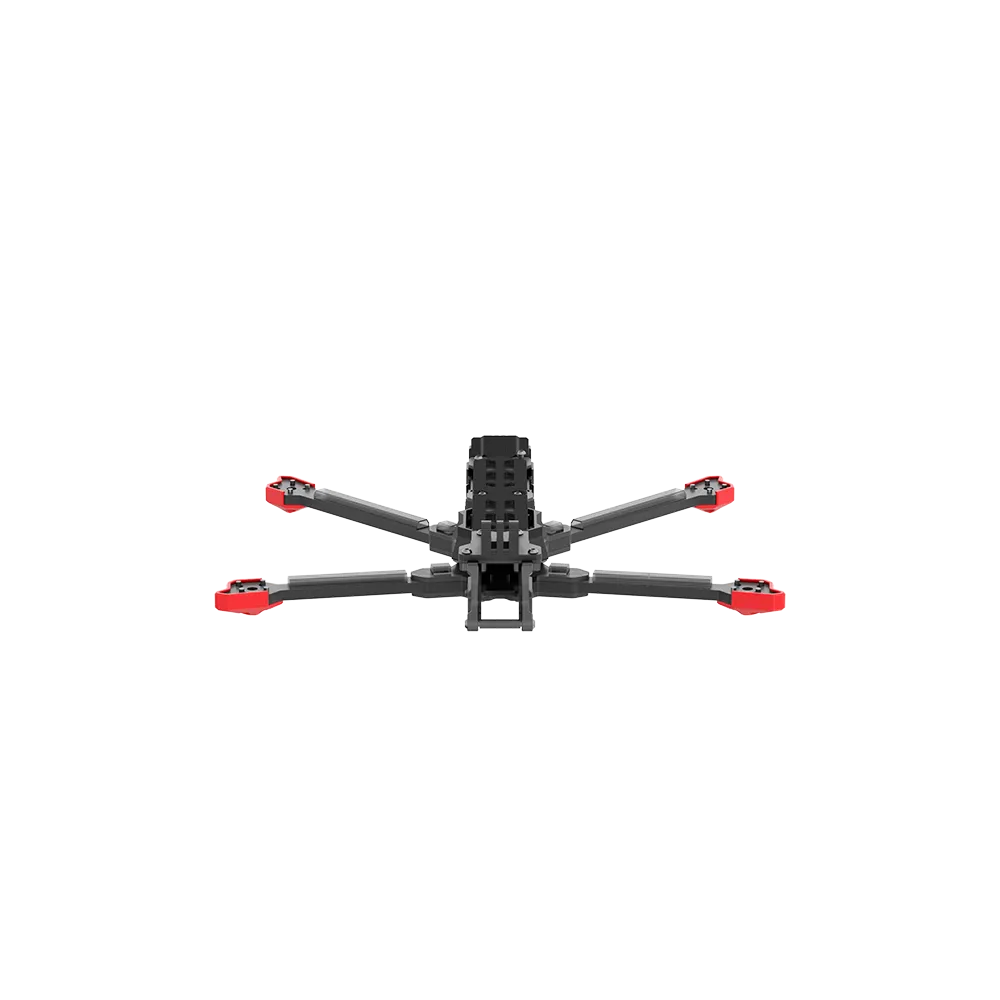

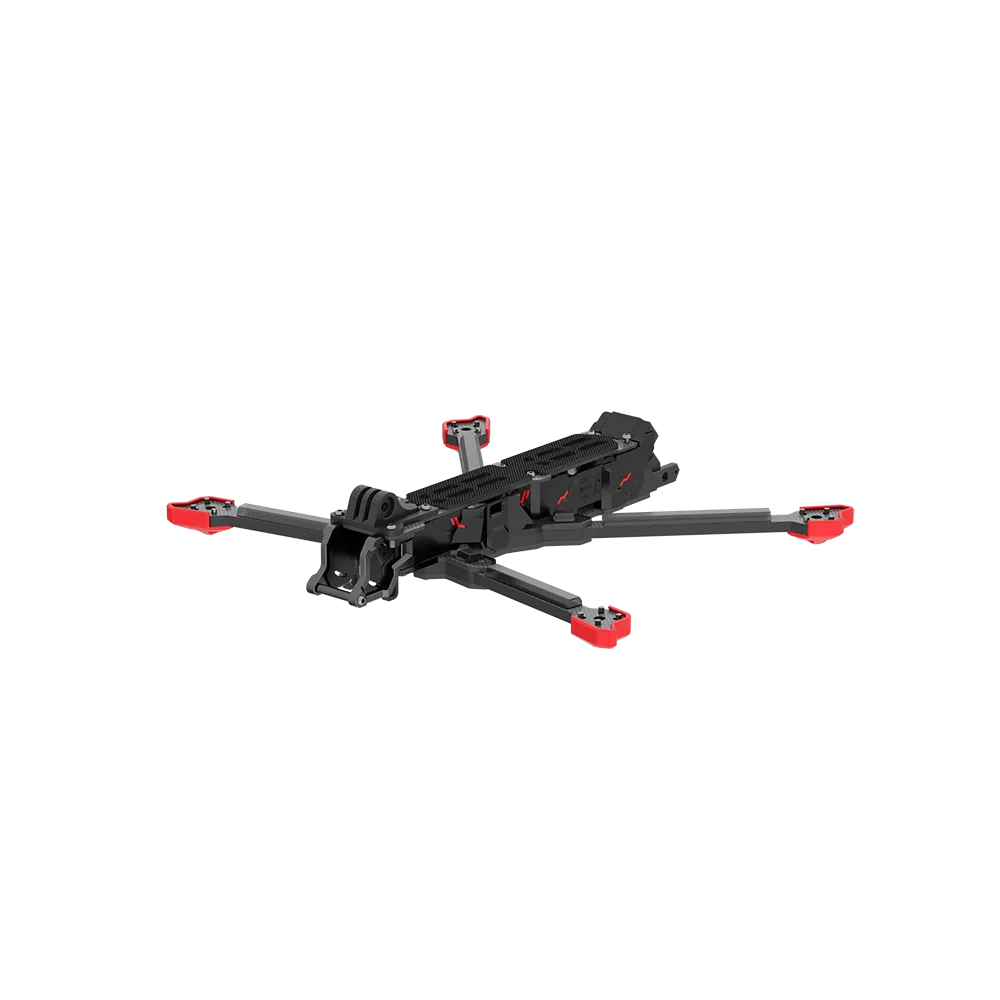

iFlight Chimera7 Pro V2 O4 Frame Kit – 7.5 Inch

Built for ultimate long-range exploration and mountain surfing, the iFlight Chimera7 Pro V2 O4 Frame Kit enhances the legendary Chimera 7 platform with native support for the DJI O4 Air Unit Pro. With super-stiff 6mm carbon fiber arms optimized for 2809 motors and 7.5-inch propellers, this frame minimizes flight resonance and low-frequency vibration for razor-sharp flight performance and crystal-clear cinematic footage.

The O4 Pro upgrade kit includes custom silicone side panels, a dedicated O4 camera TPU mount, a 220mm MIPI video cable, and dual IPEX-to-RP-SMA antenna pigtails for hassle-free installation. Designed with an isolated 30x30mm flight stack layout, robust TPU crash protection, and generous top-plate real estate for high-capacity LiPo or Li-Ion battery packs, the Chimera7 Pro V2 O4 is built to handle the harshest long-haul environments.

Package Includes

• 1 x Chimera7 Pro V2 O4 Frame Kit
• 1x 220mm O4 MIPI Digital Video Cable
• 2x O4 IPEX to RP-SMA Antenna Pigtails
• 1 x Dual Antenna TPU
• 1 x GoPro TPU Base Mount
• 1 x Screw Bag
• 4 x TPU Arm guard
• 2 x Anti-Slip Battery Pad
• 2 x Battery Strap
