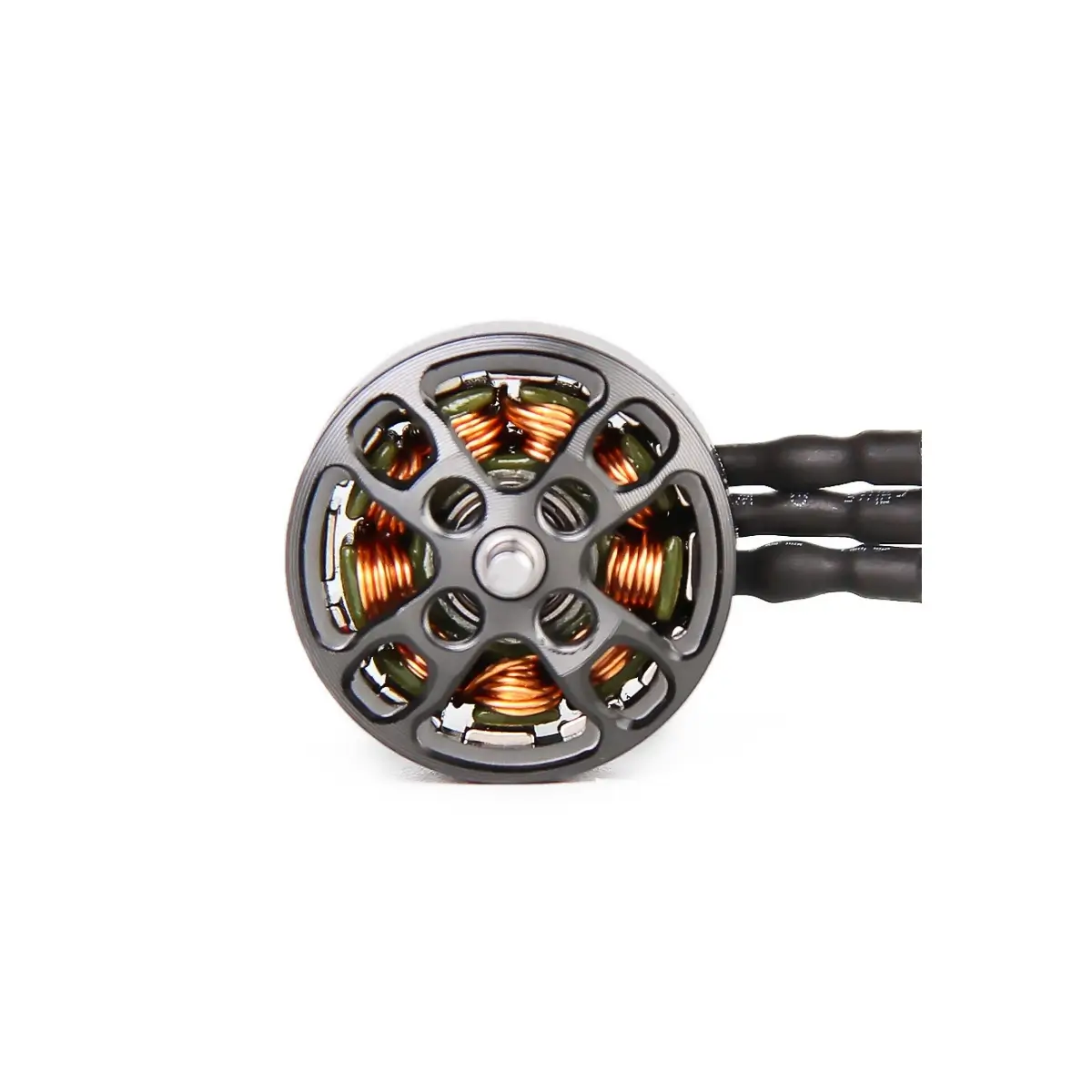

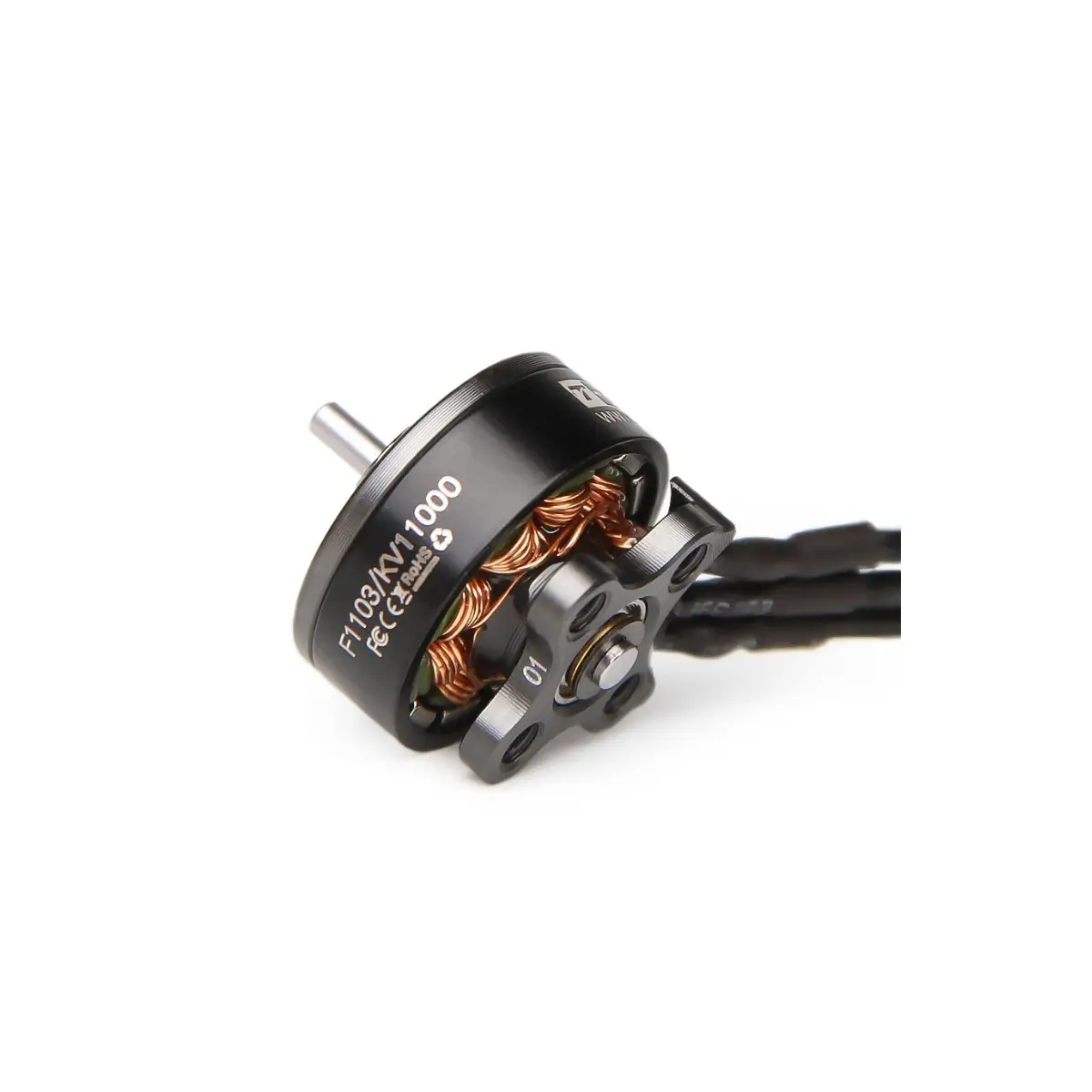

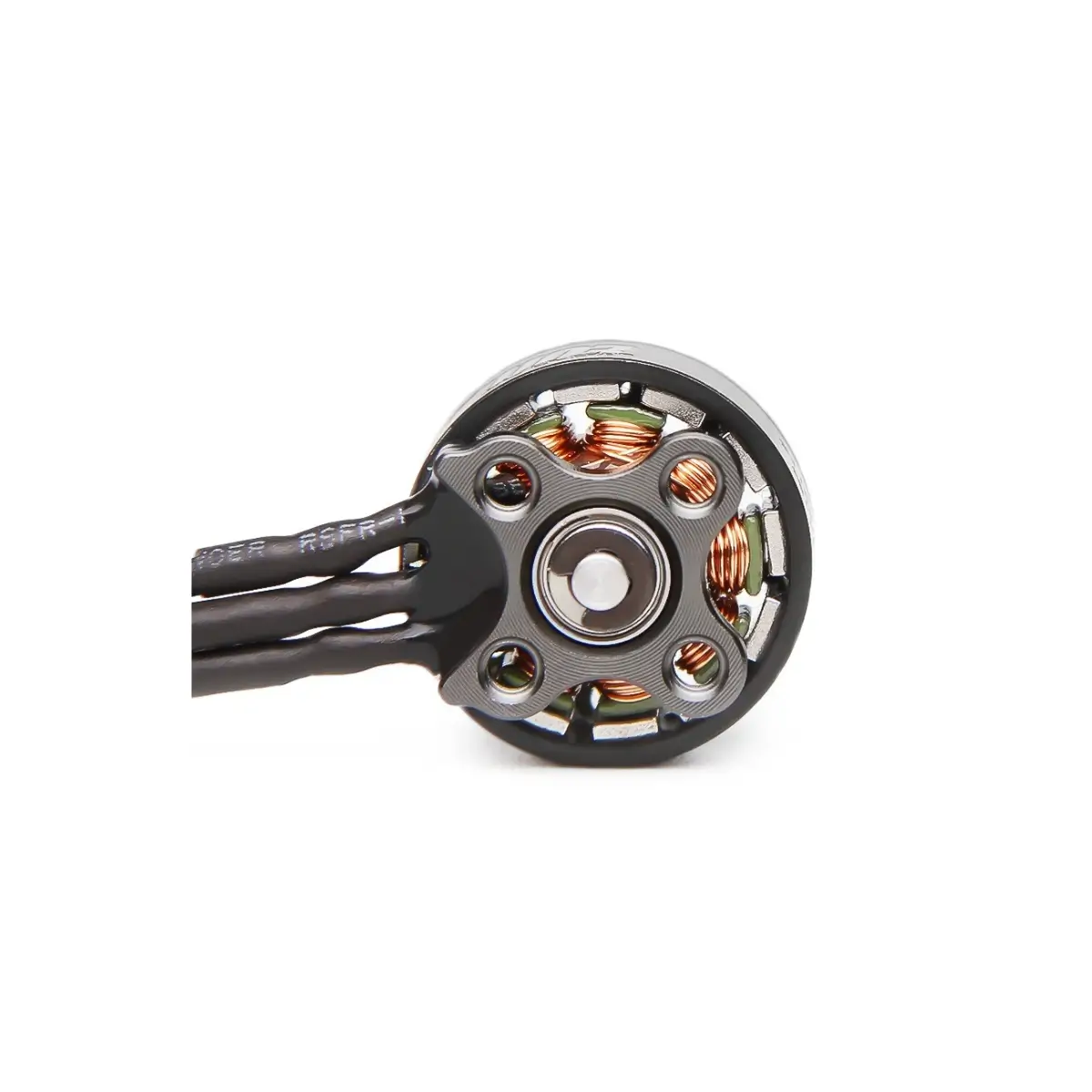

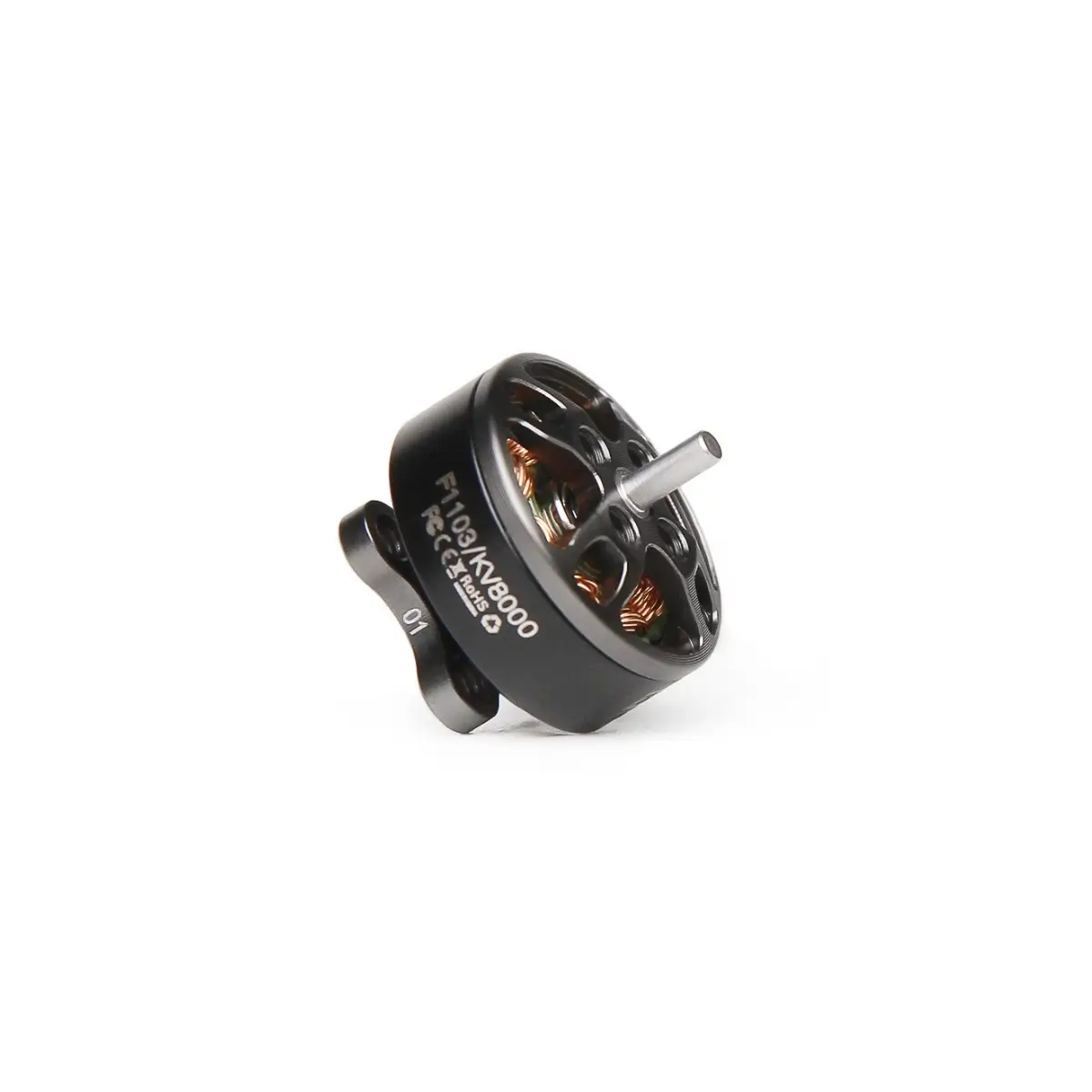

T-Motor F1103 8000/11000KV FPV Drone Brushless Micro Motor for Racing – 2~3S

$11.89

The T-Motor F1103 is a high-performance micro brushless motor engineered to deliver exceptional throttle response and efficiency for tiny whoops and ultralight toothpick builds.

Designed for pilots who demand precision, it provides the smooth power delivery and agile handling required for tight indoor maneuvering and backyard park flying.

Add to Cart
T-Motor F1103 8000/11000KV FPV Drone Brushless Micro Motor for Racing - 2~3S
T-Motor F1103 8000/11000KV FPV Drone Brushless Micro Motor for Racing - 2~3S
$11.89

Free worldwide shipping on all orders over $199

  • Licensed by top brands to ensure product quality
  • Hassle-free 60 days warranty
  • 30 days easy returns
  • U.S. customers: tax is Trump’s Tariffs (10%)
Guaranteed Safe Checkout

The T-Motor F1103 is built for the specific demands of modern micro FPV platforms, offering a balanced combination of raw output and refined control. Featuring an optimized stator architecture, this motor provides the low-end torque and efficiency needed to spin micro-sized propellers with consistency and responsiveness. Whether you are navigating complex indoor gaps or performing technical freestyle maneuvers, the F1103 ensures your micro drone remains locked in and stable.

Weighing in at an ultralight profile, it is the ideal propulsion solution for sub-250g builds, helping pilots maximize flight time without sacrificing performance. Its robust construction ensures high durability against inevitable micro-class impacts, while the precise engineering reduces vibration to keep your flight controller’s gyro data clean. With smooth, linear power delivery and reliable heat dissipation, the T-Motor F1103 stands as a premier choice for those who want to push their micro FPV experience to the next level.

Package Includes

  • 1x T-Motor F1103 8000/11000KV Motor

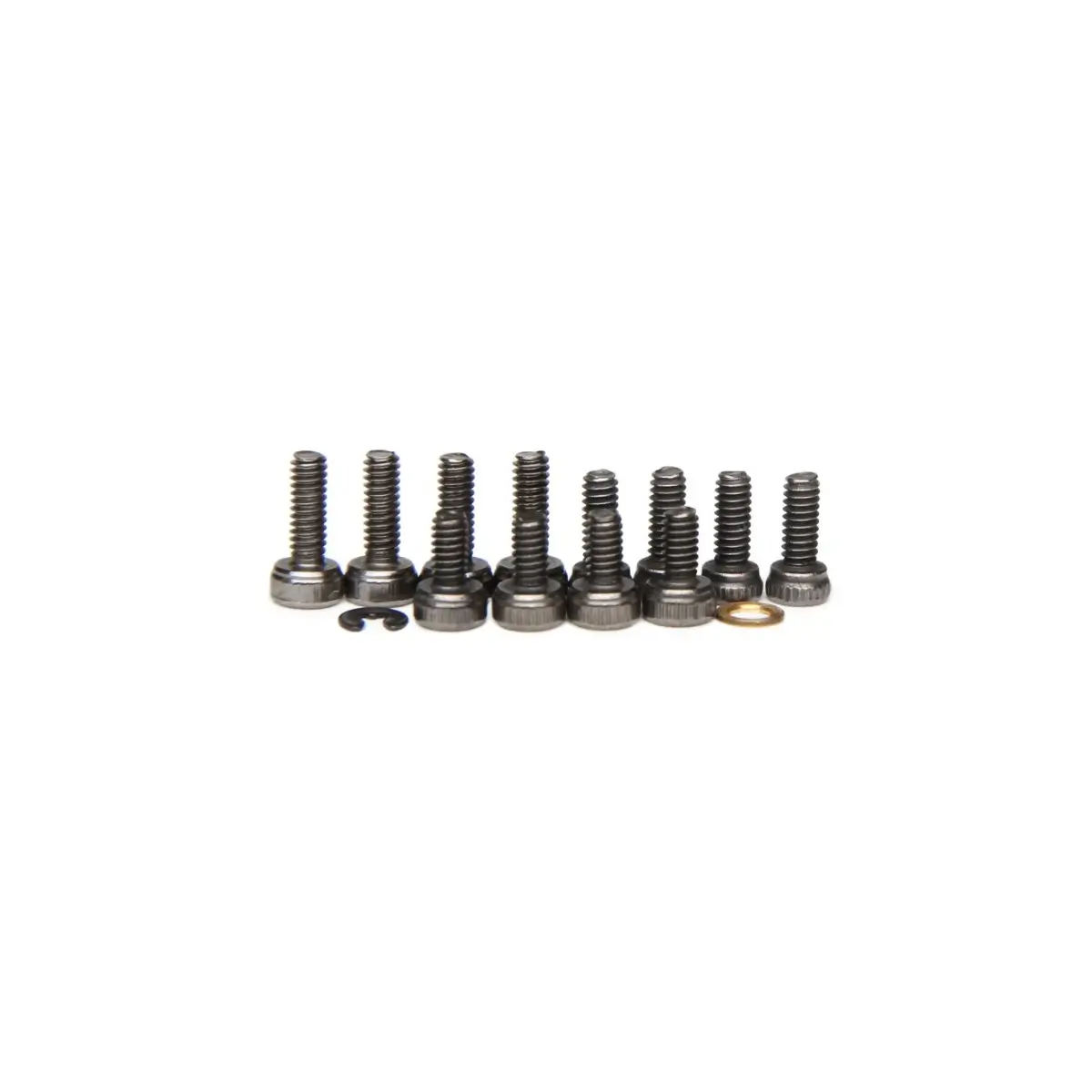

  • 1x Motor Accessories

Additional information

Weight N/A
Dimensions 14.4 × 14.4 × 14 mm
Brand: No selection

T-Motor

Motor KV: No selection

11000, 8000

Specs

8000KV Version

  • Test Item: KV8000
  • Motor Dimensions: Φ14.4*14mm
  • Lead: 24#AWG 75mm
  • Shaft Diameter: 1.5mm
  • Idle Current(3V): 0.58A
  • Max. Power(60s): 137W
  • Weight (Incl. Cable): 5.3g
  • Internal Resistance: 163mΩ
  • Configuration: 9N12P
  • Rated Voltage(Lipo): 2-3S
  • Peak Current(60s): 11.5A

11000KV Version

  • Test Item: KV11000
  • Motor Dimensions: Φ14.4*14mm
  • Lead: 24#AWG 75mm
  • Shaft Diameter: 1.5mm
  • Idle Current(3V): 0.65A
  • Max. Power(60s): 106.4W
  • Weight (Incl. Cable): 5.1g
  • Internal Resistance: 101mΩ
  • Configuration: 9N12P
  • Rated Voltage(Lipo): 2-3S
  • Peak Current(60s): 13.6A
