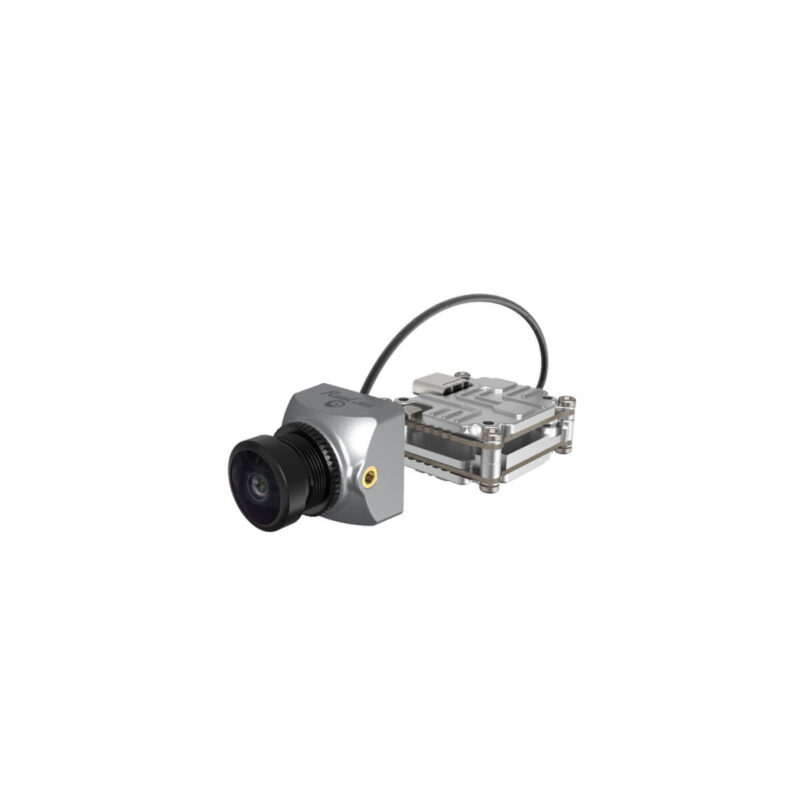

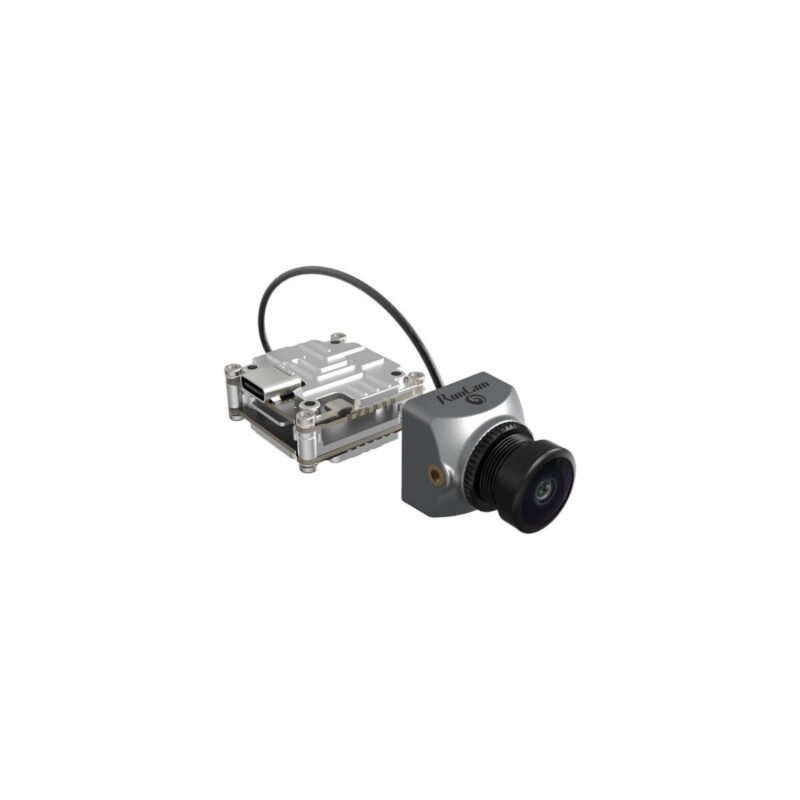

The Runcam Link Phoenix HD FPV Camera Kit is an advanced video transmission system that supports a 5.8 GHz digital video signal and 1280 x 720 60fps image transmission, with a transmission range of up to 4 km and a minimum end-to-end latency within 32 ms*.
The RunCam Phoenix HD FPV Camera uses a 1/2″, up to 10650 mv/lux-sec ultra-high sensitivity sensor – making this FPV camera kit excellent for night vision. It is a nice FPV camera and transmitter combination.
Package Includes
- 1 x Link Air Unit + Phoenix HD Camera
- 1 x APEX Antenna
- 1 x JST SH 1.0 6pin Cable
Specs
RunCam LINK Phoenix HD Kit
- Weight: Air Unit (camera included): 27 g
- Weight: Air Unit (alone): 19.5
- Dimensions :
-
- Air Unit: 29×29×13 mm
- Camera:L19mm*W19mm*H23.5mm
- Coaxial Cable: 120 mm
- Operating Frequency: 5.725-5.850 GHz
- Transmitter Power (EIRP) :
- FCC/SRRC: <30 dBm;
- CE: <14 dBm
- Min. Latency (end-to-end): 1280 x 720 60fps: 32 ms
- Max. Transmission Distance: FCC/SRRC: 4 km; CE: 0.7 km;
- I/O Interface: Type-C, IPEX, 3-in-1 port,
- Supported Flight Control System: BetaFlight
- Operating Temperature Range: 0° to 40° C (32° to 104° F)
- Power: 7.4-26.4V@ 4-9W

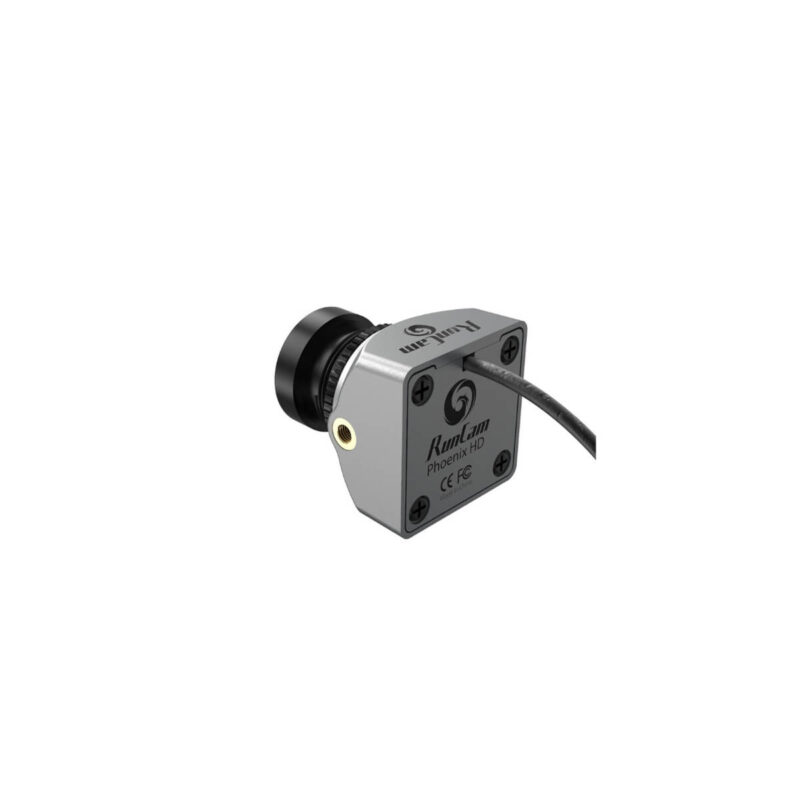

RunCam Phoenix HD Camera
- Image Sensor: 1/2”
- Resolution: 1280*720@60fps
- LENS: FOV D:157° H:133° V:72°
- Shutter: Rolling Shutter
- Coaxial Cable: 120 mm
- Dimensions: L19mm*W19mm*H23.5mm
- Weight: 7.5g
