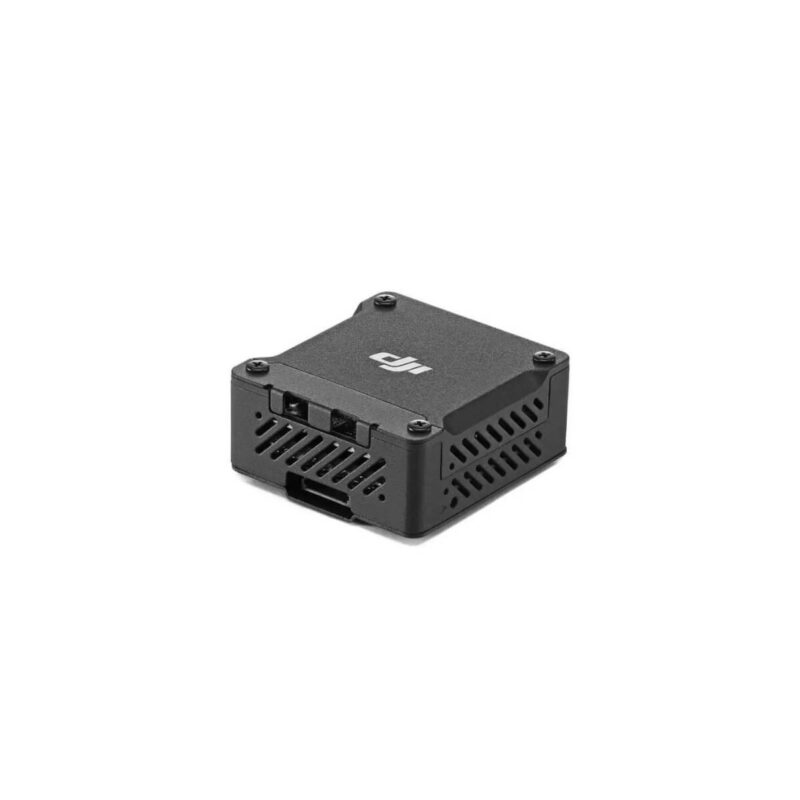

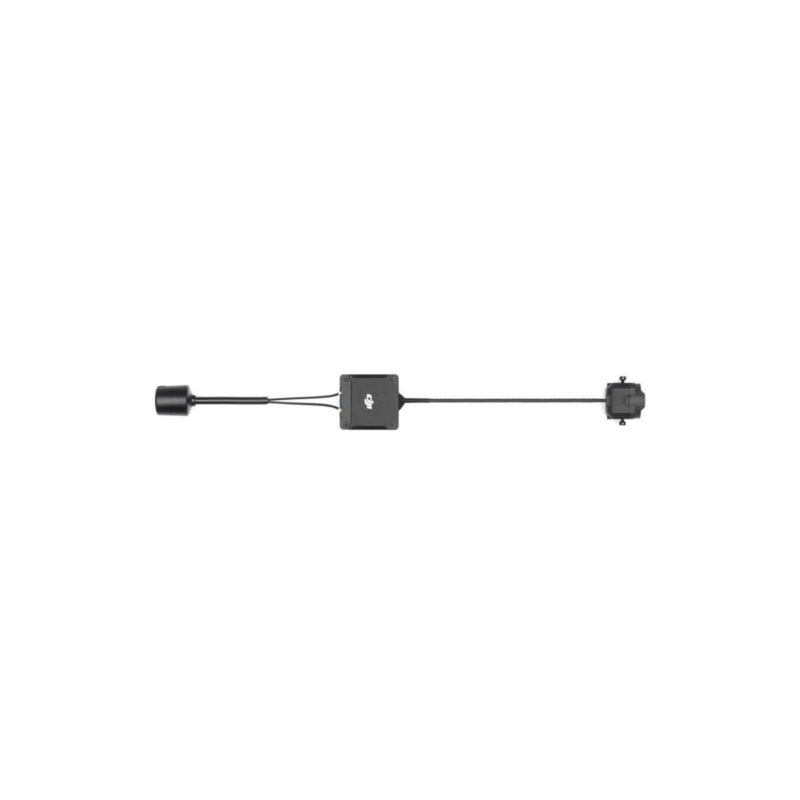

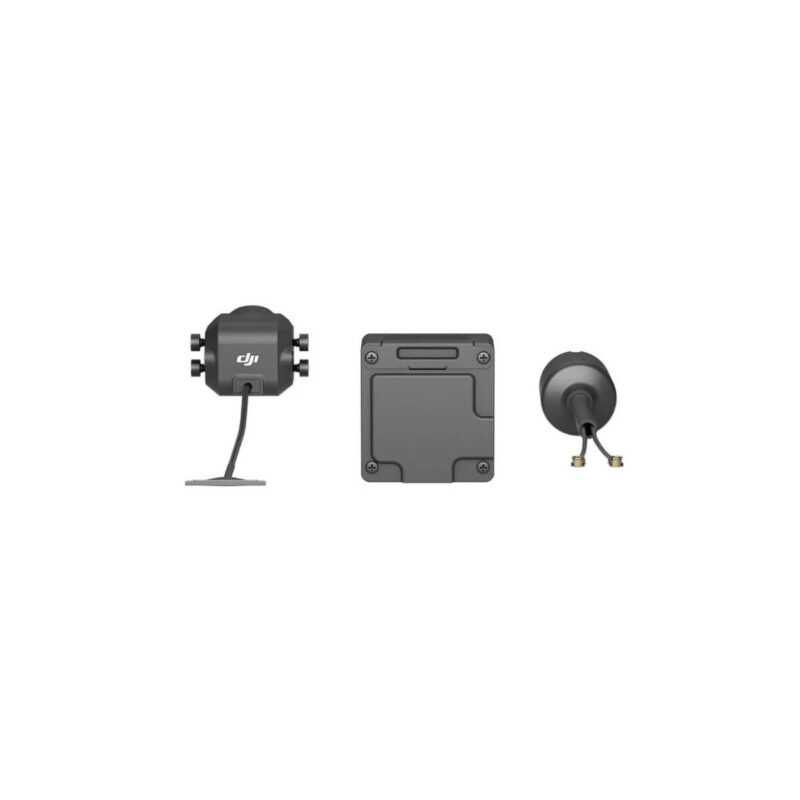

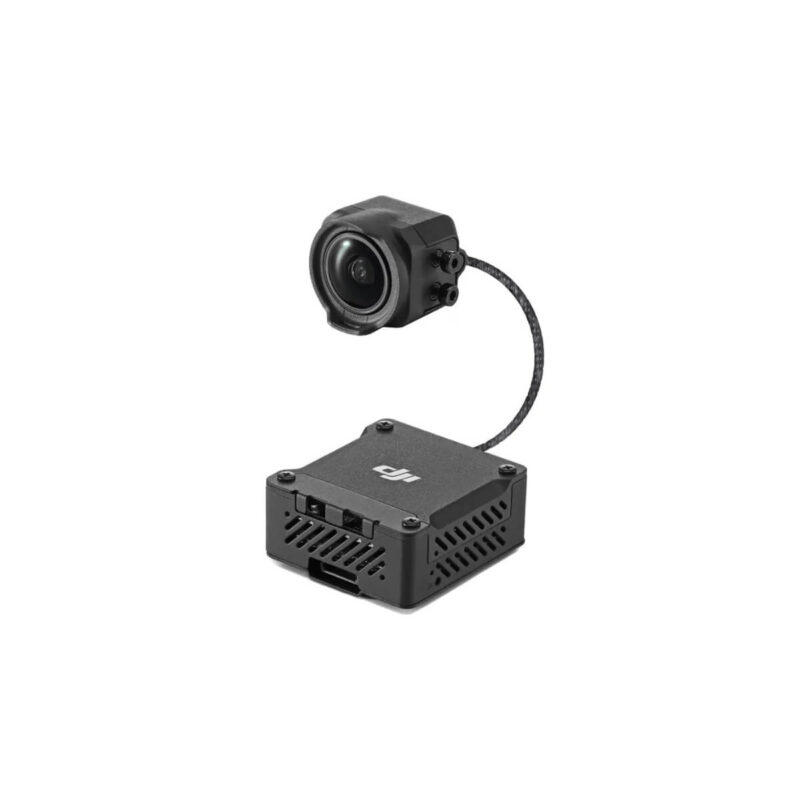

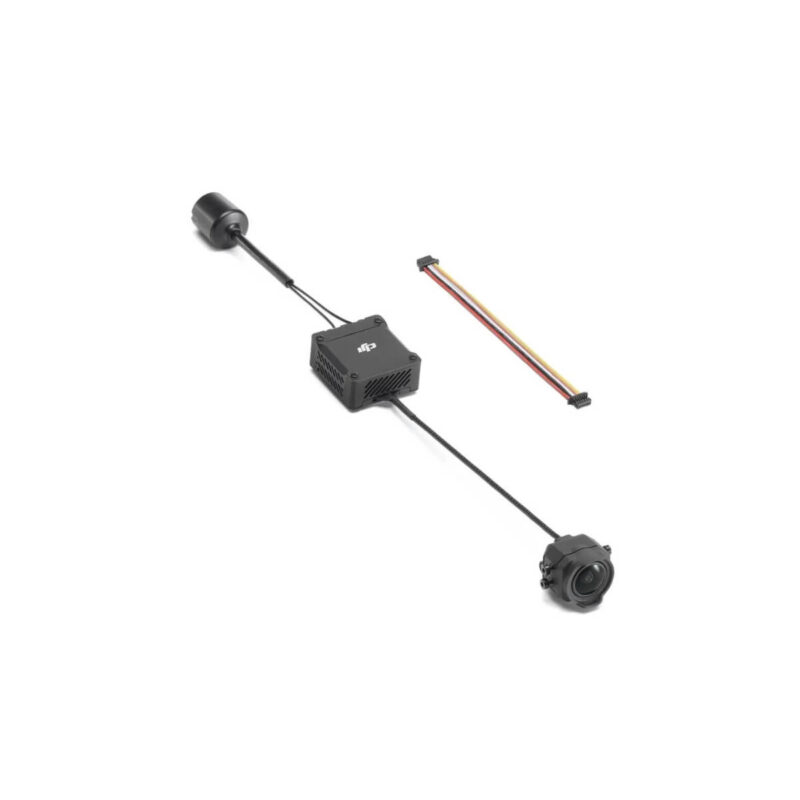

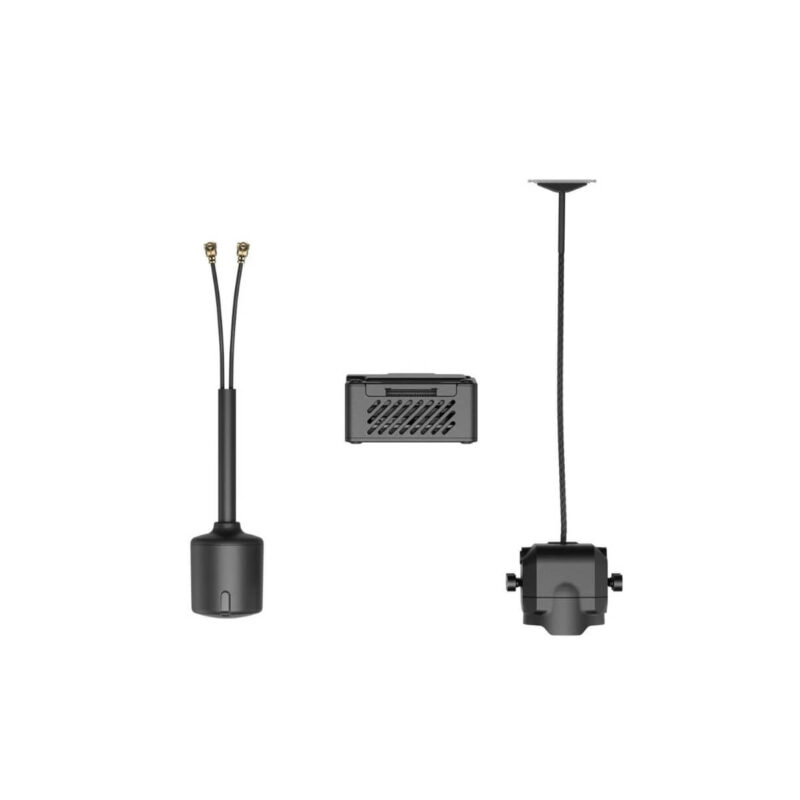

DJI O3 Air Unit VTX Kit

• Live View Quality and End-to-End Latency:
  • With DJI FPV Goggles V2:
    • 810p/120fps Video Transmission Quality: The latency is lower than 28 ms.
    • 810p/60fps Video Transmission Quality: The latency is lower than 40 ms.
  • With DJI Goggles 2:
    • 1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.
    • 1080p/60fps Video Transmission Quality: The latency is as low as 40 ms.”
• Supported Flight Controller Firmware: Compatible with flight controller firmware that supports Betaflight. For more information, check the product FAQ.
• Channels:
  • Supports auto mode
  • Supports manual mode: 40 MHz: 1 channel; 20 MHz: 3 channels; 10 MHz: 3 channels
• Max Video Transmission Range: 10 km (FCC), 2 km (CE), 6 km (SRRC)
• Supported DJI Goggles: DJI Goggles 2 and DJI FPV Goggles V2
• Supported DJI Remote Controller: DJI FPV Remote Controller 2
• Recommended microSD Cards:
  • SanDisk Extreme U3 V30 A1 32GB microSDXC
  • SanDisk Extreme Pro U3 V30 A1 32GB microSDXC
  • Kingston Canvas Go!Plus U3 V30 A2 64GB microSDXC
  • Kingston Canvas React Plus U3 V90 A1 64GB microSDXC
  • Kingston Canvas React Plus U3 V90 A1 128GB microSDXC
  • Kingston Canvas React Plus U3 V90 A1 256GB microSDXC
  • Samsung PRO Plus U3 V30 A2 256GB microSDXC”
•  Weight:
  • Air Unit (camera module excluded): Approx. 28 g
  • Air Unit (camera module included): Approx. 36.4 g
  • Antenna: Approx. 3 g
• Operating Temperature: -10º to 40º C (14° to 104° F)
• Dimensions:
  • Transmission Module: 32.5×30.5×14.5 mm
  • Camera Module: 21.2×20×19.5 mm
  • Coaxial Cable: 115 mm
  • 3-in-1 Cable: 100 mm
  • Antenna: 85 mm
• Supported SD Cards: microSD (up to 256 GB)
• Communication Frequency:
  • 2.400-2.4835 GHz (RX only)
  • 5.725-5.850 GHz (RX and TX)
• Channels Info:
  • FCC/SRRC/CE:
  • 40 MHz:
  • Channel 1: 5794.5 MHz
  • 20 MHz/10 MHz:
  • Channel 1: 5768.5 MHz
  • Channel 2: 5804.5 MHz
  • Channel 3: 5839.5 MHz
• Transmission Power (EIRP):
  • FCC: < 33 dBm
  • CE: < 14 dBm
  • SRRC: < 30 dBm
• Input Voltage: 7.4-26.4 V
• Cable: 3-in-1 100mm

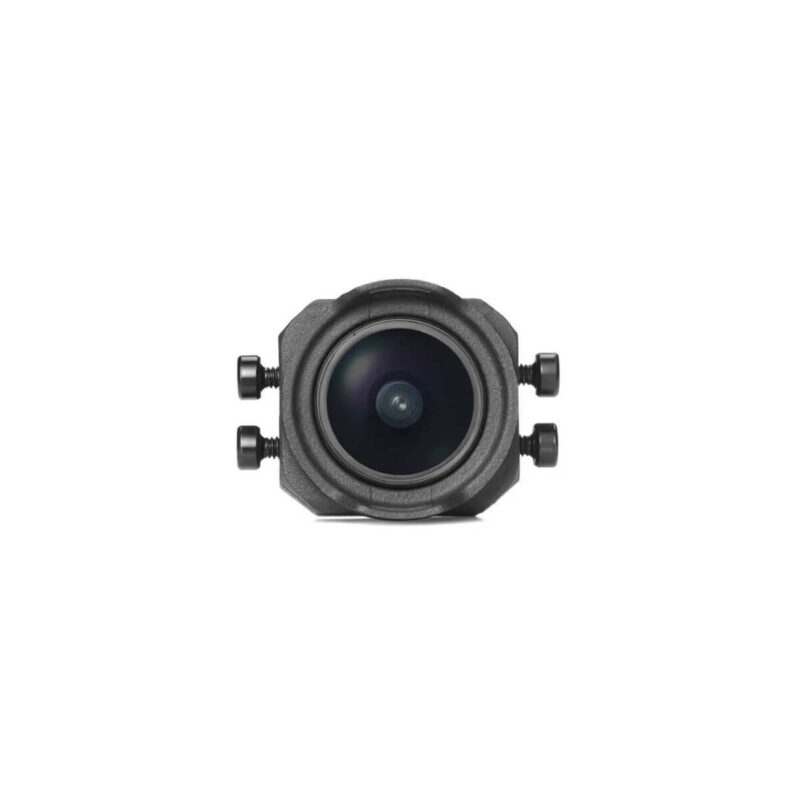

DJI O3 CAMERA

• Weight: Approx. 8.3 g (coaxial cable included)
• Lens:
  • FOV: 155°
  • Equivalent Focal Length: 12.7 mm
  • Focal Length: 2.34 mm
  • Aperture: f/2.8
  • Focus Mode: FF
  • Focus Range: 0.6 m to ∞
• Video Resolution:
  • With DJI Goggles 2:
    • 4K@50/60fps
    • 2.7K@50/60/100fps
    • 1080p@50/60/100fps
  • With DJI FPV Goggles V2:
    • 4K@50/60fps
    • 2.7K@50/60/100/120fps
    • 1080p@50/60/100/120fps
• Sensor: 1/1.7-inch CMOS
• ISO Range:
  • 100-6400 (Auto)
  • 100-25600 (Manual)
• EIS: Supports RockSteady
• Shutter: Rolling Shutter
• Effective Pixels: 48 MP
• Video Format: MP4
• FOV: 155°

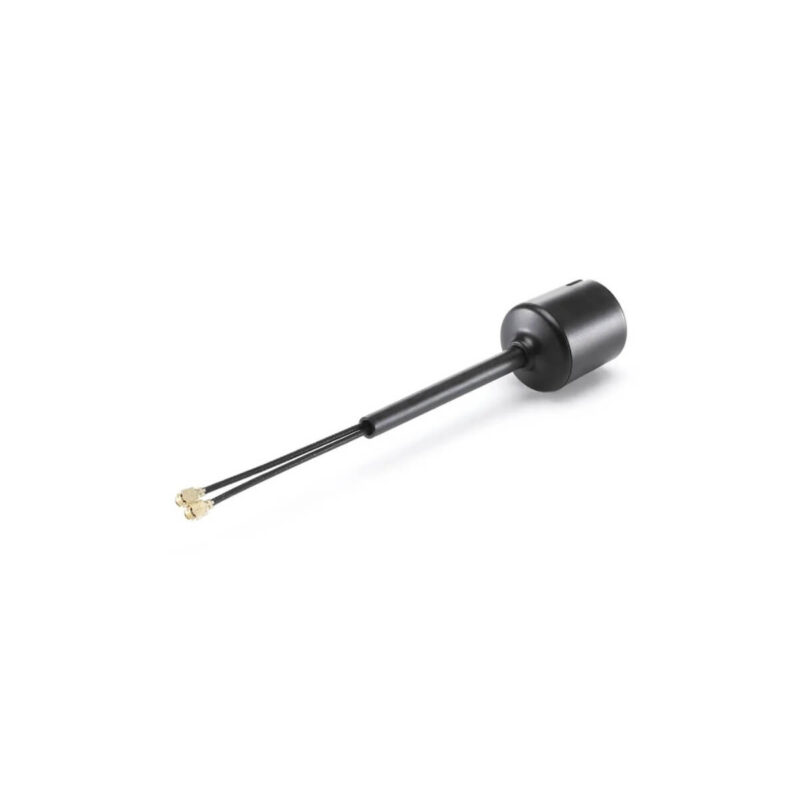

DJI O3 ANTENNA

• Polarization: Dual-band dual-polarized
• Weight: Approx. 3g
• Connector: I-PEX
• Length: 85 mm
