iFlight XING2 2207 1750/2050/2750KV FPV Drone Brushless Motor 2-6S

$23.89

The iFlight XING2 2207 Brushless Motor (Black Edition) delivers high-torque responsiveness and extreme crash durability for 5-inch FPV builds like the Nazgul Evoque F5.

Featuring a 7075 Unibell housing, N52H arc magnets, and a 5mm titanium shaft, it provides smooth, precise throttle resolution across 2S and 6S power setups.

Add to Cart
iFlight XING2 2207 1750/2050/2750KV FPV Drone Brushless Motor 2-6S
iFlight XING2 2207 1750/2050/2750KV FPV Drone Brushless Motor 2-6S
$23.89

Free worldwide shipping on all orders over $199

  • Licensed by top brands to ensure product quality
  • Hassle-free 60 days warranty
  • 30 days easy returns
  • U.S. customers: tax is Trump’s Tariffs (10%)
Guaranteed Safe Checkout

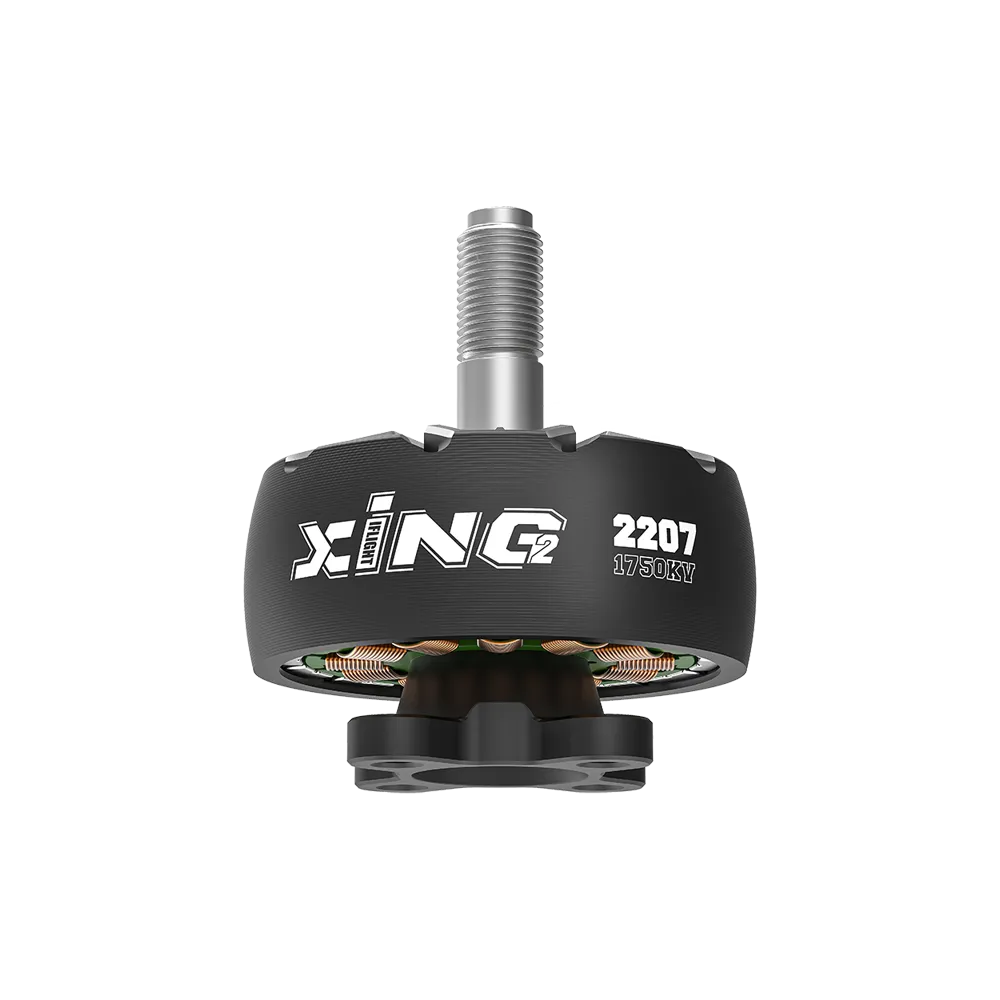

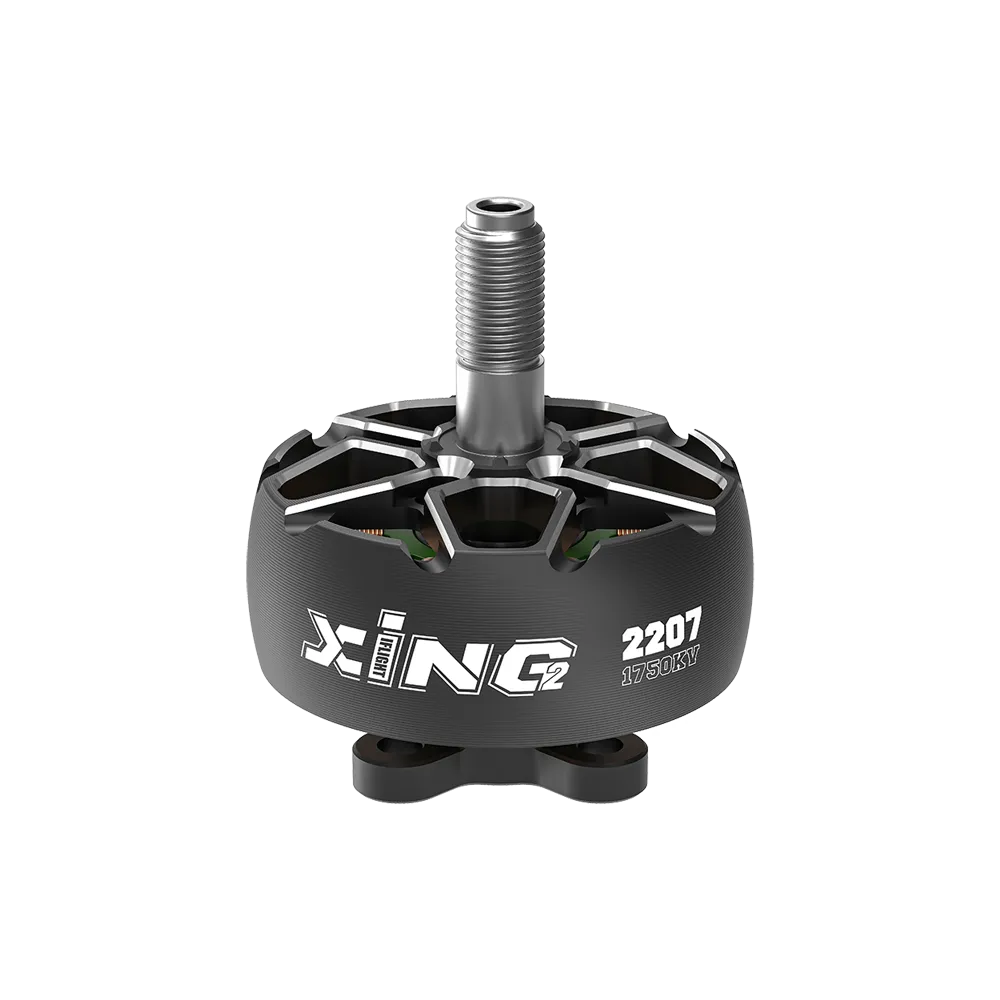

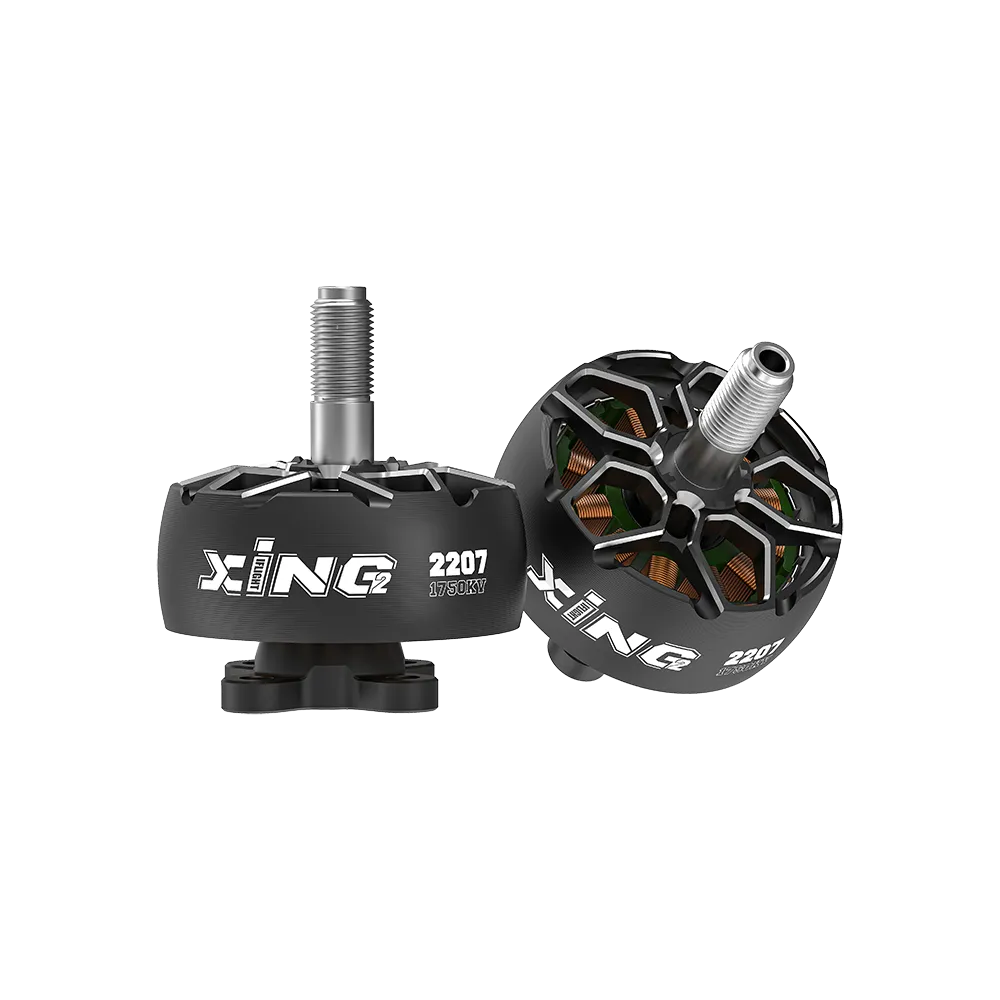

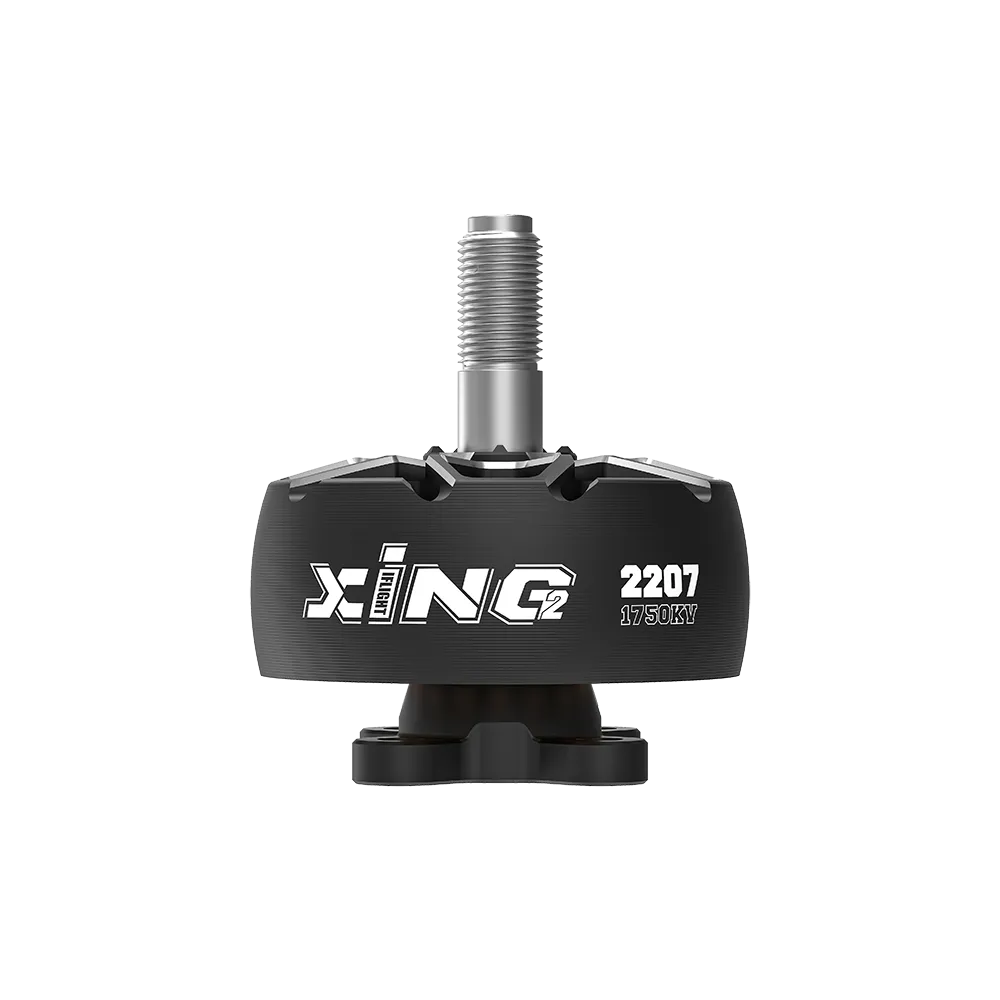

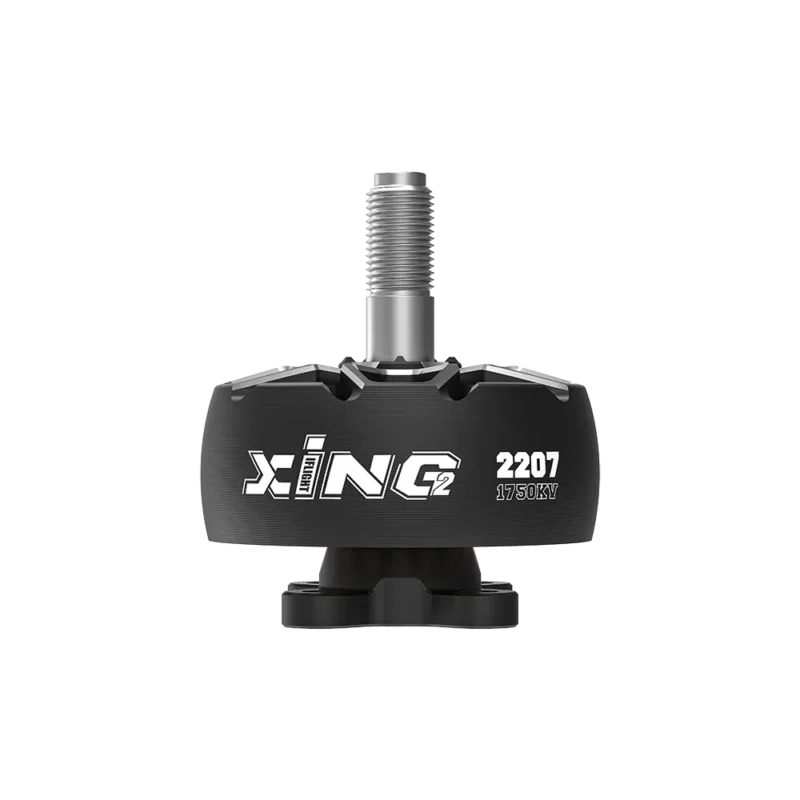

Factory-equipped on flagship builds like the Nazgul Evoque F5, the iFlight XING2 2207 Black Edition Motor sets the standard for 5-inch FPV performance. Built with a high-strength 7075 aluminum Unibell rotor and a 5mm titanium alloy shaft, it minimizes internal air gaps to increase magnetic flux, delivering instant acceleration and explosive top-end speed.

Featuring center-slotted N52H curved arc magnets and premium NSK 9x4x4 bearings with integrated O-ring gap protection, the XING2 2207 drastically reduces rotational latency for a razor-sharp, locked-in flight feel. Dynamic balance tuning, high-temperature copper windings, and optimized thermal dissipation ensure bulletproof reliability during intense freestyle maneuvers and aggressive 2S/6S racing lines.

Package Includes

  • 1 x XING2 2207 Black Brushless Motor
  • 4 x M3*10 screws (1750KV)
  • 4 x M3*10 screws(2750KV)
  • 4 x M3*9 screws (2050KV)
  • 1 x M5 Flanged Nut

Additional information

Weight N/A
Brand: No selection

iFlight
Motor KV: No selection

1750, 2050, 2750

Specs

  • KV: 1750KV / 2750KV / 2050KV
  • Weight(included wire): 30.5g
  • Dimension: φ29*32.75mm
  • Interphase Resistance: 74.23mΩ(1750KV/2750KV) / 56.3mΩ(2050KV)
  • Input Volts: 25.2V (1750KV/2050KV) / 16.8V (2750KV)
  • Peak Current: 36.03A(1750KV)/ 46.05A (2750KV)/ 49.53A(2750KV)
  • Max Watt: 898W(1750KV) / 706.9W(2750KV) / 1166.4W(2050KV)
  • Mounting Holes: 16*16 φ3mm
  • Rotor Specifications: Unibell
  • Shaft Diameter: 5mm
  • Shaft Protruding Length: 13.5mm
  • Lead: 160mm/20AWG
  • Magnet: N52H Curved
  • Configuration: 12N14P
  • Bearing Type: NSK
  • Bearing Specification: φ9*φ4*4
  • Winding: Single-strand copper winding
