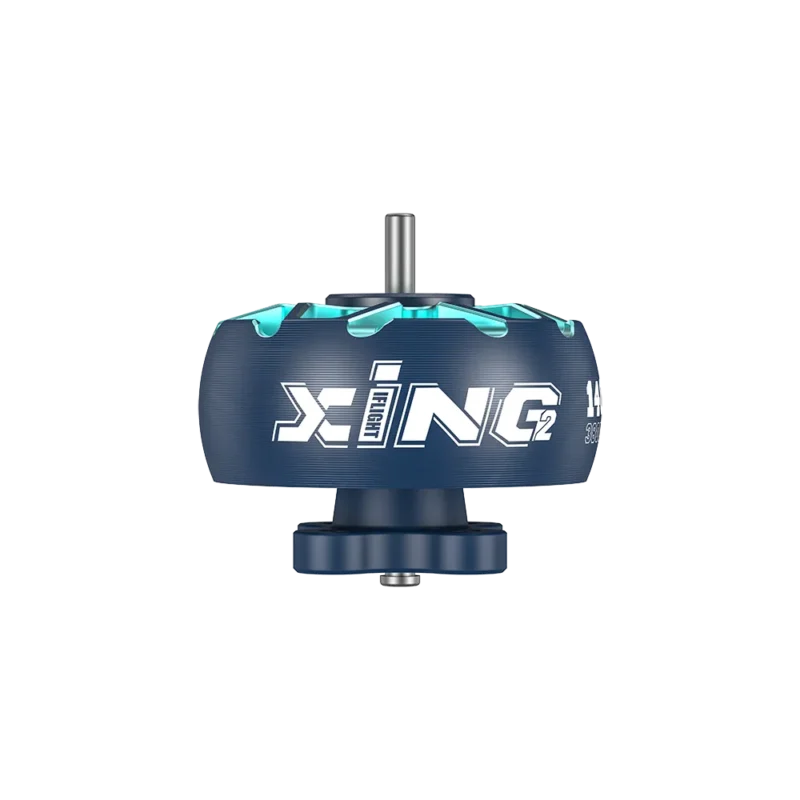

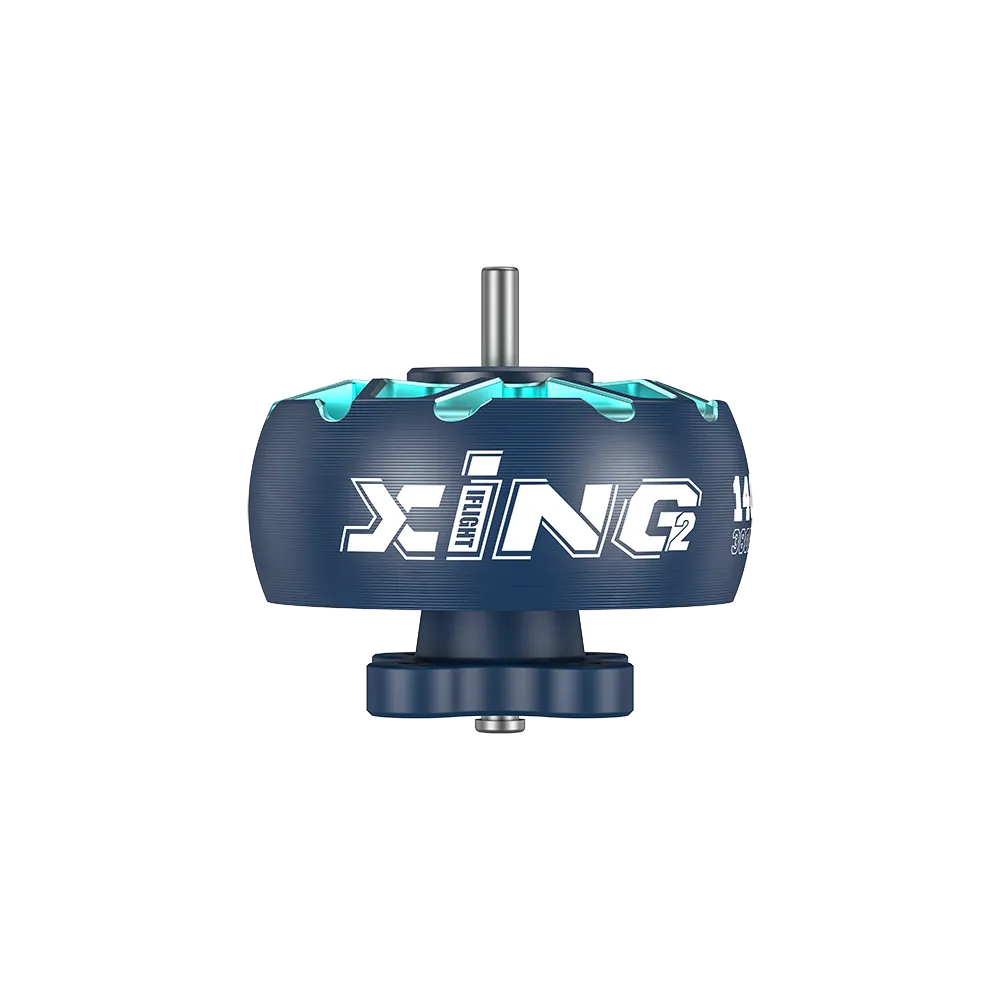

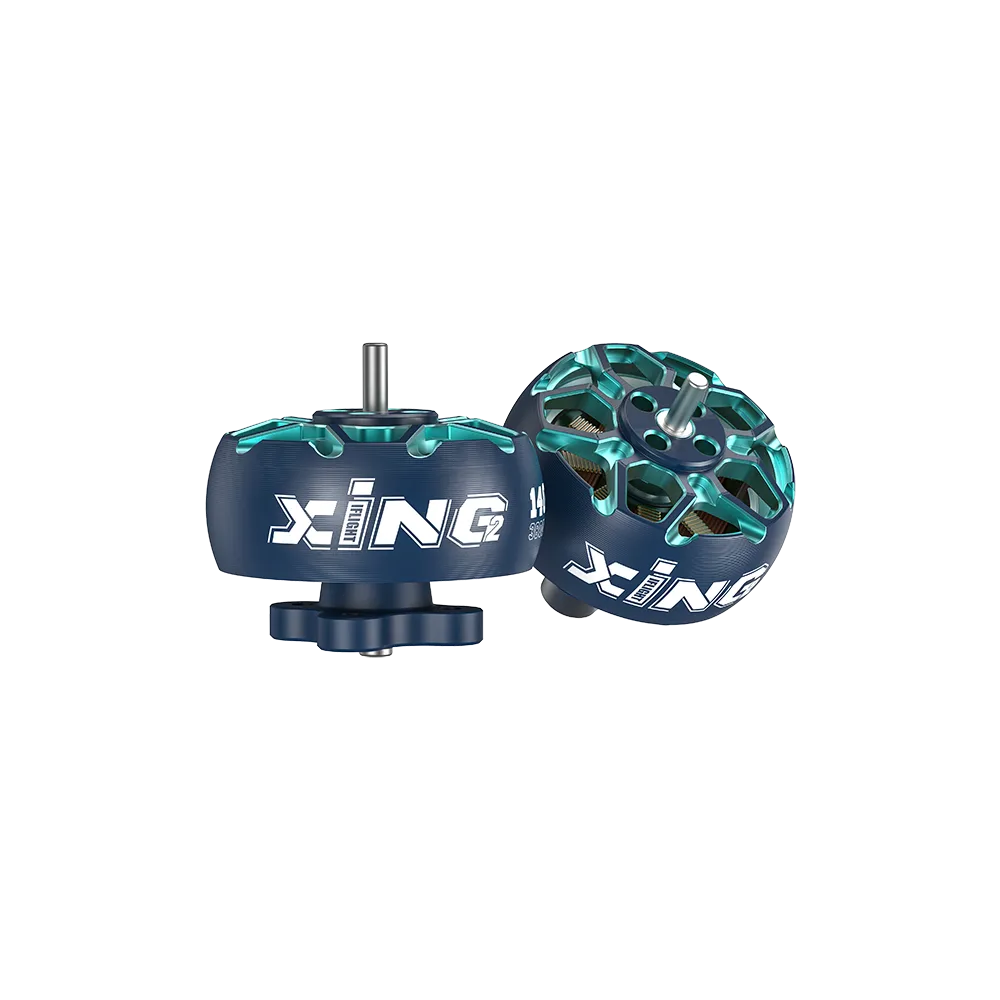

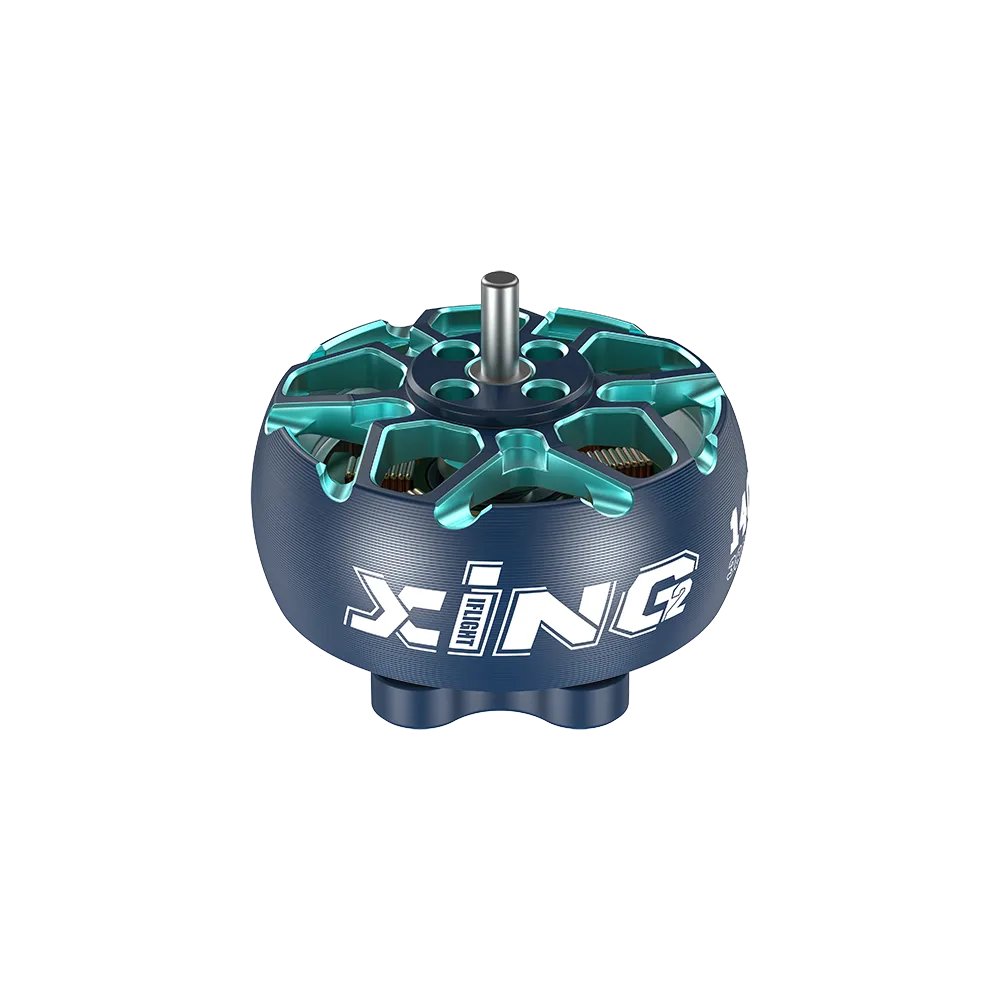

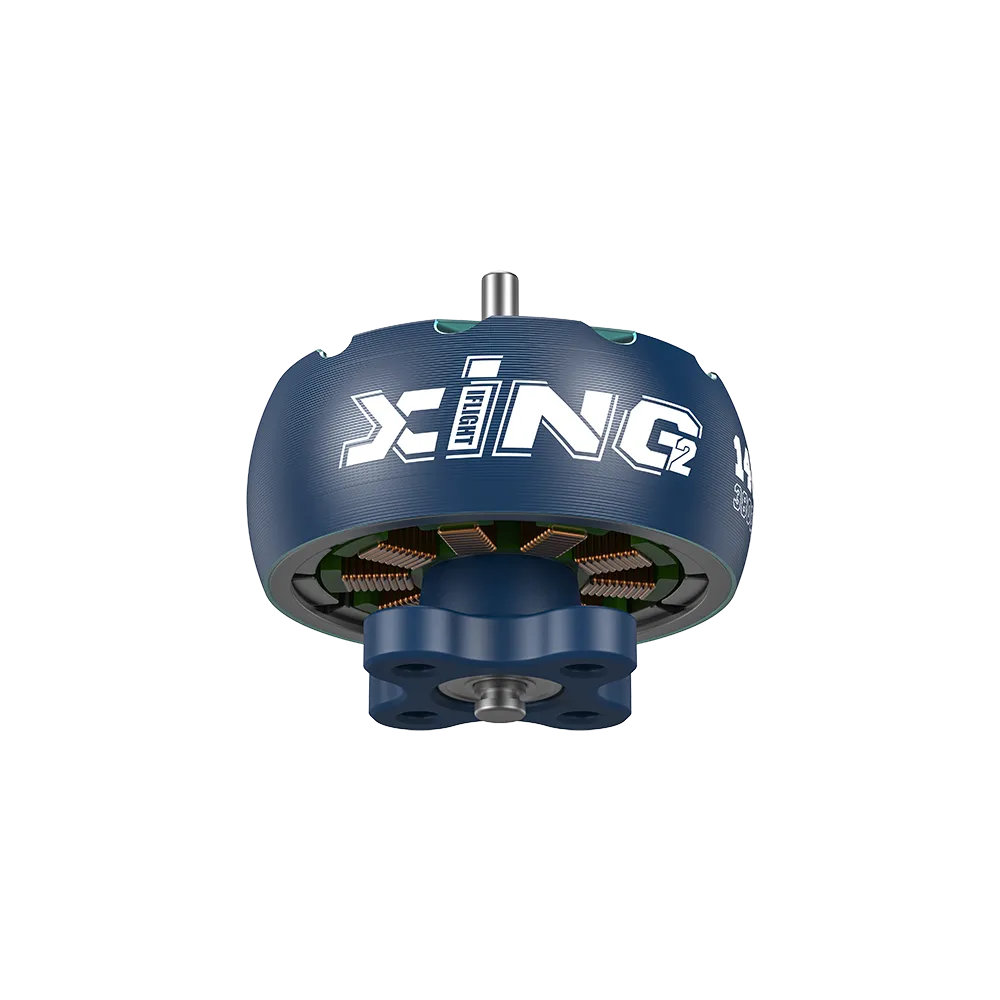

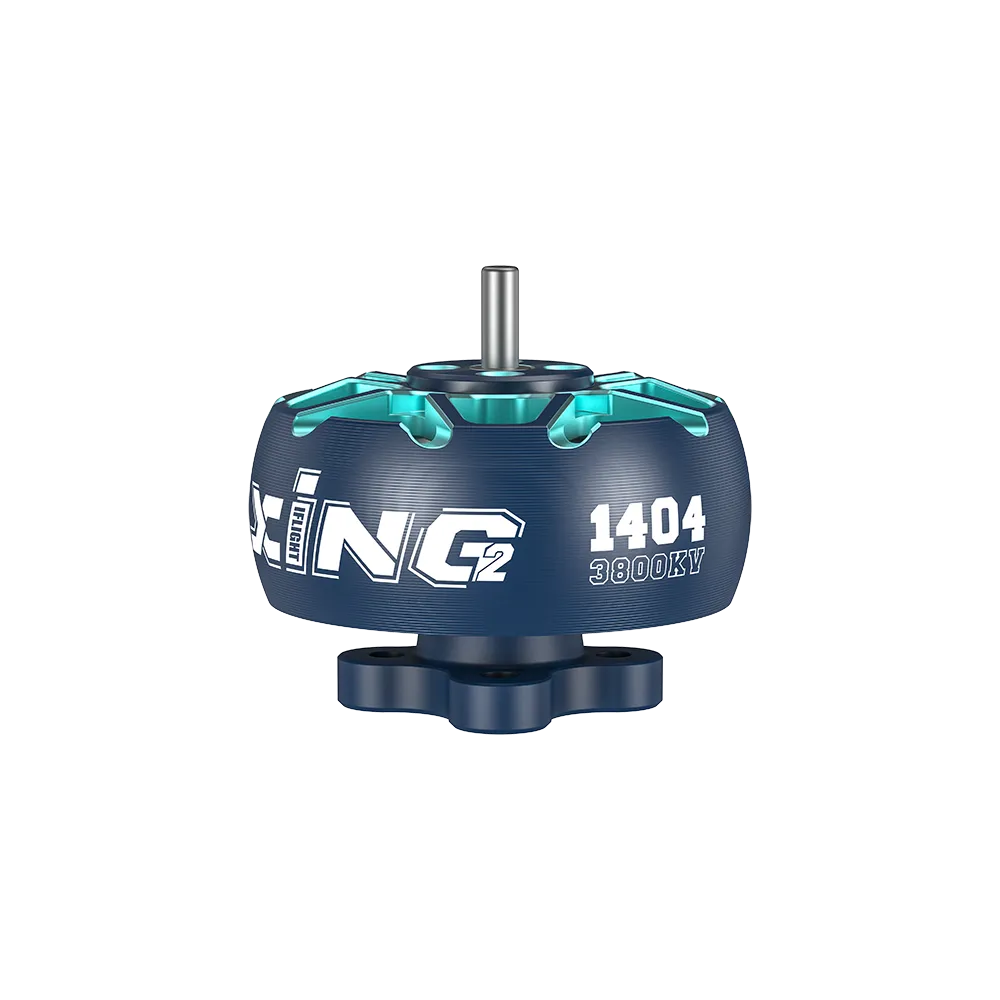

iFlight XING2 1404 3000/3800/4600KV FPV Drone Brushless Motor 3-4S

$15.89

The iFlight XING2 1404 Brushless Motor brings NextGen XING2 technology to ultra-lightweight 3-inch toothpicks and micro cinewhoops.

Weighing just 9.1g, it combines a crash-resistant 7075 Unibell housing with N52H arc magnets for ultra-responsive throttle control on 3S-4S builds.

Add to Cart
iFlight XING2 1404 3000/3800/4600KV FPV Drone Brushless Motor 3-4S
iFlight XING2 1404 3000/3800/4600KV FPV Drone Brushless Motor 3-4S
$15.89

Free worldwide shipping on all orders over $199

  • Licensed by top brands to ensure product quality
  • Hassle-free 60 days warranty
  • 30 days easy returns
  • U.S. customers: tax is Trump’s Tariffs (10%)
Guaranteed Safe Checkout

Designed specifically for ultralight toothpick builds, 2.5–3.5 inch micro quads, and cinewhoops, the iFlight XING2 1404 motor delivers high-efficiency performance in a featherweight 9.1g package. Featuring a rugged 7075 aluminum Unibell bell and center-slotted N52H curved magnets, it minimizes rotational inertia for instantaneous PID response and crisp throttle feedback.

Built with smooth NSK bearings, an integrated O-ring dampening system to reduce crash vibrations, and durable single-strand copper windings, the XING2 1404 ensures silky-smooth flights and extended motor lifespan. Offered in 3000KV, 3800KV, and 4600KV options for 3S–4S LiPo power, it provides the ideal balance of flight time, torque, and punch-out speed for micro FPV setups.

Package Includes

  • 1 x XING2 1404 Motor Unibell
  • 4 x M2x7 Screws
  • 4 x M2x5 Screws

Additional information

Weight N/A
Brand: No selection

iFlight

Motor KV: No selection

3000, 3800, 4600

Specs

  • KV: 3000KV / 3800KV / 4600KV
  • Weight(included wire): 9.1g
  • Dimension: φ19.9*18.4mm
  • Interphase Resistance: 309mΩ / 220mΩ / 159mΩ
  • Input Volts: 3S-4S
  • Peak Current: 13.8A / 15.84A / 17.99A
  • Max Watt: 220.8W / 253.4W / 287.8W
  • Mounting Holes: 9*9 φ2mm
  • Rotor Specifications: Unibell
  • Lead: 120mm/26AWG
  • Magnet: N52H Curved
  • Configuration: 9N12P
  • Bearing Type: NSK
  • Winding: Single-strand copper winding
