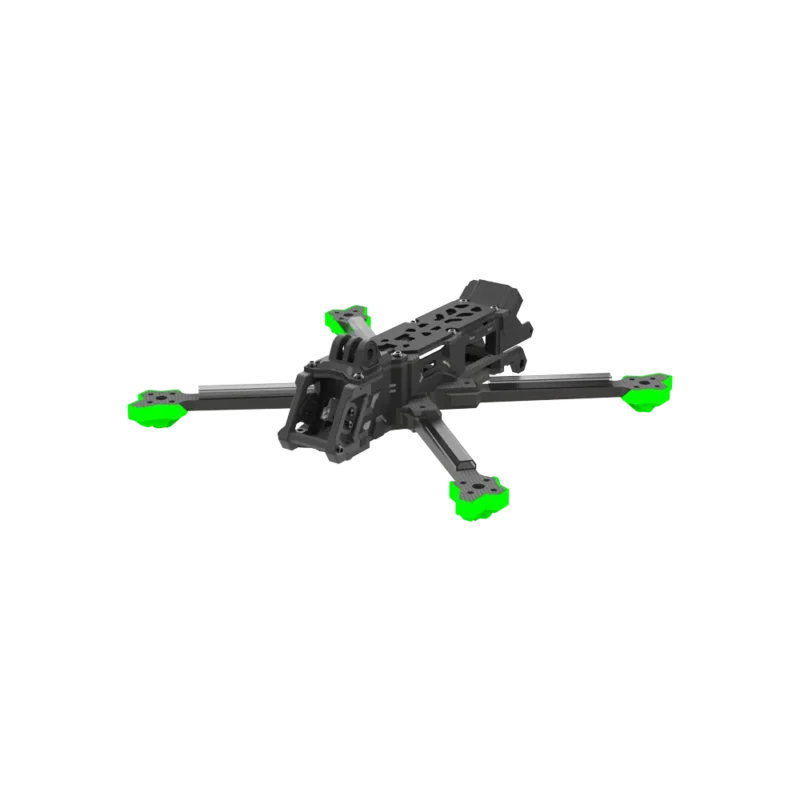

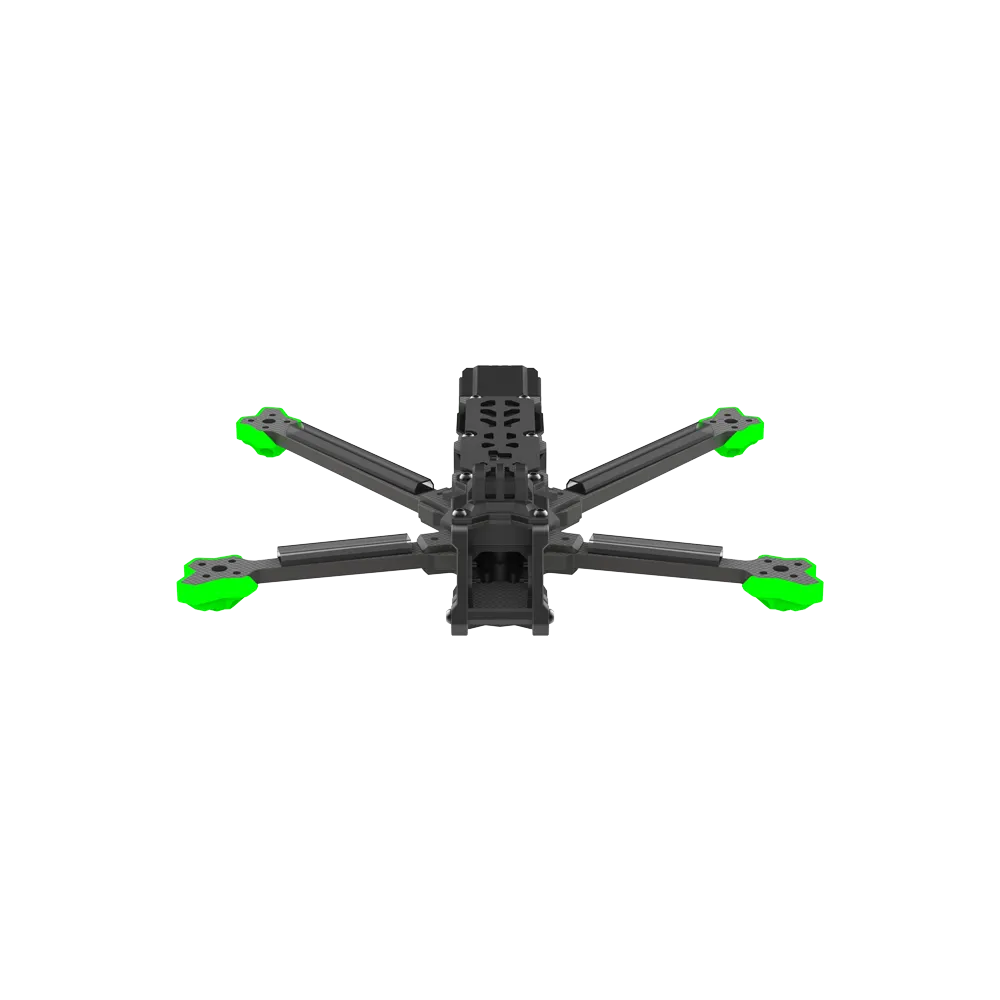

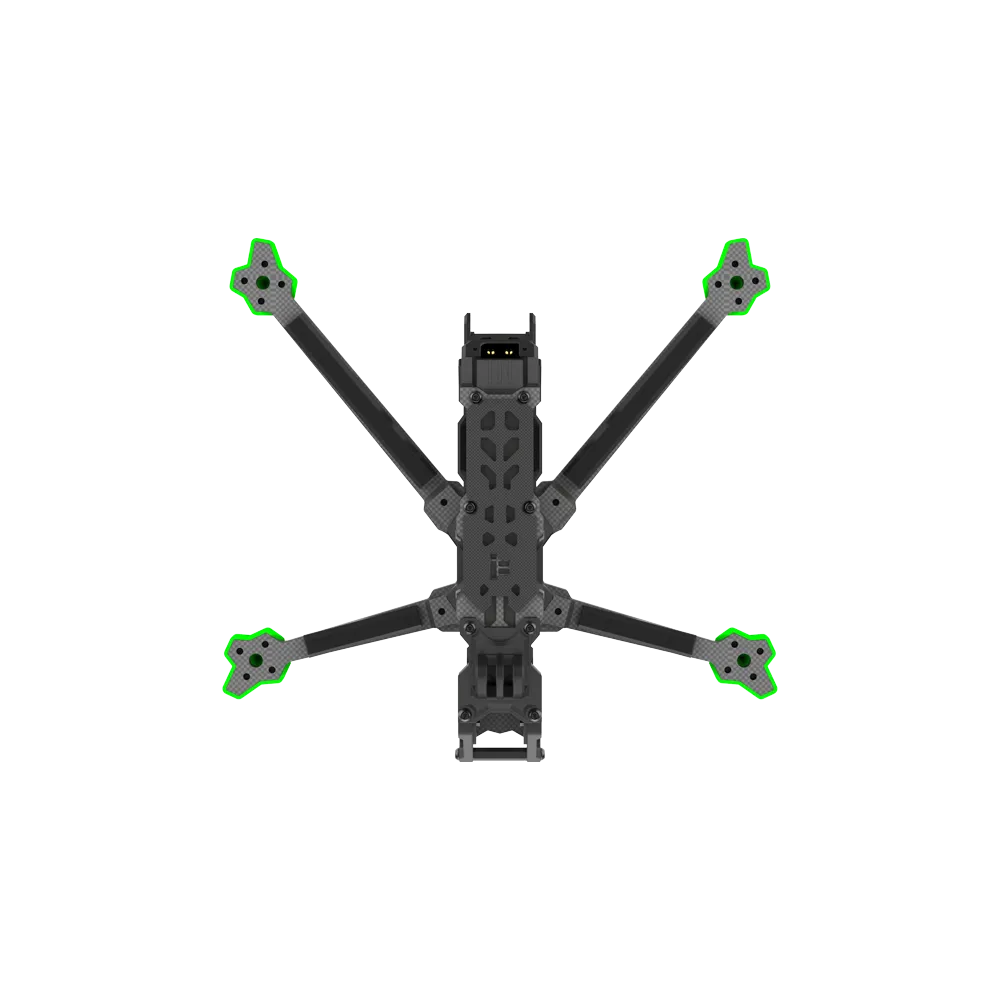

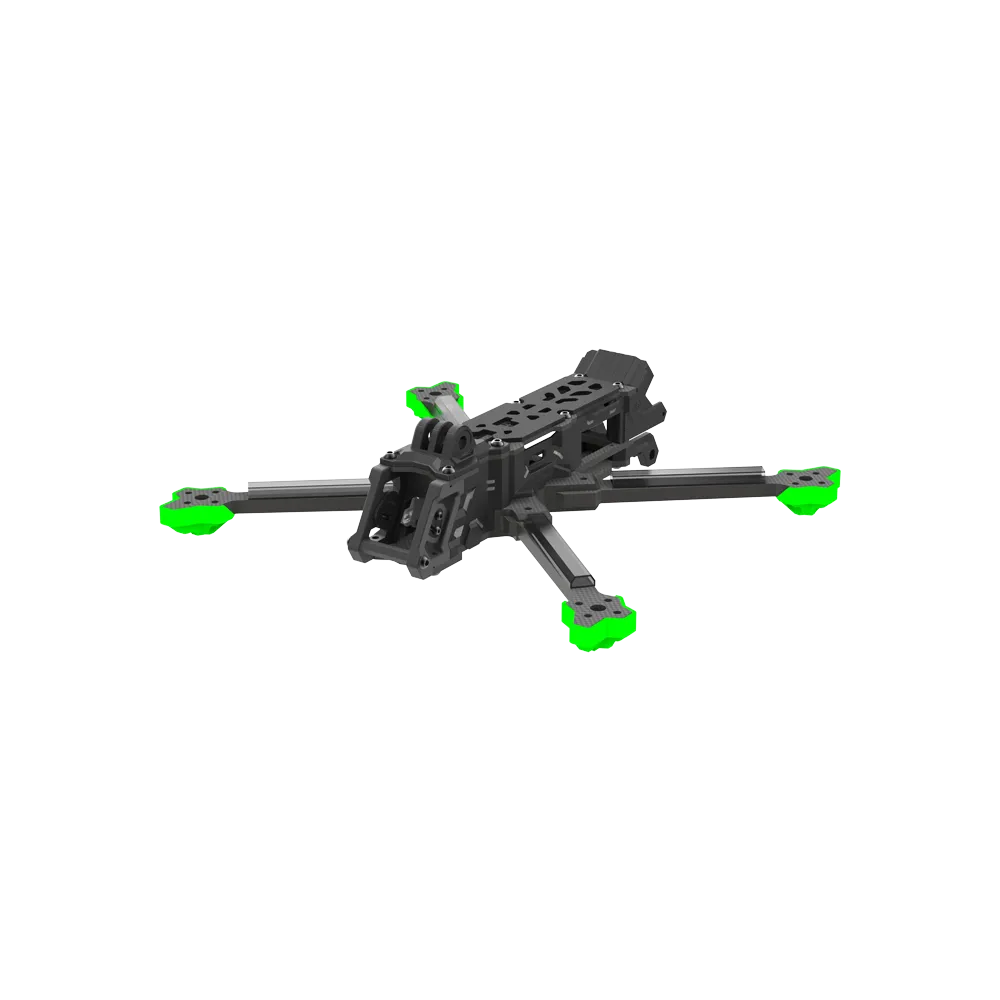

iFlight Nazgul Evoque F6 V2 Frame Kit – 6 Inch

$88.99

The iFlight Nazgul Evoque F6 V2 Frame Kit combines a robust 6-inch DeadCat geometry with enhanced structural rigidity to deliver prop-free cinematic HD video.

Built specifically for DJI O3 Air Unit integration and long-range exploration, it offers smooth handling, low vibration, and maximum electronic protection.

Add to Cart
iFlight Nazgul Evoque F6 V2 Frame Kit - 6 Inch
iFlight Nazgul Evoque F6 V2 Frame Kit - 6 Inch
$88.99

Free worldwide shipping on all orders over $199

  • Licensed by top brands to ensure product quality
  • Hassle-free 60 days warranty
  • 30 days easy returns
  • U.S. customers: tax is Trump’s Tariffs (10%)
Guaranteed Safe Checkout

Designed for long-range exploration and ultra-smooth cinematic HD recording, the iFlight Nazgul Evoque F6 V2 Frame Kit brings 6-inch propeller capability to the legendary Evoque platform. Featuring a DeadCat (DC) geometry, it completely removes propellers from your camera’s view while maintaining balanced, precise flight stability even in challenging wind conditions.

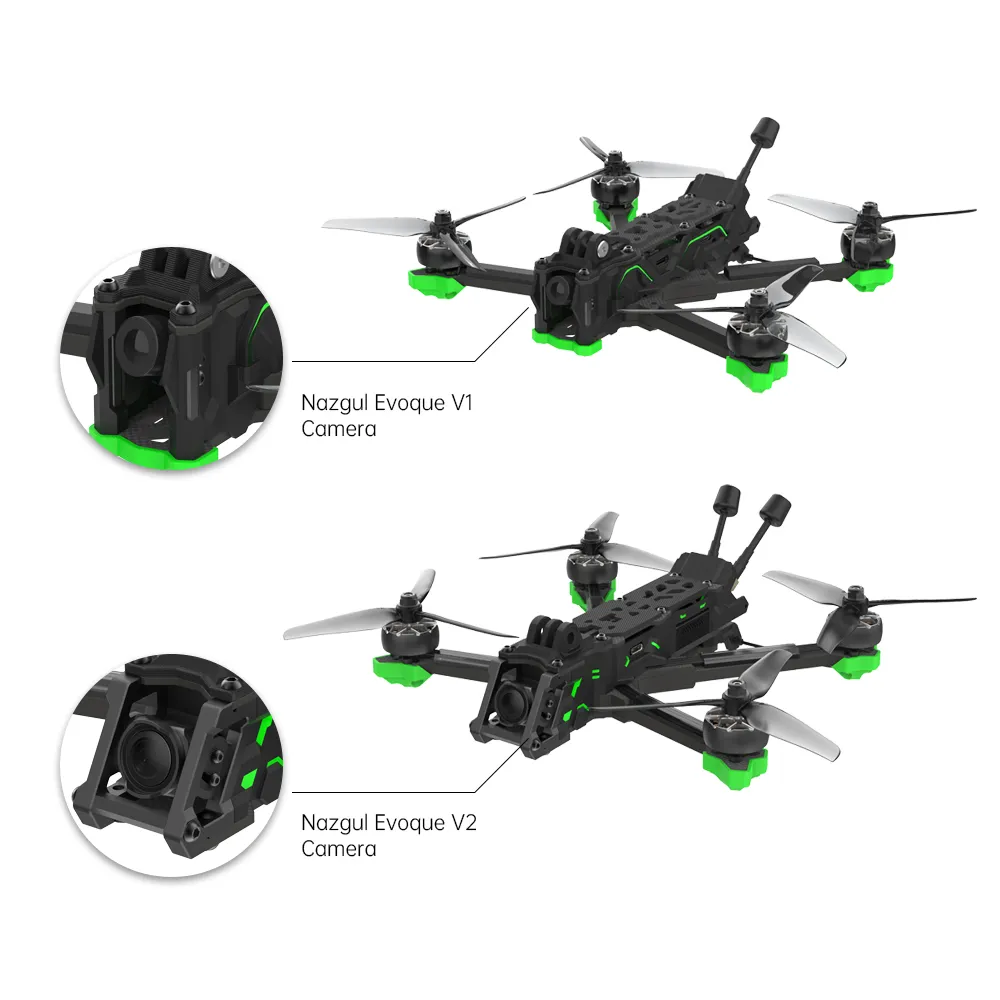

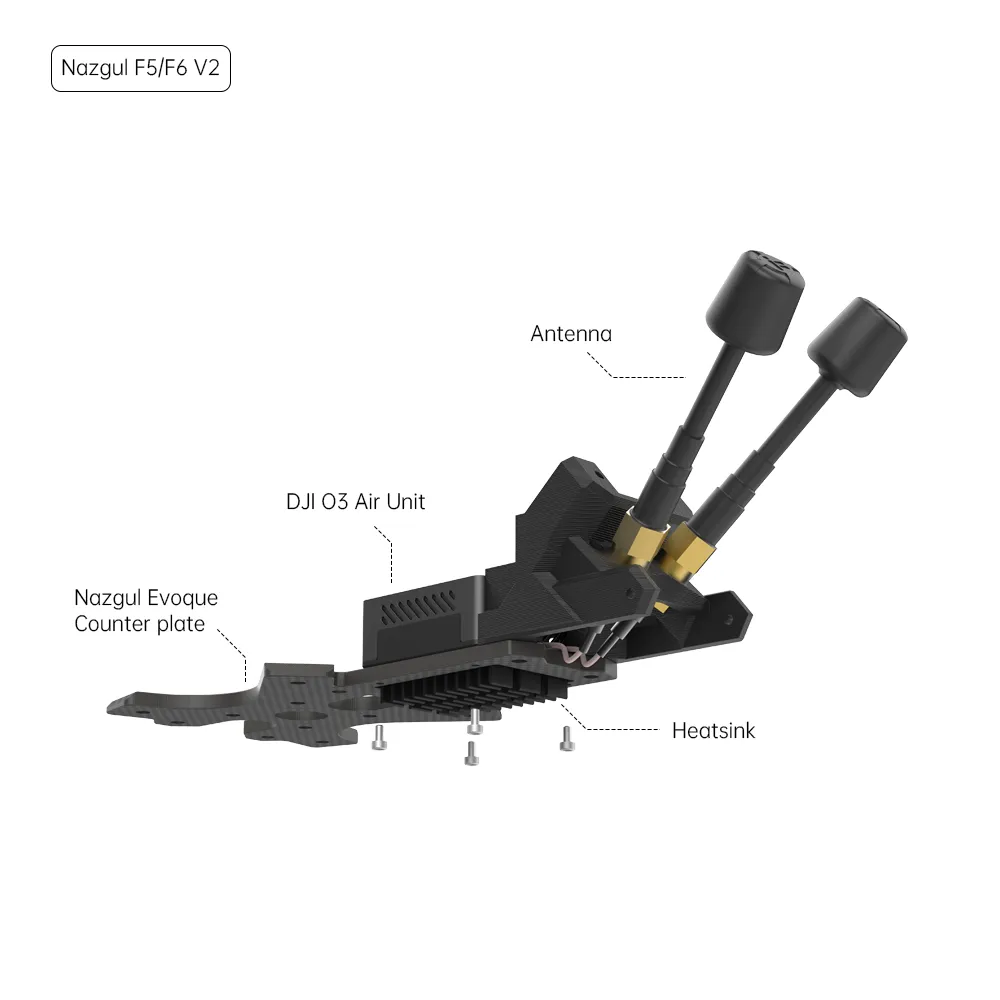

The V2 iteration introduces reinforced carbon fiber arms, upgraded TPU side panels, and improved airflow channels for optimal heat dissipation on digital HD video transmitters. Designed to seamlessly fit the DJI O3 Air Unit and other HD or analog setups, the frame provides isolated 20x20mm and 30.5×30.5mm mounting options, integrated anti-spark power cable routing, and full TPU crash protection, making it the ultimate 6-inch frame for long-distance freestyle and HD filming.

Package Includes

  • 1 x Evoque F6 V2 Frame Kit

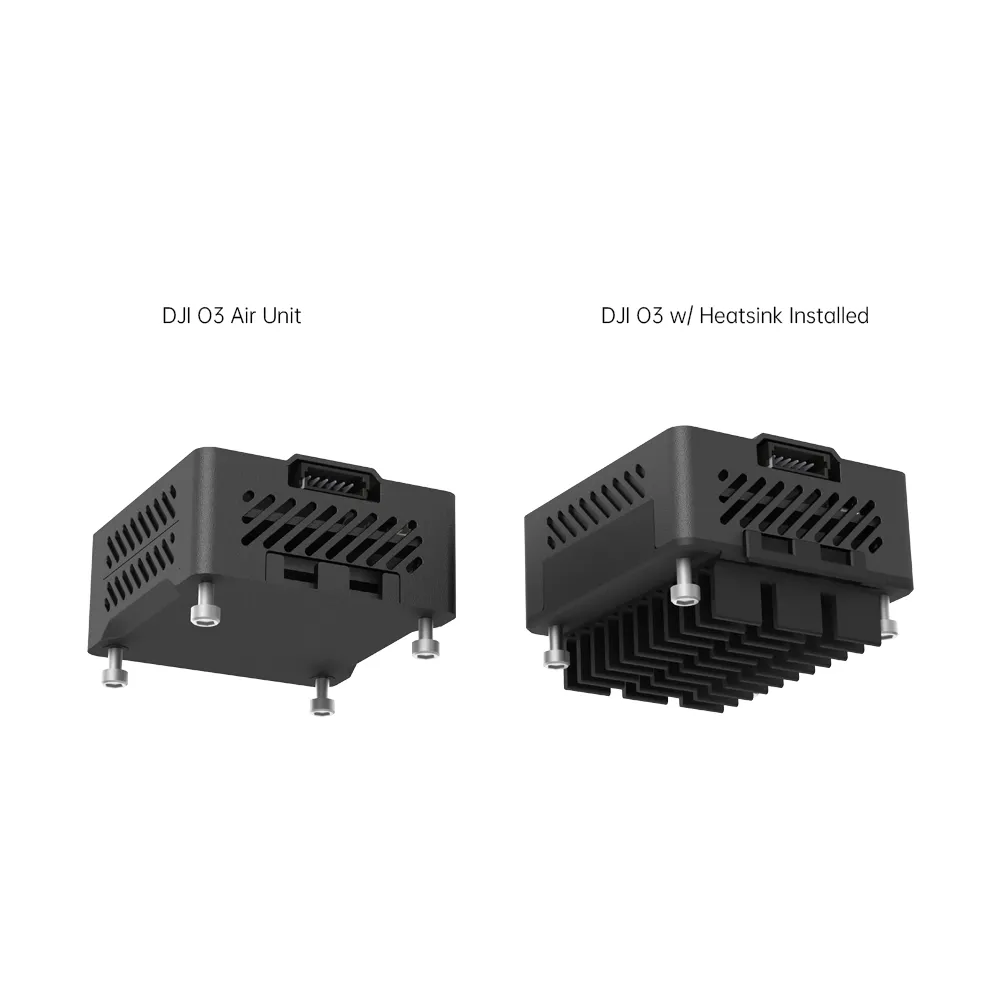

  • 1 x O3 Air Unit Heatsink
  • 2 x O3 IPEX to RP-SMA Antenna Pigtails
  • 1 x O3 Dual Antenna TPU
  • 1 x GoPro TPU Base Mount
  • 1 x Screw Bag
  • 4 x TPU Armguard
  • 1 x Front Bumper TPU
  • 1 x Rear Bumper TPU
  • 2 x Anti-slip Battery Pad
  • 2 x Battery Strap (20*250mm)
  • 1 x Battery Strap(20*250mm)

Additional information

Weight 256 g
Brand: No selection

iFlight

Specs

  • Product Name: Evoque F6 V2 Frame Kit
  • Frame wheelbase: 255mm (Squashed X) / 262 mm (DeadCat)
  • Frame Dimension: L196*W164*H36 mm (Squashed X) / L209*W162*H36 mm (DeadCat)
  • Frame Body Dimension: 36mm
  • Arm Thickness: 6mm
  • Bottom Plate Thickness: 3mm
  • Top Plate Thickness: 2mm
  • Upper Plate Thickness: 3mm
  • Camera Plate Thickness: 3mm
  • Max Flight Stack Height: 22mm
  • Max VTX Height: 23mm
  • FC Mounting: 20*20/Φ3mm
  • Motor Mounting: 16*16/Φ3mm
  • VTX Mounting:  25.5*25.5 φ1.6mm
  • Weight: 252g/256g
