New!

iFlight Borg H7 Stack 60A 4-IN-1 ESC 4-6S

Name: iFlight Borg H7 Stack 60A 4-IN-1 ESC 4-6S - YohoRC
Brand: iFlight
Price: 109.59 USD
Availability: InStock

$109.59

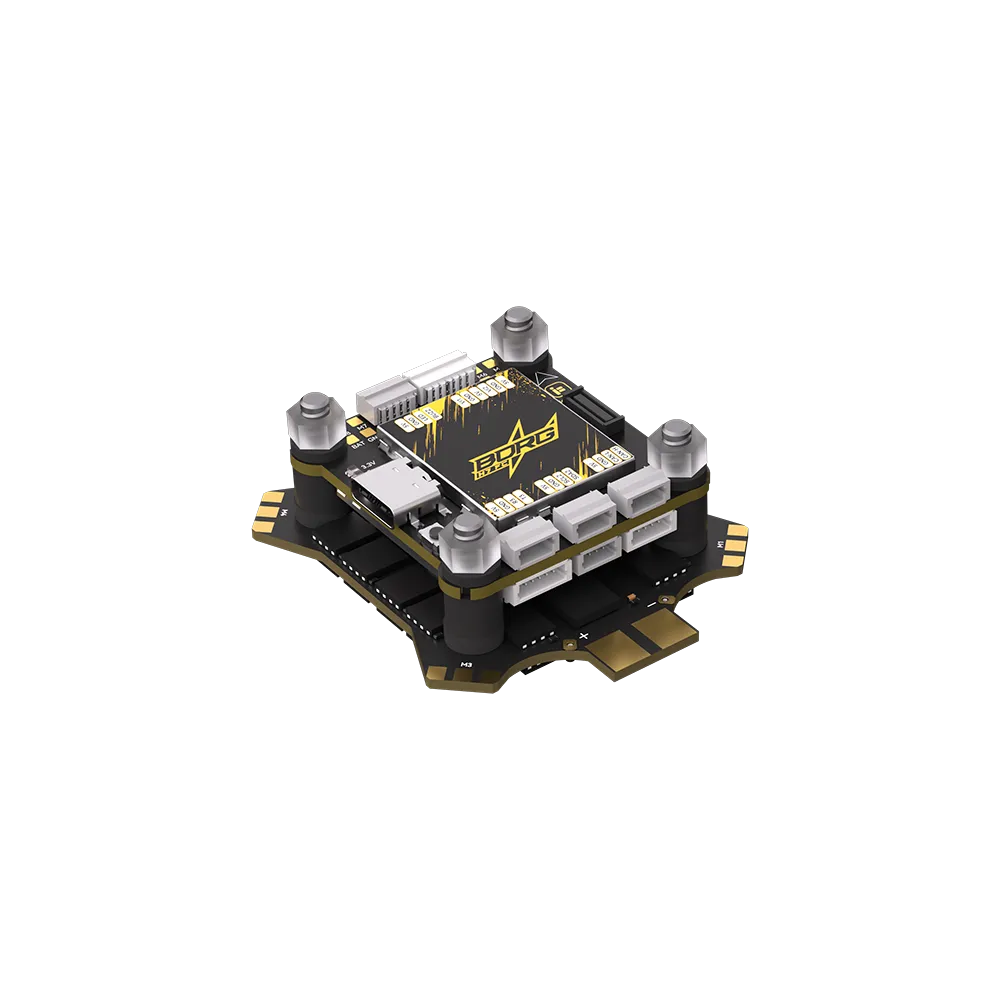

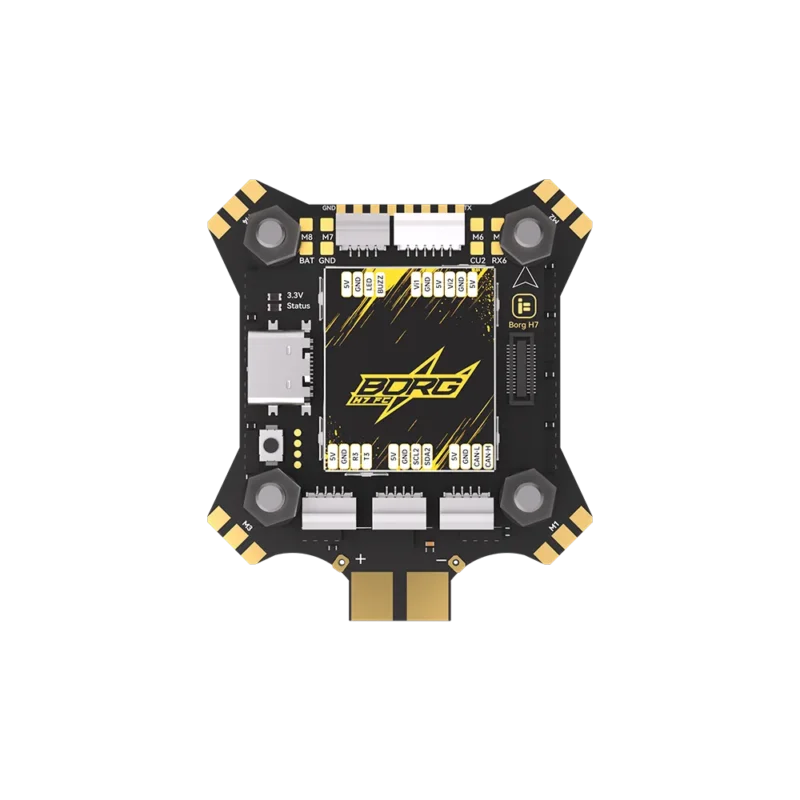

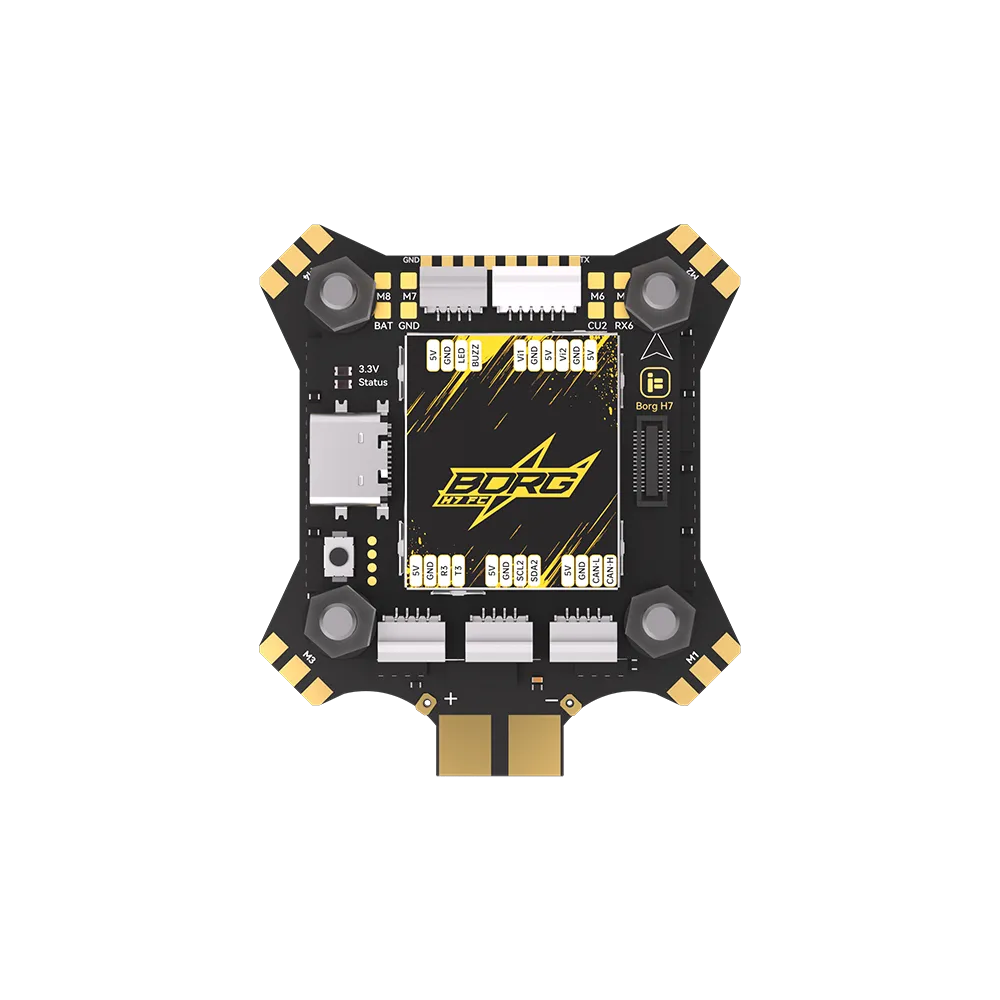

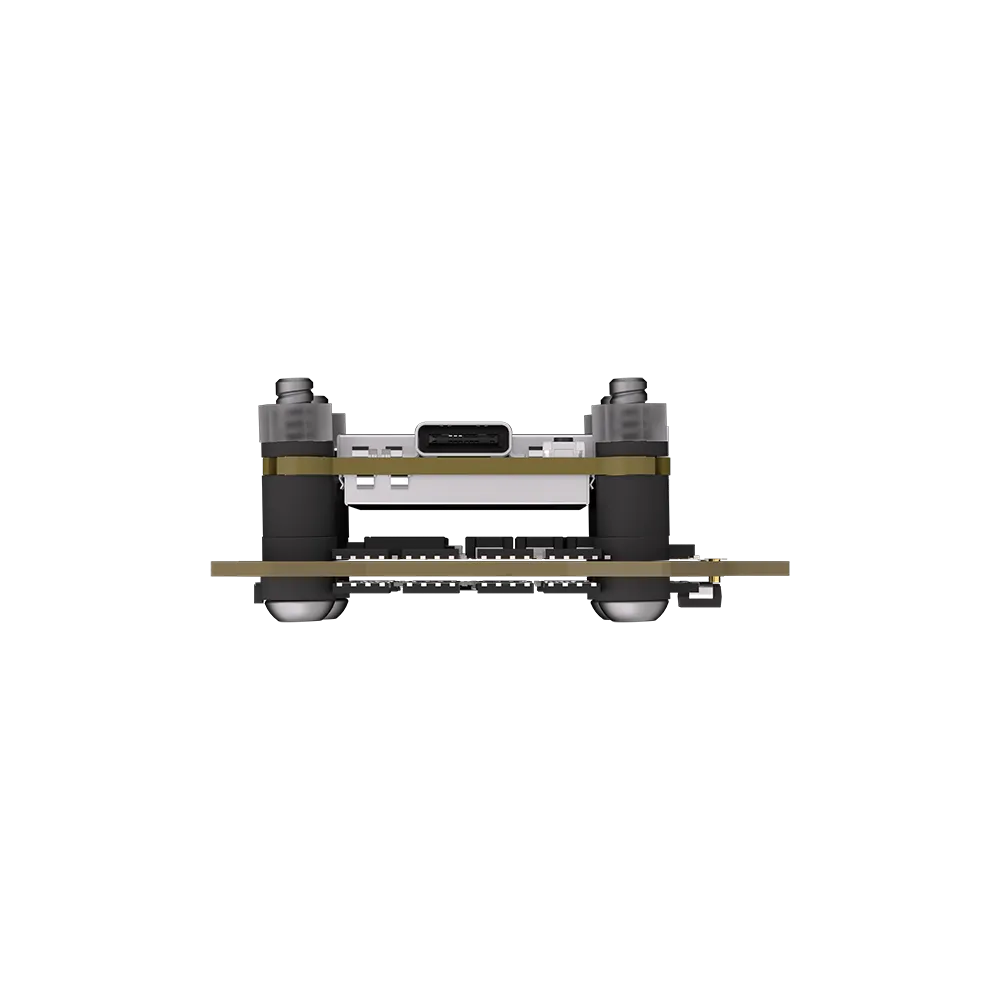

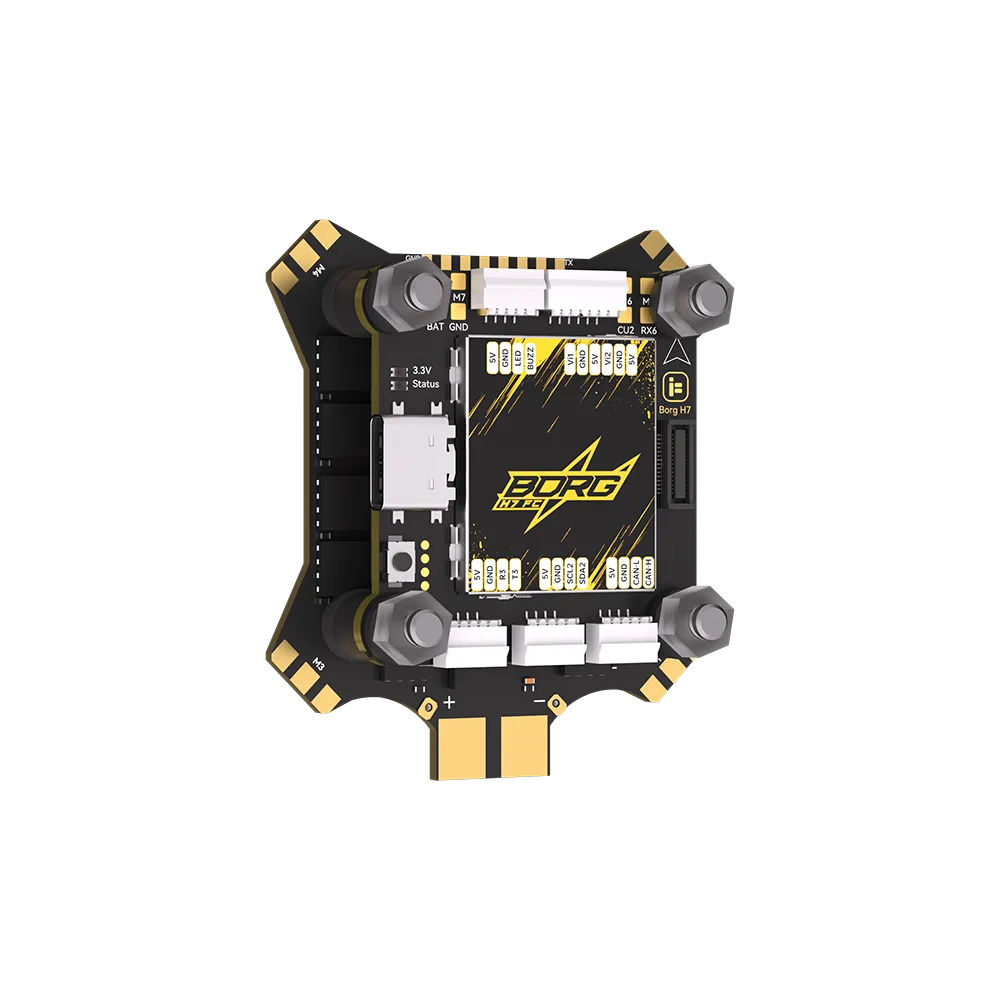

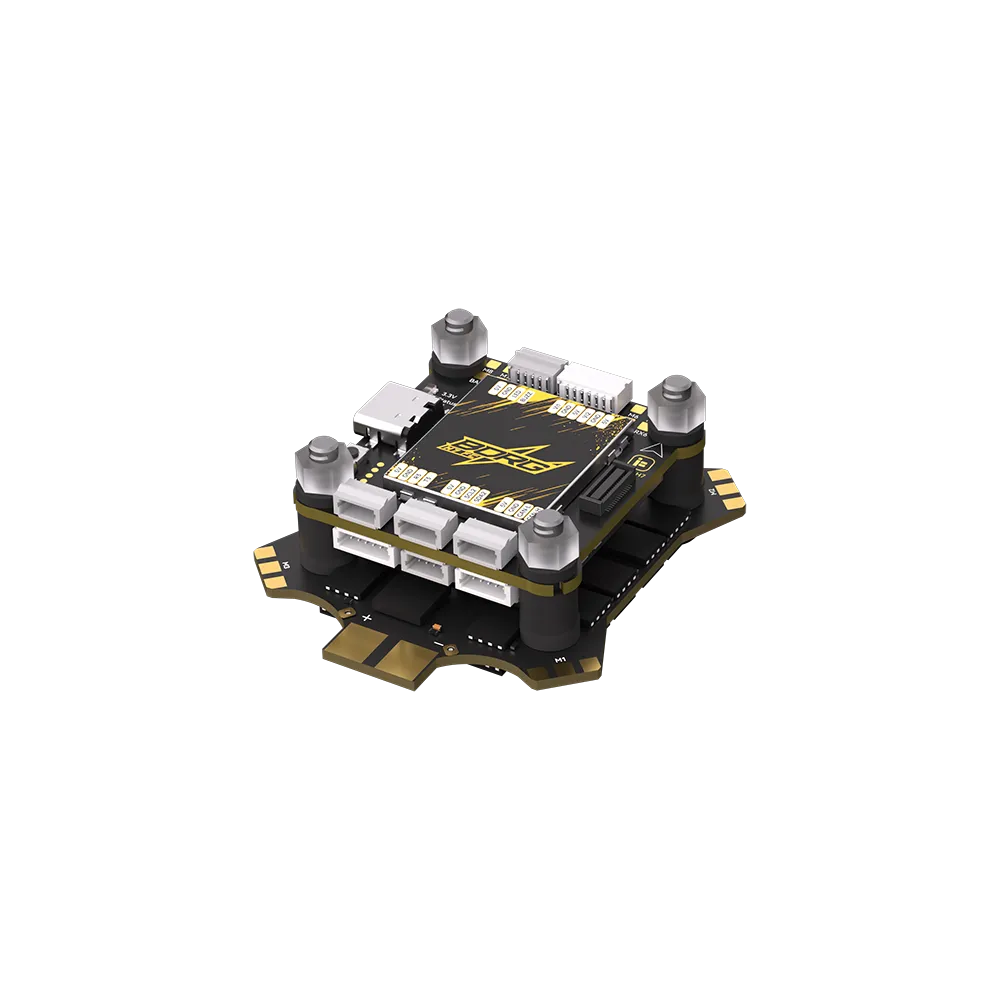

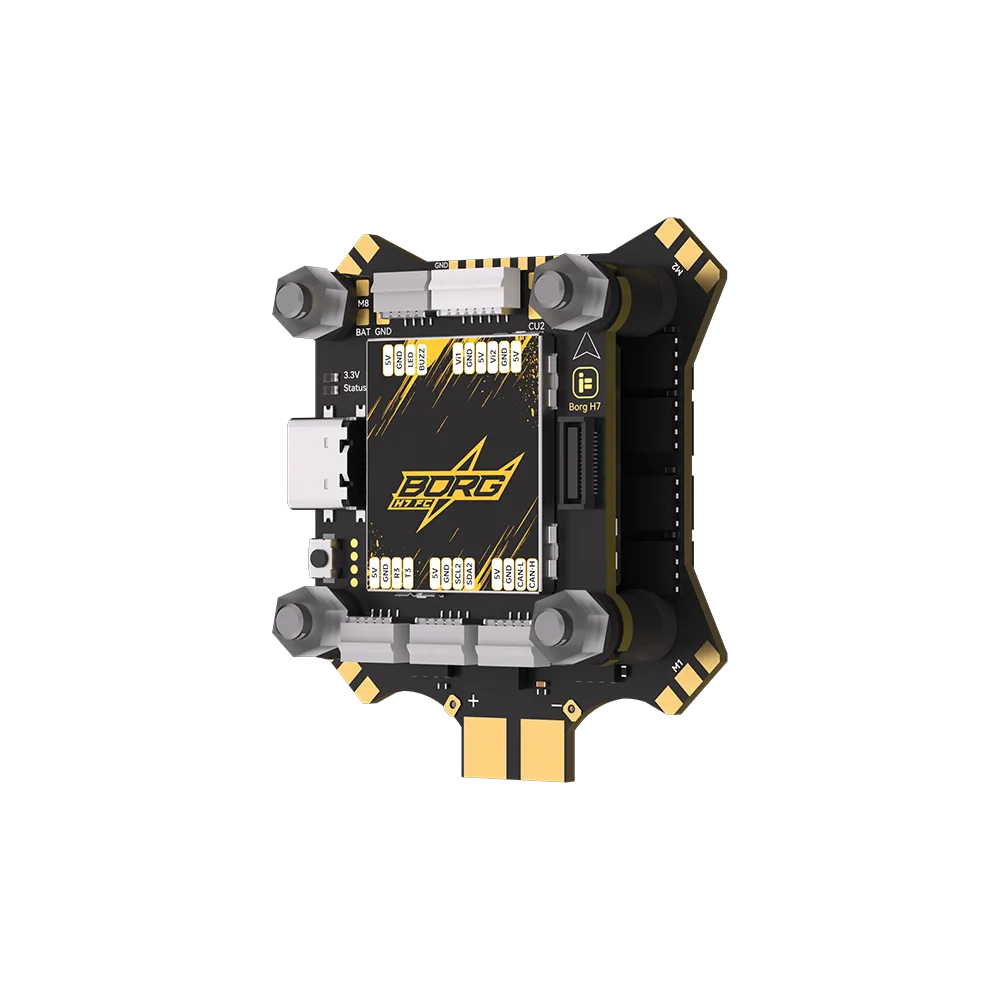

The iFlight Borg H7 60A Stack combines an STM32H7 dual-gyro flight controller with a robust 32-bit 60A 4-in-1 ESC in a 30.5 x 30.5 mm layout.

Engineered for 4-6S power input and high-performance 5 to 10-inch builds, it features onboard anti-spark filtering, dual camera switching, and reliable FPC ribbon connections.

Designed for high-performance 5 to 10-inch FPV drones and heavy-duty builds, the iFlight Borg H7 Stack pairs advanced processing power with industrial-grade current handling. The Borg H7 flight controller is driven by an STM32H743 MCU and dual ICM42688 gyros, supporting 4–6S LiPo input, dual camera inputs, 32MB blackbox logging, and a switchable 12V VTX power BEC.

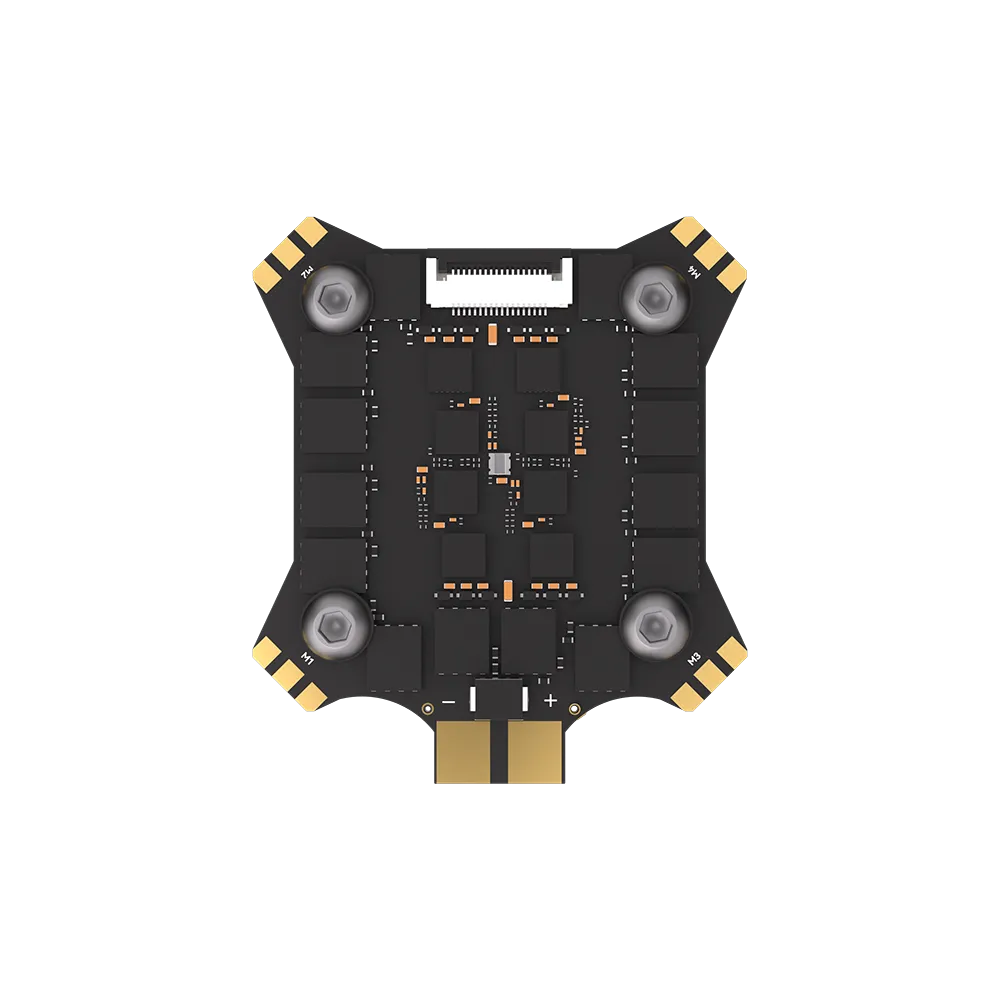

The accompanying Borg 60A 32-bit 4-in-1 ESC features an 8-layer high-current PCB, onboard anti-spark filtering, and built-in high-polymer capacitors that eliminate the need for external caps on standard 5-inch setups. Linked securely via a low-profile FPC ribbon cable, this high-performance stack delivers lightning-fast telemetry, buttery-smooth bidirectional DShot support, and rock-solid reliability under intense flight demands.

Package Includes

1 x Borg H7 Flight Controller
1 x Borg 60 ESC
1 x Cable set
4 x Silicone grommets

Additional information

Weight	17 g
Brand	iFlight

Specs

Flight Controller Specifications

Input voltage: 4-12S; Support LIHV battery
MCU: STM32H743VIH6
Gyro: ICM42688*2
Barometer: SPA06-003
OSD Chip: AT7456E（LGA）
Flash: 32MB (Blackbox flash)
UARTS: 7
Motor outputs: 8
I2C serial: I2Cx2
VTX protocol: support DJI MSP/Smartaudio/IRCTramp/HDZero
LED controller: Yes
Beeper pad: Yes
Betaflight Firmware target: IFLIGHT_BORG_H7
Mount pattern: 30.5×30.5φ4
Dimensions: 37.5×37.5mm±1
Weight: 17g±1
BEC: 5V 2.5A, 12V 2A (12V with VTX switch)

ESC Specifications

Product Name: Borg 60 ESC
Input Voltage: 4-6S(DC 14-26.1V); Support LIHV battery
Max. Continuous Current: 60A
Max. Burst Current: 65A (10s)
MCU: STM32G071N
Driver: FD6288
Firmware: BL32 (32bit ESC)
Target: IFLIGHT_BLITZ_G3 32.9
Current Sensor: Yes(1/200)
BEC: No
Telemetry: Supported
Bidirectional DSHOT: Supported
Dimensions: 52*45.5mm±1
Mounting Holes: 30.5*30.5φ4
Weight: 15.5g±1
Protocol: Supports DShot150/300/600, MultiShot, OneShot, etc.
