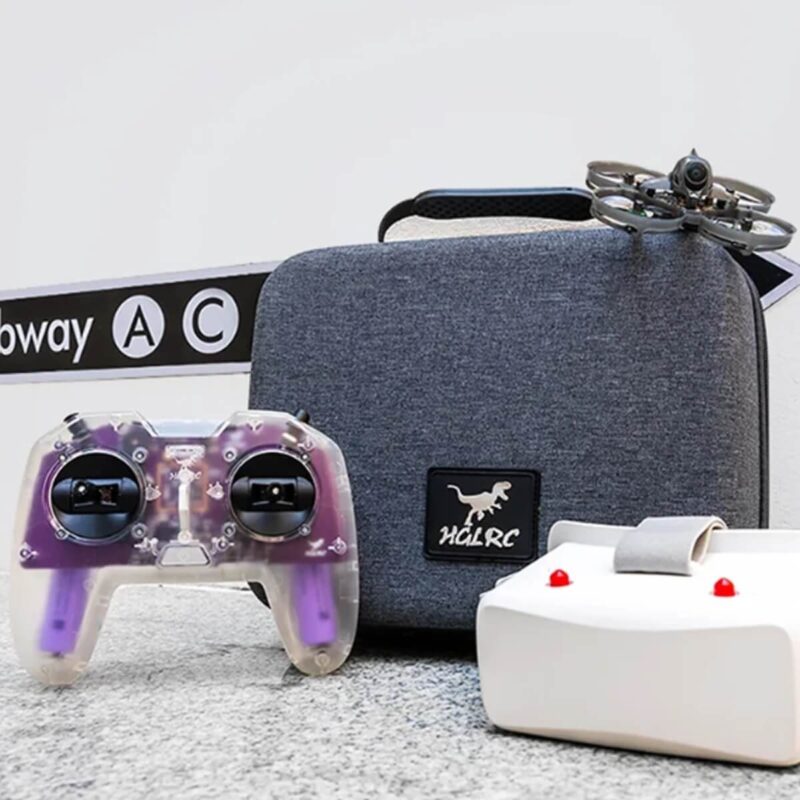

HGLRC RTF Petrel 75mm Whoop FPV Drone Kit – Mode 2 (Left Hand Throttle)

Specs

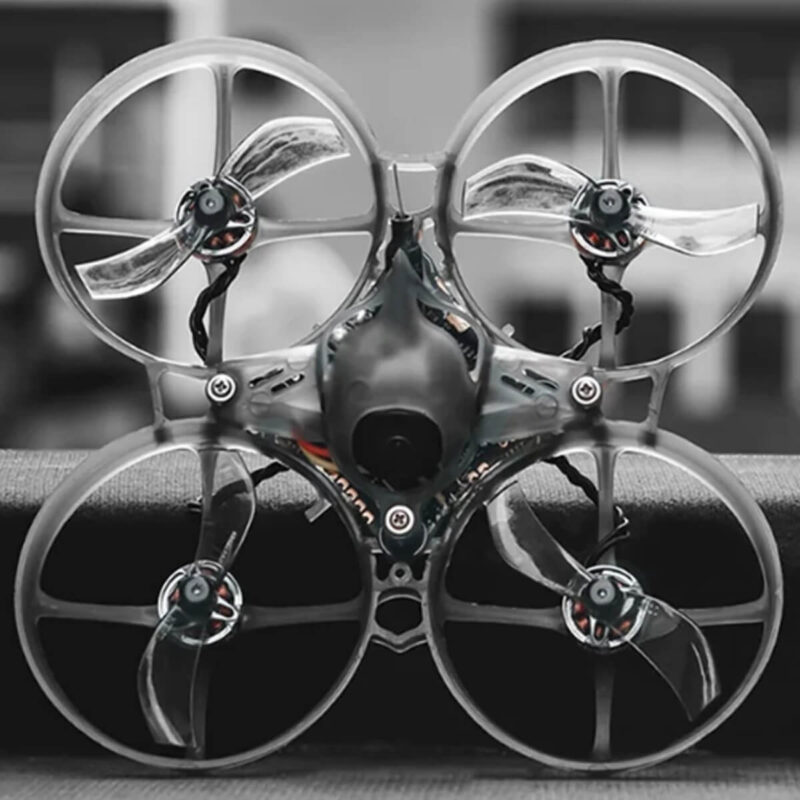

Petrel 75 Whoop

• Frame: Petrel 75Whoop rack
• Flight Controller: SPECTER 10A AIO
• MCU: STM32F411
• GYRO: ICM42688
• Built-in Video Transmission: 0-RCE-25-100-400mW(adjustable)
• Onboard ESC: Continuous Current: 10A
• Peak Current: 13A(10s)
• ESC Protocol: Dshot600, Oneshot, Multishot;
• ESC Firmware: Z_H_30/(Bluejay)
• Flight Controller Firmware: HGLRCF411SX1280V2
• Flight Controller Input Voltage: 1-2S 3.7v-7.4v (Lipo)
• Installation Hole Position: 25.5X25.5mm.M2
• Motor: SPECTER 0802 21000kv Motor
• Propeller: Gemfan 1610 2-blade Propeller
• ELRS Version Weight: 27±1g

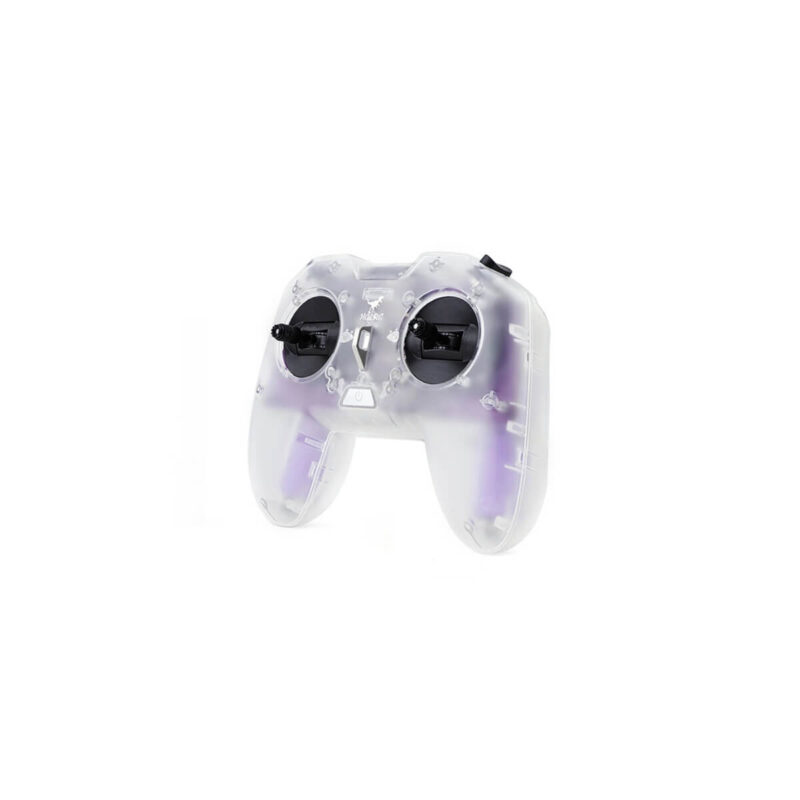

Remote Control

• Built-in ELRS: ELRS 2.4GHZ
• Built-in ELRS Refresh Rate: 250Hz
• Remote Control Sensor Type: Potentiometer sensor
• Antenna: Built-in Ipex1 Generation Copper Tube Antenna
• Working Voltage: 6-8.4v DC
• Remote Control Distance: Greater than 500m
• Output Interface:
• TX Module NANO Bin(Crsf Protocol)
• TYPE-C (only Charging and Firmware Flashing)
• 3.5MM Analog Trainer Port
• Battery: 18650 Flat Head Battery x2 (Need to be Installed by Yourself)
• Charging: TYPE-C Charging Current 1.2A The Charging Time is About 3-4 Hours
• Remote Control Channel: 8 Channels
• Bluetooth: Bluetooth 4.2
• ELRS Firmware Upgrade Method: WIFI or TYPE-C Plug Wire Brush
• ELRS Firmware Version: ELRS 3.0
• ELRS Firmware Name: DIY Devices 2.4 GHz DIY ESP32+E28 2.4GHz TX
• Weight: 195g (Excluding Battery)
• Size: 160mmx130mmx50mm (Excluding Remote Control)

Dongle

• Built-in ELRS Maximum Supported
• Frequency: 250hz
• Receiving Distance: More than 200m
• Binding Method: Quickly Power on and off Three Times to Enter Binding Mode
• Interface: USB TYPE-C+USB TYPE-A Double Plug
• Working Voltage: 5v
• ELRS Firmware Upgrade method: WIFI or USB Plug
• ELRS Firmware Version: ELRS 3.0
• ELRS Firmware Name: HGLRC 2.4 GHz HGLRC 2.4GHz RX
• External Receiver Support Protocol: Only Supports CRSF Protocol
• Weight: 9.5g
• Size: 74mmx21mmx12.5mm

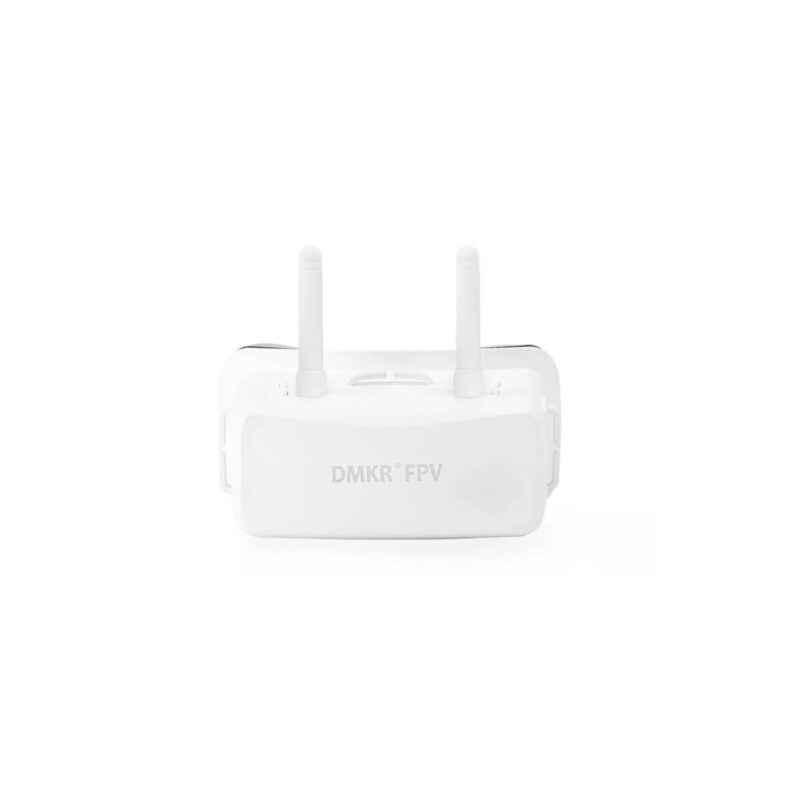

FPV Goggles

• Model: 5.8G FPV Video Goggles
• Screen Material: 3.0-inch IPS High-brightness Screen
• Display Resolution: 480*320
• Display Specifications: 16:9
• Field of View: 360 Degree Full Viewing Angle
• Backlight Brightness: 500cd/m2
• Video Delay: Less than 10 Milliseconds
• Antenna Head: Lnner Hole Antenna Head with RP-SMA Inner Needle Antenna
• Charging Port: Use TYRE-C to Charge the Built-in Battery
• Headphone Port: 3.5mm AVjack Supports Video Input and Audio and Video Output
• Menu language: Chinese and English
• Battery:
• Power Adapter: It is Recommended to use DC5V/1A or DC/5V2A Charging Head
• Battery Specifications: Built-in 3.7V/8 1200mAh Polymer Battery
• Power Consumption:
• *Operating Current 350 mA
• *Battery Charging Time is About 1 hour, Use Time is About 3 hours
• Size: 107mm/150mm*75mm
• Weight: 300g (Excluding Antenna)
