GEPRC RTF TinyGO FPV Tiny Whoop Kit – Racing

$299.99

  • Ready To Fly Kit, Including a GEPRC Fashion Fly bag, Portable and Light weight
  • High-Quality FPV Goggle, High definition 800 * 480px, sensitive 5.8G receiver
  • No Propellers in view, Anti-jamming VTX, NO Jello flight Footage, stable flight picture
  • Using TAKER F411 8Bit 12A FC system, reliable and stable
Add to Cart
GEPRC RTF TinyGO FPV Tiny Whoop Kit - Racing
$299.99

Free worldwide shipping on all orders over $90

  • Licensed by top brands to ensure product quality
  • Hassle-free 60 days warranty
  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch
Guaranteed Safe Checkout

GEPRC RTF TinyGO FPV Tiny Whoop Kit – Racing
$299.99
Buy in bulk or wholesale?

Please enable JavaScript in your browser to complete this form.
Name

The GEPRC drone family welcomes a new member: the “TinyGO” ready-to-fly kit, which is suitable for anyone who is new to scratch and indoor flying.

TinyGO currently has two versions: the Indoor version and the 4K professional version. 4K can record 4K 60fps video. The Kit contains a high-definition 800x480px FPV Goggle and the latest TinyRadio GR8 Remote Controller.

It supports 8 channels and is specially designed for indoor and novices. The remote control has a good feeling of control and It is lightweight and easy to carry. The good point is that you don’t need to carry heavy equipment. With our customized GEPRC Fly Bag, it’s very convenient to go to the field, travel, and Indoor flight.

TinyGO can be flight more than 6 minutes (Depending on flight habits). Its stable electronic equipment and extremely strong and tough frame material make the FPV very stable and durable for crash. There is an EVA protection foam around the frame, More elastic and hard to damaged and deformed.

TinyGO is carefully assembled and assembles by GEPRC team, with excellent performance. You can start a whole new journey and enter into FPV World, TinyGO will be the best choice for your first FPV Drone.

YouTube Influencer Review Results

Note: If you buy a drone only, If you have a new TinyRadio GR8 remote controller, it can be directly bound, and the old version of GEPRC GR8 remote controller should be bound by flashing the old version of the CLI.

Tinygo Racing version does not support SD card recording of the drone itself, but it can record video through Goggle.

Package Includes

  • 1x TinyGO TinyWhoop Kit – Racing
  • 1x TinyRadio ELRS 2.4G Transmitter
  • 1x GEPRC FPV RG1 Goggle
  • 1x GEPRC 1S LiHV 4.35v Charger
  • 4x GEPRC LiHV 4.35v 90C Battery
  • 1x Battery strap
  • 4x Gemfan 1636*4 Props(pairs)
  • 1x GEPRC Fly bag
  • 1x Screwdriver

Changelog

  • May 26, 2023: The flight controller changed from TAKER F411 8Bit 12A AIO without ELRS version to TAKER F411 8Bit 12A built-in ELRS version.
  • May 26, 2023: The remote controller changed from TinyRadio GR8 to TinyRadio ELRS 2.4G.
  • December 16, 2022: The flight controller changed from GEP-12A-F4 to TAKER F411 8Bit 12A FC.
  • December 16, 2022: VTX changed from 5.8G 25~200mW VTX to RAD Whoop 5.8G 25~400mw VTX.
  • January 12, 2022: TinyGo shipped from today are the new remote controller, the new charger version.

Additional information

Weight 150 g
Dimensions 300 × 200 × 100 mm
Brand: No selection

GEPRC

Options: No selection

Mode1 – Right Throttle, Mode2 – Left Throttle

Specs

Specifications of TinyGo 4K

  • Camera: Loris 4K
  • Image Sensor: 1/2.7″ CMOS sensor
  • Horizontal: 800TVL
  • TV System: NTSC/PAL changeable
  • Video Resolution: 1080P@60fps / 1080P@90fps / 2.7K/60FPS 4K/30FPS 4K/60FPS [REAL 3.5K/60FPS)
  • Power Input: DC 4.5-20V
  • FPV FOV: 165°
  • Recording FOV: 170°
  • Mini Illumination: 0.01lux
  • Lens: 1.8mm Lens
  • Working Current: 380mA@5V/160mA@12V (low consumption)
  • OSD Menu: Yes (Support Voltage Display)
  • Video Files: MOV
  • Audio: Support
  • Electronic Shutter : PAL : 1/50-100,000 NTSC : 1/60-100,100
  • Video Output: CVBS

Configuration

  • Frame: GEP-TG16
  • Motor to Motor: 79mm
  • FC: TAKER F411 8Bit 12A
  • MCU: STM32F411
  • IMU: 42688-P
  • Blackbox: 16Mb
  • OSD: BetaFlight OSD w/ AT7456E chip
  • ESC: 8Bit 12A
  • VTX: RAD Whoop 5.8G 25~400mw VTX
  • Camera: Runcam Nano2/Caddx Loris 4K 60fps
  • Propeller: GEMFAN 1636*4 (4 pairs)
  • Motors: GR1102 10000Kv
  • Receiver: Integrated ELRS SPI receiver

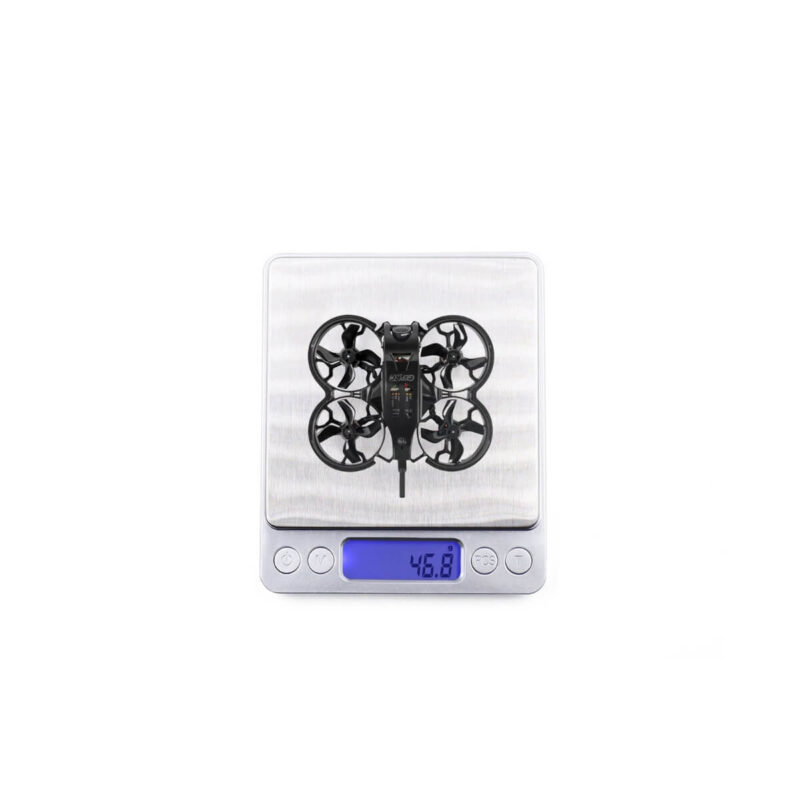

  • TinyGO 4K Weight: 54.8 Grams

Remote Controller

  • TinyRadio ELRS 2.4G Remote Controller
  • Radio Frequency: 2.4GHz
  • Radio Frequency: 2.4GHz
  • Range: 1000+ meter
  • Channel: 8
  • Transmit Power:<500mW
  • Antenna Interface: SMA
  • Low Voltage Alarm: <6.6v
  • Batteries: 2 x 18650 Batteries (not included)

FPV Goggles

  • Resolution: 800*480px
  • Size of Screen: 4.3 inch
  • Whole Size: 155mmx144mmx113mm
  • In-built Batteries: 3.7v/2000mAh
  • Working Hours: 2.5 Hours
  • Weight: 314.6 Grams

FPV Batteries

  • Batteries Capacity: 530mAh
  • Voltage: 4.35v 1S1P
  • Discharge rate: 90C
  • Size: 61×16.7x7mm
  • Weight: 12.7 Grams
  • Interface: PH2.0

Charger

  • Input Power: 5v(USB & Type C)
  • Full Charged Voltage: 4.35v
  • Output Current : 500mAh
  • Charging: It can charge 2 PCS 1s HV lipo 4.35v HP2.0/GNB27 plug batteries at the same time
