FlyFishRC M10QMC-5883L GPS Module w/Compass
$30.99

Free worldwide shipping on all orders over $90

  • Licensed by top brands to ensure product quality
  • Hassle-free 60 days warranty
  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch
Guaranteed Safe Checkout

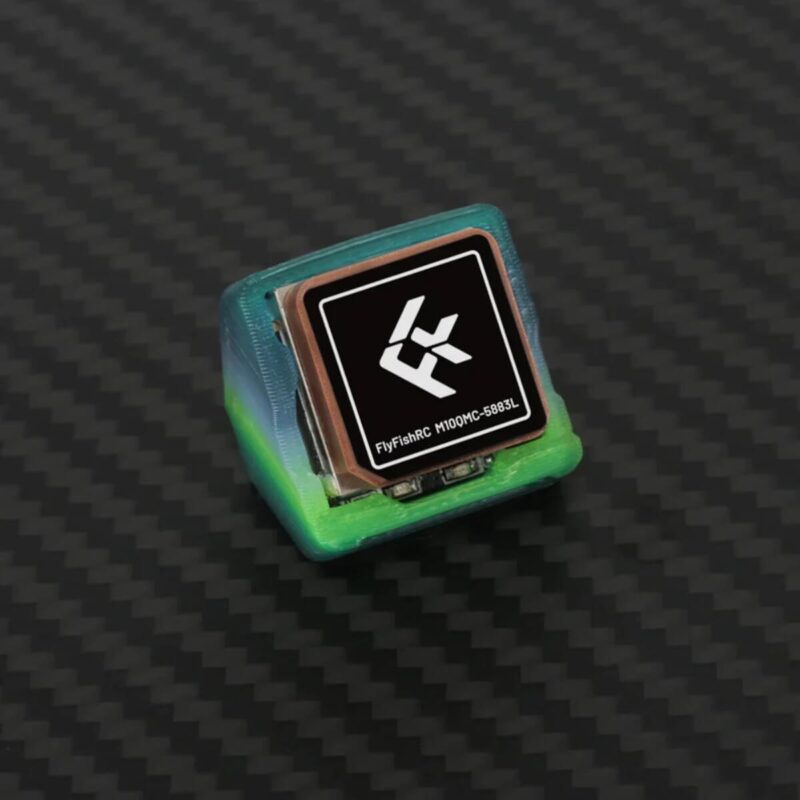

The FlyfishRC-M10QMC is a small size, fast positioning, easy-to-use GPS. It adopts 18*18mm RHCP ceramic patch antenna that provides excellent reception capability and a highly stable connectivity.

The built-in QMC5883L high-precision magnetometer provides precise azimuth pointing, and the u-blox10 generation chip allows subtle altitude changes to be skipped for more stability. Ideal for use with FPV drones, multi-rotors, fixed wing and other model products.

Package Includes

  • 1 x FlyFishRC M10QMC GPS Module
  • 1 x SH1.0-6Pin Cable
  • 1 x SH1.0 Connector
  • 1 x GPS Manual

Additional information

Weight 8.8 g
Dimensions 20 × 20 × 11 mm

Specs

  • Frequencies: 72 channel
  • Refresh Rate: 10 Hz
  • Compass module: QMC5883L
  • Baud Rate：4800bps-115200bps (Default – 9600bps)
  • Sensitivity: Tracking: -162dBm， Capture: -160dBm，Cold Start：-148dBm
  • Accuracy:  Horizontal <2.5m average), SBAS < 2.0m average, Timepulse: RMS 30 ns
  • Cold start: <24s
  • Hot start: <2s
  • Maximum height: 50000m
  • Maximum speed: 500 m/s
  • Speed accuracy: 0.05 m/s
  • Maximum acceleration: ≦ 4G
  • Input Voltage: 3.3V-5V，current 25mA
  • Output Connector: SH1.0-6P
  • Weight: 8.8g
  • GPS pin definition: RX/TX UART
  • Compass pin definition: SDA/SLA
  • GPS patch antenna size: 18 x 18 mm
  • Total dimensions：20 x 20 x 11 mm
