RUSHFPV Tiny Tank 25-350mW 5.8GHz Micro VTX w/ Smart Audio - U.FL $31.99
SpeedyBee TX800 25-800mW 5.8GHz VTX $33.99

RUSHFPV Tank Ultimate Mini 20×20 25-800mW 5.8GHz VTX – MMCX

$43.99

  • Compact Robust Design
  • Variable Output from 25 to 800mW
  • Pit Mode
Add to Cart
RUSHFPV Tank Ultimate Mini 20x20 25-800mW 5.8GHz VTX - MMCX
$43.99

Free worldwide shipping on all orders over $90

  • Licensed by top brands to ensure product quality
  • Hassle-free 60 days warranty
  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch
Guaranteed Safe Checkout

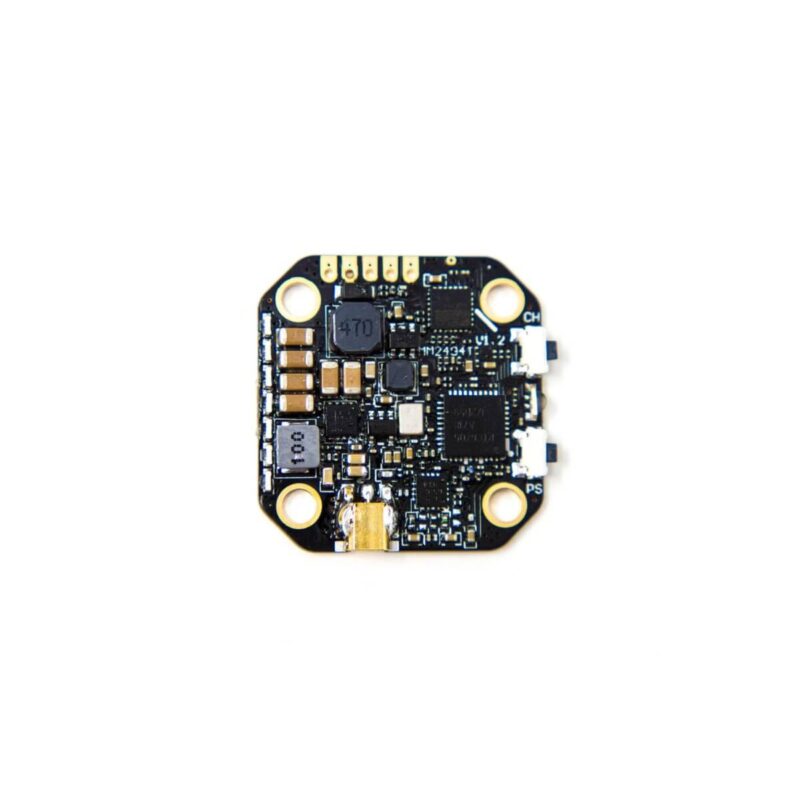

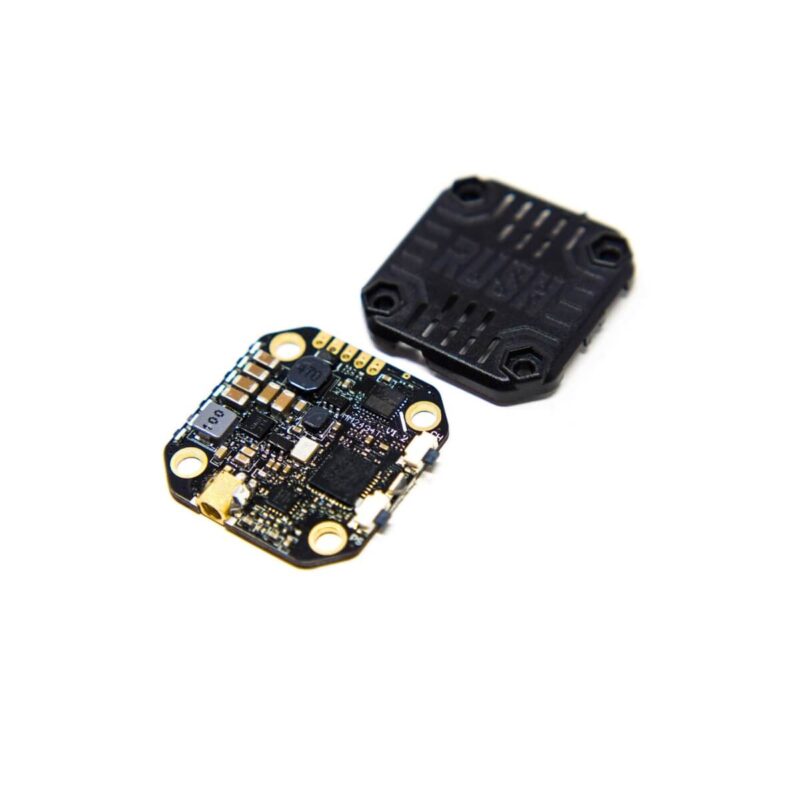

RUSHFPV brings their signature quality and style to the 20×20 form factor. Nothing but size was reduced from the 30×30 Tank Ultimate!

This little beast still cranks out 800mW of clean, stable video signal for crusing far or handling heavy obstructions.

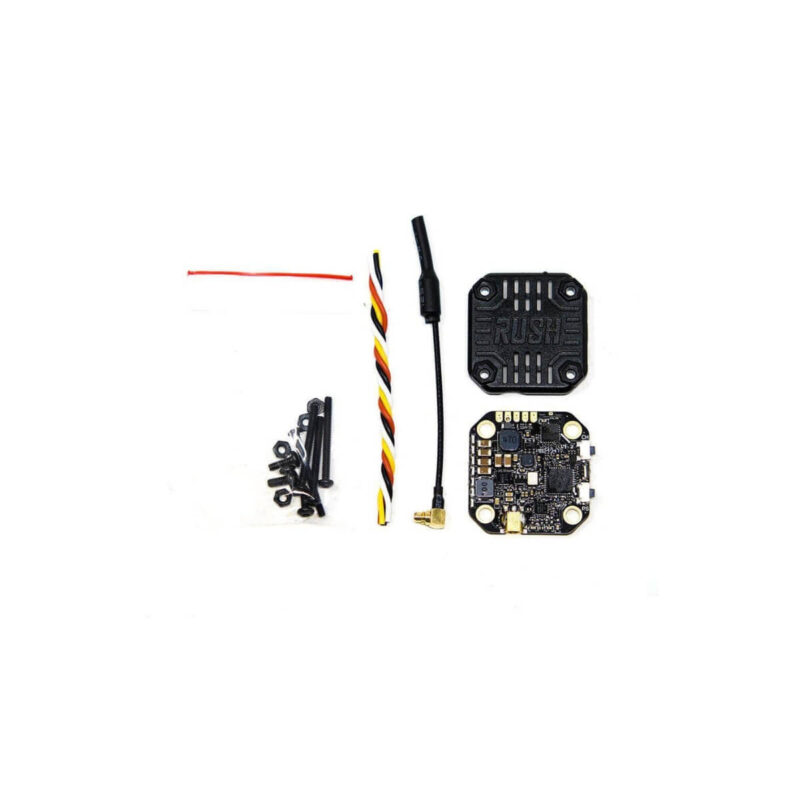

Package Includes

  • 1x Rush Tank Ultimate Mini 25-800mW 20×20 VTX – MMCX

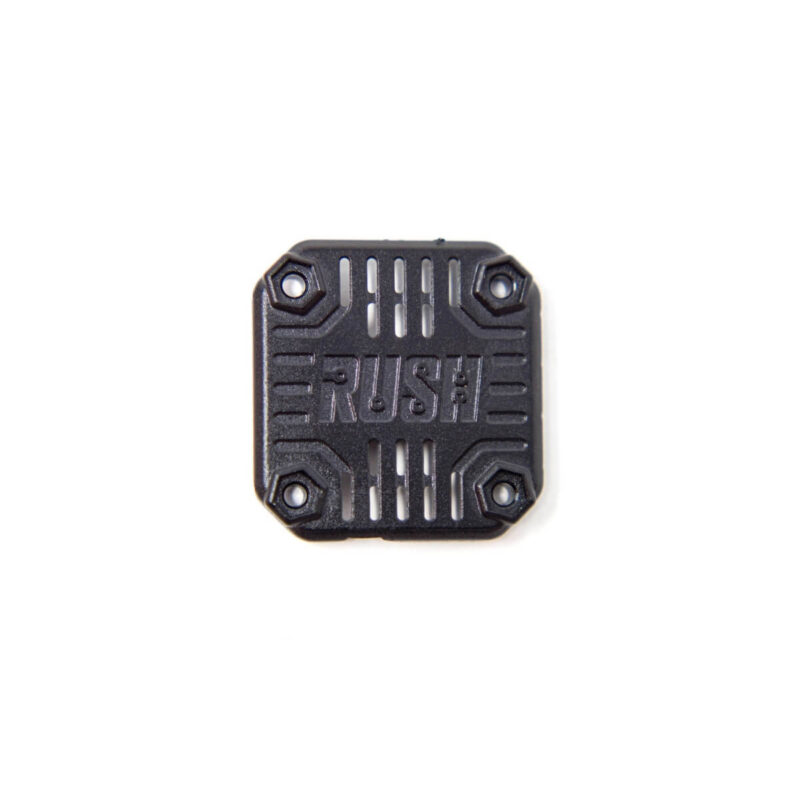

  • 1x Protective Cover
  • 1x MMCX Dipole Antenna
  • 1x Wire Set
  • 1x Hardware Set

Wiring Diagram

rushfpv tank ultimate mini 25 800mw 5 8ghz vtx wiring diagram

Additional information

Weight 5.4 g
Dimensions 28 × 28 × 3.3 mm
Brand

RUSHFPV

Specs

  • Input Voltage: 7-36V(2-8S)
  • Transmittion Power: PIT/25/200/500/800mW
  • On Board DC Output: 5V 1A Max
  • 12V Input Current:
  • 40mA@PITMODE 95mA@25mW,
  • 185mA@200mW 250mA@500mW,
  • 380mA@800mW
  • Channels: 48 RaceBand/LowRace
  • Feature: Available with External Mic
  • Mounting Dimensions: 20x20mm (VTX Holes M3, Shield Holes M2)
  • Dimension: 28x28x3.3mm
  • Weight: 4.46g (w/o Cover), 5.40g (w/ Cover)
