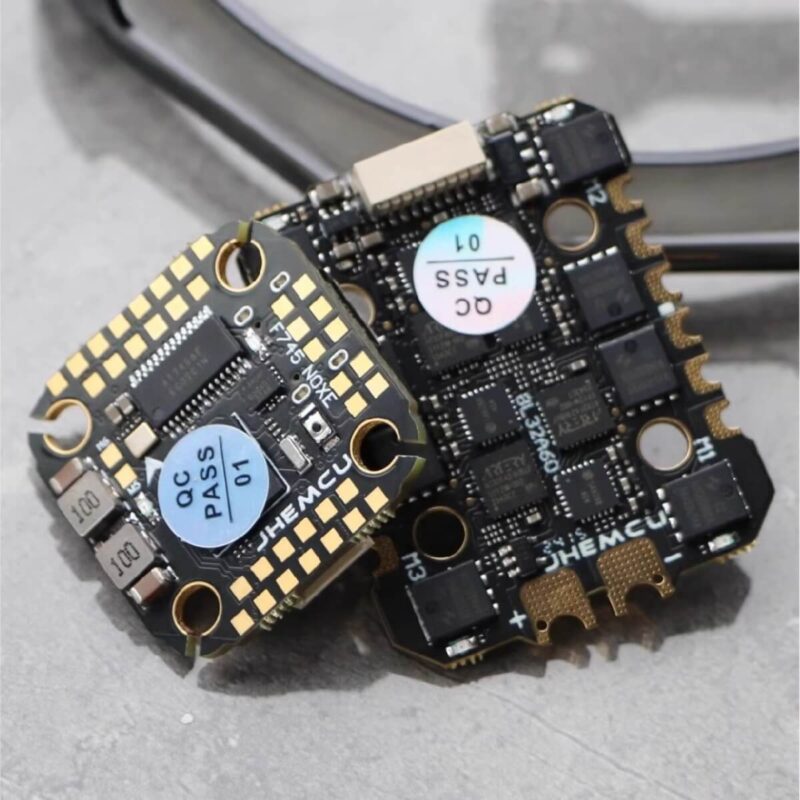

JHEMCU F7 Stack/Combo (F745 NOXE FC + 32Bit 45A/60A Mini 4in1 ESC)

Specs

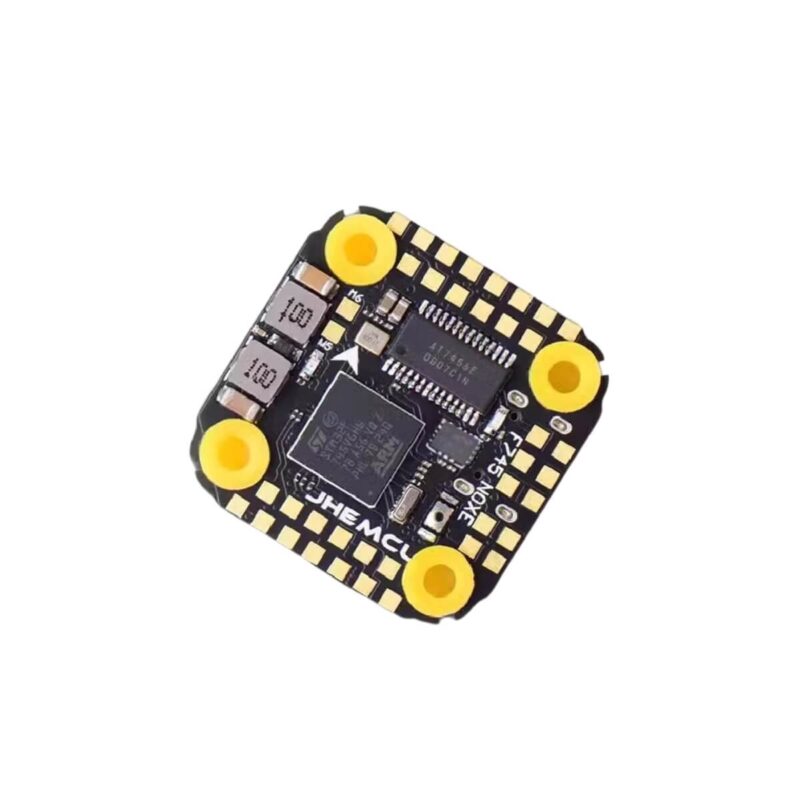

F745 NOXE FC

• Chip: STM32F745VG(216MHZ)
• Gyro: MPU6000/ICM-42688-P (From June 1, 2024, due to the shortage of MPU6000 chips, the gyroscope will be replaced with ICM-42688-P.)
• Barometer: SPL06
• OSD Chip: AT7456E
• Black Box: 16MB
• LED Program: Support
• BB Buzzer: Support
• Input Voltage: 3-6S
• I2C Connector: Support
• BEC: 5V/2.5A
• BEC: 10V/2.0A
• Cam Input: Support
• USART: UART1,UART2.UART3.UART4.UART6.UART7
• GPS: YES
• Compass: YES
• HD O3: YES
• USB: TYPE-C
• Current Port: Yes
• Voltage Sensor: Yes
• DFU Button: YES
• FC firmware: betaflight_4.5.0_JHEF745.HEX
• Instal hole: 20x20x4mm
• Board size: 29x29mm
• Weight: 4.8g

45A/60A Mini ESC

• Input Power: 3-6S(11-27V)
• Current: 45A/60A
• BEC: NO
• Instal Hole: 20x20mm, M4
• Size: 42.88x34mm
• Firmware: BL32/AM32 (From July 10, 2024, due to the cessation of operations of the BLHeli_32 team, all future ESC firmware will be changed to AM32.)
• Weight: 11g
